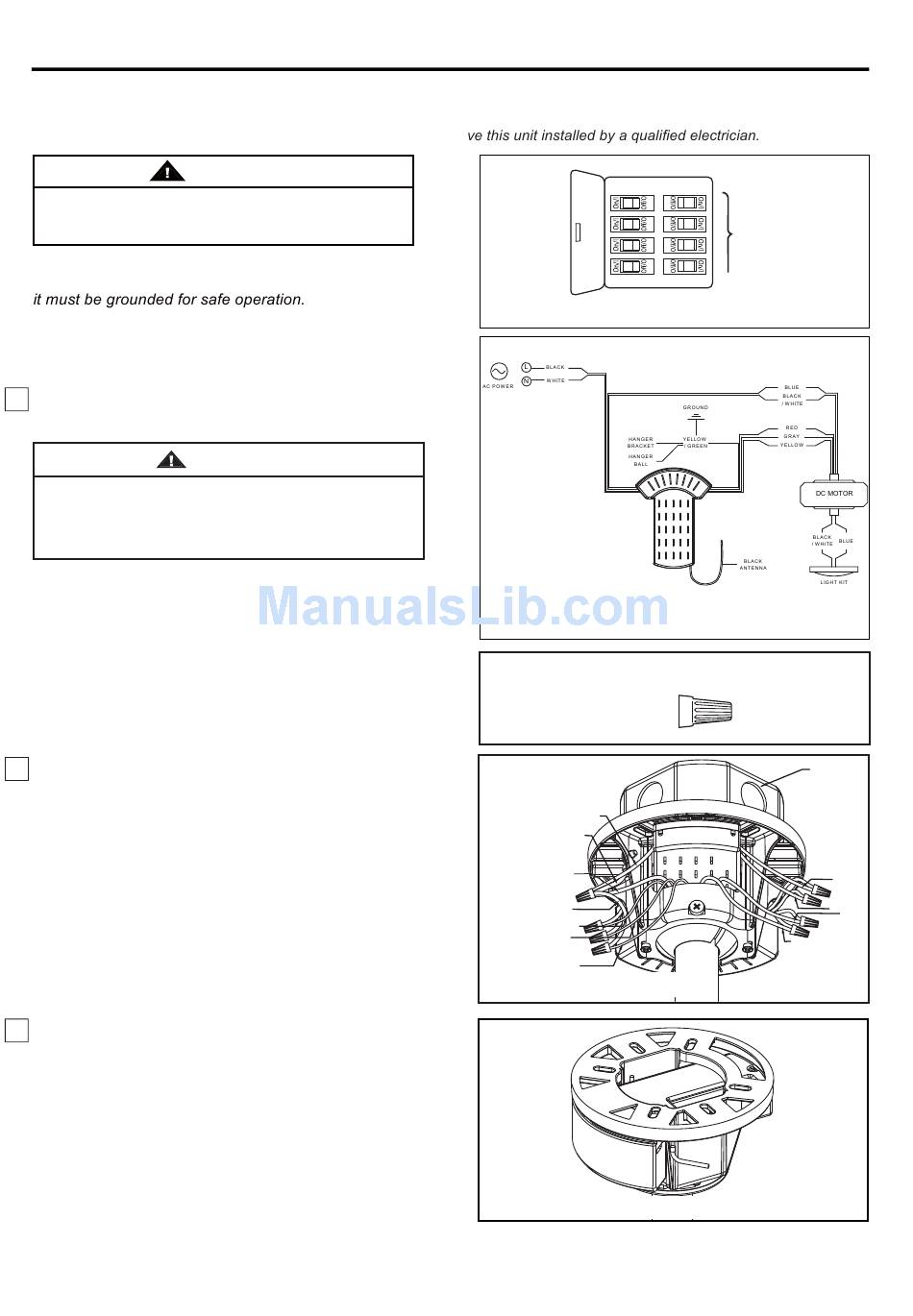

How To Wire Your Ceiling Fan - Fanimation Subtle Owner's Manual

NOTE: If fan or supply wires are different colors than indicated, ha
WARNING
To avoid possible electrical shock, be sure electricity
s i u t n r e d o f f t a h t e m a
(Figure 1).
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice, as
CAUTION: INCORRECT WIRE CONNECTION COULD
DAMAGE THIS RECEIVER.
1. Connect wires using connectors as shown in Figure 2.
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors. Do not operate fan until the blades are in
place. Noise and motor damage could result.
2. After connections have been made, turn leads
upward and carefully push leads into the outlet box,
with the white and green leads to one side of the
box and the black leads towards the other side.
The wires should be spread apart with the grounded
conductor and the equipment-grounding conductor
on one side of the outlet box and the ungrounded
conductor on the other side of the outlet box
(Figure 3).
3. Once the connection has been made, slide the receiver
into the hanger bracket, taking care not to pinch the wires.
The canopy comes up to cover the receiver and hanger
bracket. (Figure 4)

How to Wire Your Ceiling Fan

n i u f s e b o x b e o f e r w r i n i g
HARDWARE USED:
WIRE
CONNECTORS
GREEN-Ground Wire
From Ceiling
GREEN-Ground Wire
From Hanger Bracket
GREEN-Ground Wire
From Hanger Ball
GREEN / YELLOW
- Ground Wire From
Receiver
RED
GRAY
YELLOW
11
MAIN FUSE BOX
Figure 1
Figure 2
x 8
LISTED
OUTLET
BOX
BLACK & WHITE
Figure 3
Figure 4
WHITE
BLACK
BLUE
