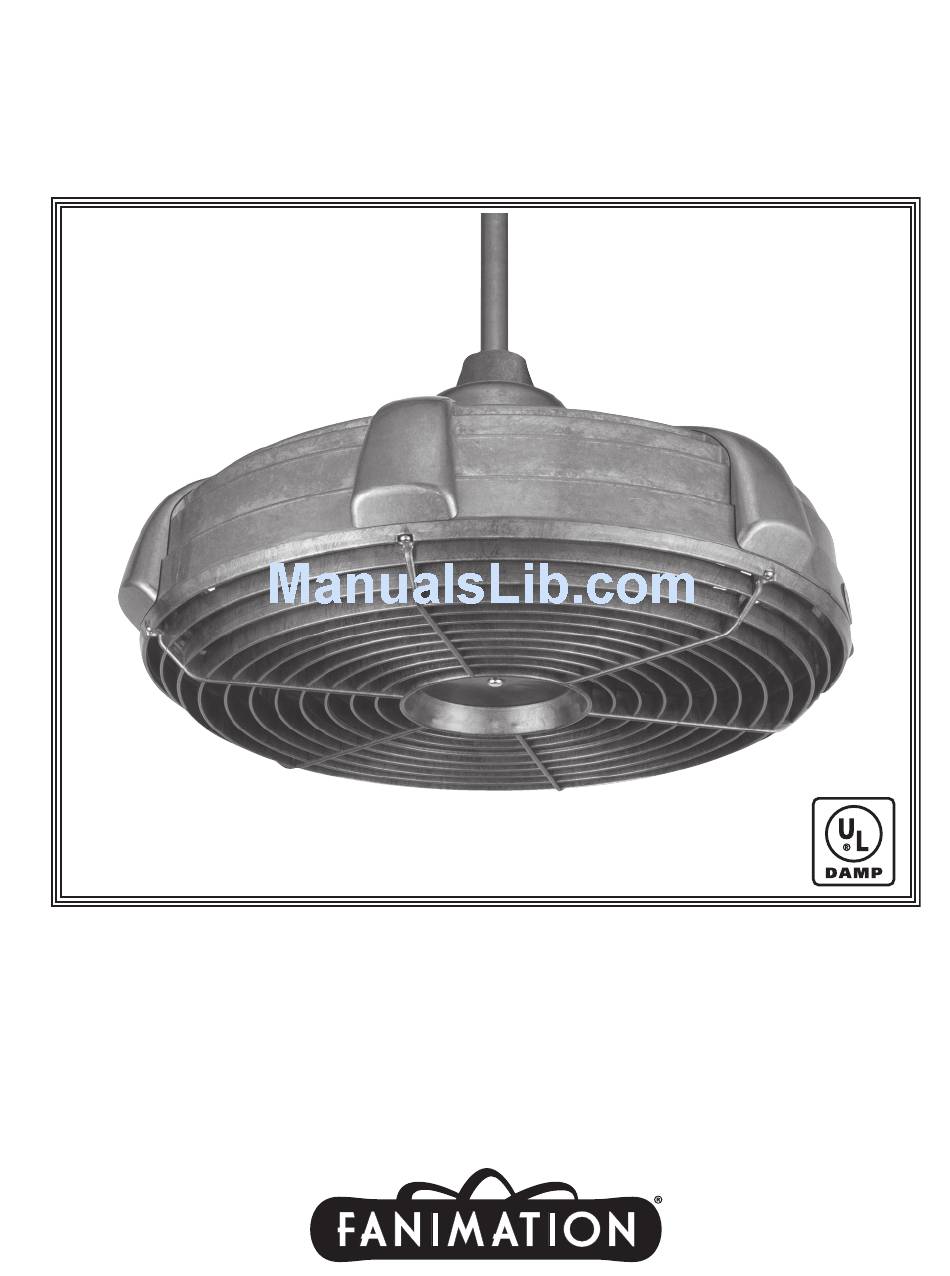

Page 1: Ceiling Fan

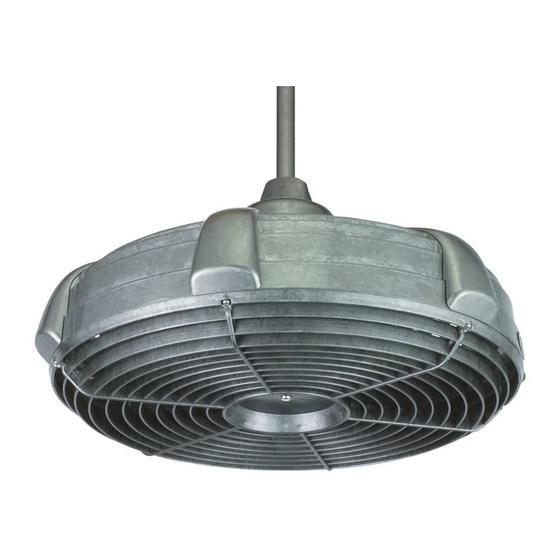

The Escalade ® Ceiling Fan Suitable for use with Solid State Speed Controls WARNING: Support Directly From Building Structure Net Weight 38 lbs. or 17.3 kg. Model No. FP2320** OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS... -
Page 2: Table Of Contents
Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation. -
Page 3: Tools Needed For Assembly
Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts. -
Page 4: Electrical And Structural Requirements
Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural confi... -
Page 5: How To Hang Your Ceiling Fan
How to Assemble Your Ceiling Fan (cont’d) 4. Separate and untwist the two wires and the safety cable. Route the leads through the Downrod. 5. Loosen the two setscrews in the Downrod Support. Align the Clevis Pin holes in the Downrod with the holes in the Downrod Support. -
Page 6: Electrical Requirements
▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation. -
Page 7: How To Wire Your Ceiling Fan - C8 Remote Control
How to Wire Your Ceiling Fan - C8 Remote Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. -
Page 8: How To Wire And Operate Your C9 Wall Control
How to Wire and Operate Your C9 Wall Control If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. -
Page 9: Installing The Canopy Housing
Installing the Canopy Housing NOTE: This step is applicable after the neccessary wiring is completed. (see page 7 or 8) ▲WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the canopy housing and not pinched between the housing and the ceiling. 1. -
Page 10: How To Change Your Light Bulbs
How to Change Your Light Bulbs ▲WARNING To prevent over-heating or electrical fi res, use ONLY 120 volt-35 watt, BA15D halogen bulbs as specifi ed. 1. Turn off power. 2. Remove the screws and the retaining ring. 3. Remove the burned-out bulb(s). By gently pressing down on the bulb, twisting counter-clockwise and pulling out the bulb (Figure 17). -
Page 11: Trouble Shooting
For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. FAN WILL NOT START 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. -
Page 12: Parts List
When ordering repair parts, always give the following information: • Part Number • Part Description • Fan Model Number Contact your retail store for repair parts. Part # APG510BL PG160 ADR6 FP2320 Fan Body P2370 P2330 P2335 P2360 P2365 P2380 P2385 P2340 P2351... - Page 13 The Escalade Ground Wire (Green) Optional - Sold Separately FAN OFF NOTE: The illustration shown is not to scale or its actual confi guration may vary. Wires partially removed for clarity. ® FP2320** Exploded-View Ground Wire (Green) Figure 18...
- Page 14 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/01...
