  • Page 1: Ceiling Fan

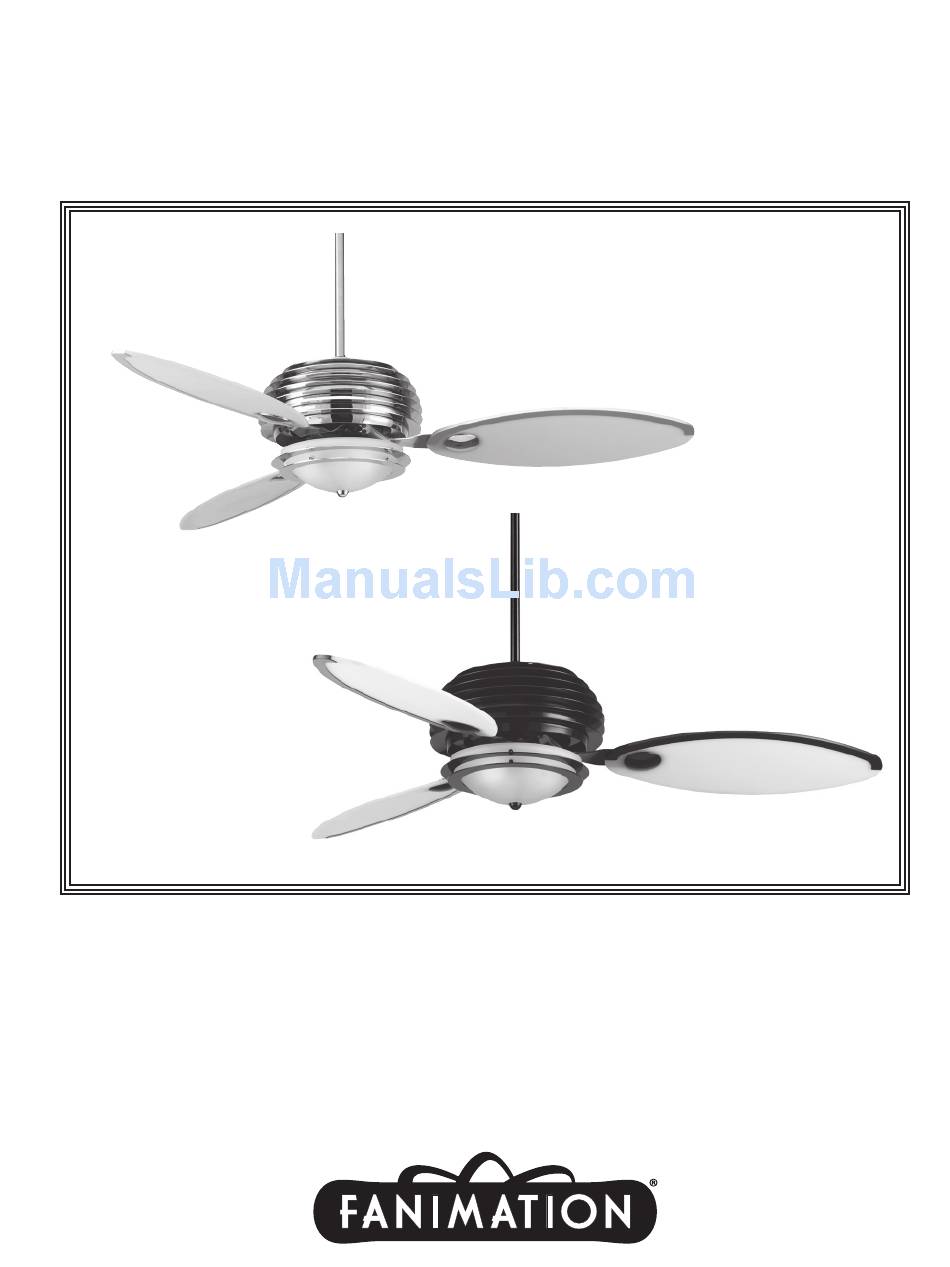

    The Draco ® Ceiling Fan DRACO™ Fan Chrome Finish shown with Plastic Blade Set DRACO™ Fan Glossy Black Finish shown with Plastic Blade Set Net Weight 19.96 kg (44 lbs) Model No. FP3220** OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
  • Page 2: Table Of Contents

    Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation.
  • Page 3: Unpacking Instructions

    Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts.
  • Page 4: Electrical And Structural Requirements

    Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural configurations that may be used for mounting the outlet box.
  • Page 5 How to Assemble Your Ceiling Fan (cont’d) NOTE: You will be using either the 6˝ downrod supplied with your fan or an optional downrod purchased seperately. 4. Loosen the two setscrews in the Downrod Support. Align the Clevis Pin holes in the Downrod with the holes in the Downrod Support.
  • Page 6: How To Hang Your Ceiling Fan

    How to Hang Your Ceiling Fan ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.
  • Page 7: How To Wire Your Ceiling Fan - C24 Hand-Held Remote

    How to Wire Your Ceiling Fan - C24 Hand-held Remote If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
  • Page 8: Installing The Canopy Housing

    Installing the Canopy Housing NOTE: This step is applicable after the neccessary wiring is completed. (see page 7) ▲WARNING To avoid possible fire or shock, make sure that the electrical wires are completely inside the canopy housing and not pinched between the housing and the ceiling. 1.
  • Page 9: Installing The Lower Housing Assembly

    Installing the Lower Housing Assembly CAUTION To avoid possible electrical shock, be sure electricity is turned off before installing downlight assembly. 1. Loosen three screws and remove one screw from support flange. (Figure 1). 2. Securely attach the Adapter Plate to the Support bracket and tightening three screws.
  • Page 10 Installing the Lower Housing Assembly (cont’d) 4. Securely attach Downlight Socket Plate Assembly to the Adapter Plate by tightening four screws with spring washers ( -32 x 8 mm) provided with the fan. (Figure 4) INSTALLATION NOTE Be sure to line up the curved slotted holes located on both Lower Housing Support Plates.
  • Page 11: Maintenance

    Periodic cleaning of your new ceiling fan is the only maintenance that is needed. When cleaning, use only a soft brush or lint free cloth to avoid scratching the fi nish. Abrasive cleaning agents are not required and should be avoided to prevent damage to fi...
  • Page 12: Parts List

    Before discarding packaging materials, be certain all parts have been removed Contact your retail store for repair parts. When ordering repair parts, always give the following information. Parts List Model #FP3220** Description -32 x 8 mm (4) -24 x 10 mm (13) How To Order Parts •...
  • Page 13: Exploded-View Illustration

    ® The Draco FP3220** Exploded-View Reversing Switch Figure 1 NOTE: The illustration shown is not to scale or its actual confi guration may vary...
  • Page 14: Trouble Shooting

    For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. Fuse or circuit breaker blown. 2. Loose power line connections to the fan, or loose switch wire connections in the switch housing. 1.
  • Page 16 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website www.fanimation.com Copyright 2007 Fanimation 2007/04...
