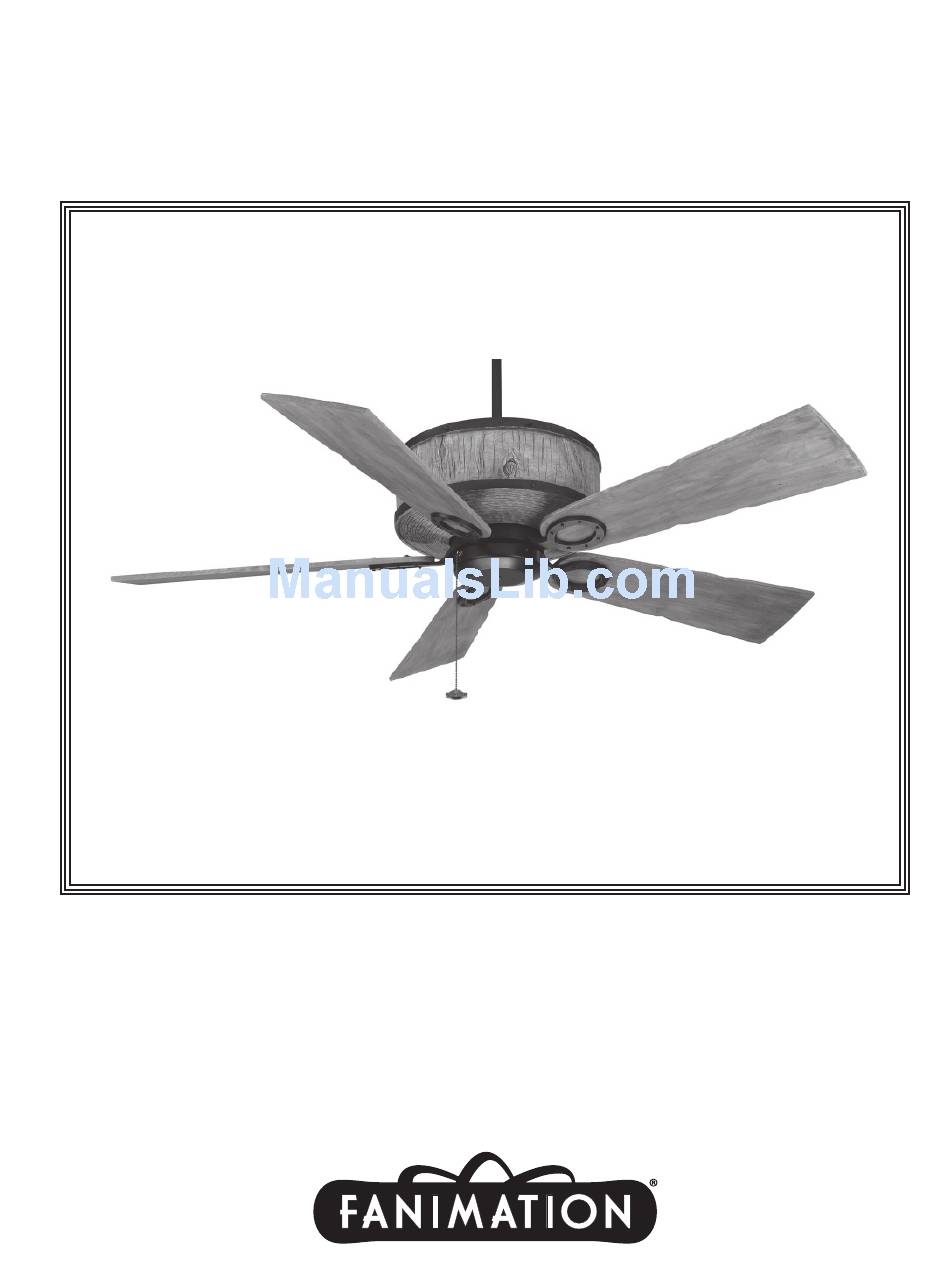

The Alamosa
®

Ceiling Fan

Net Weight 18.9 kg (42 lbs)
Model No. FP3820RP
OWNER'S MANUAL
READ AND SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alamosa FP3820RP and is the answer not in the manual?

Questions and answers

Summary of Contents for Fanimation Alamosa FP3820RP

  • Page 1: Ceiling Fan

    The Alamosa ® Ceiling Fan Net Weight 18.9 kg (42 lbs) Model No. FP3820RP OWNER’S MANUAL READ AND SAVE THESE INSTRUCTIONS...
  • Page 2: Table Of Contents

    Fanimation. 7. Fanimation reserves the right to modify or discontinue any product at any time and may substitute any part under this warranty. 8. Under no circumstances may a fan be returned without prior authorization from Fanimation. The receipt of purchase must ac- company authorized returns and must be sent freight prepaid to Fanimation.
  • Page 3: Tools Needed For Assembly

    Fanimation. Substitution of parts or accessories not designated for use with this product by Fanimation could result in personal injury or property damage. Contact your retail store for missing or damaged parts.
  • Page 4: Electrical And Structural Requirements

    Electrical and Structural Requirements Your new ceiling fan will require a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. The outlet box must be securely anchored and capable of withstanding a load of at least 50 lbs. Figure 1 depicts different structural configurations that may be used for mounting the outlet box.
  • Page 5: How To Assemble Your Ceiling Fan

    How to Assemble Your Ceiling Fan 1. Remove the Hanger Ball by loosening the setscrew in the Hanger Ball until the ball falls freely down the Downrod. (Figure 1) Remove the Pin from the Downrod, then remove the Hanger Ball. Retain the Pin and Hanger Ball for reinstallation in Step 8.
  • Page 6 How to Assemble Your Ceiling Fan (cont’d) 6. While pulling up on the hanger ball, securely tighten the two 3/16-24 x 3/8˝ setscrews in the downrod support. (Figure 3) 7. The fan comes with blue, black, and white leads. Before installing fan, measure up approximately 6-9 inches above top of Downrod/Hanger Ball Assembly.
  • Page 7: How To Hang Your Ceiling Fan

    How to Hang Your Ceiling Fan ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before hanging. NOTE: If you are not sure if the outlet box is grounded, contact a licensed electrician for advice, as it must be grounded for safe operation.
  • Page 8: How To Wire Your Ceiling Fan - Pull Chain

    How to Wire Your Ceiling Fan - Pull Chain If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. ▲WARNING To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
  • Page 9 Assembling and Mounting the Fan Blades, & Adapter/Switch Hsg INSTALLATION NOTE Do not connect fan blades until the fan is completely installed. Installing the fan with blades assembled may result in damage to the fan blades. ▲WARNING To reduce the risk of personal injury, do not bend the blade holders when installing, balancing the blades or cleaning the fan.
  • Page 10: Assembling And Mounting The Fan Blades, & Adapter/Switch Hsg

    Assembling and Mounting the Fan Blades, & Adapter/Switch Hsg 10. Assemble the Housing Switch Cup onto the assembled Adapter with three screws. (Figure 5) Restore Power and your fan is now wired to be turned on and off from the fan pull chain speed control. Operating Instructions - Pull Chain 1.
  • Page 11: Blade Cleaning

    Periodic light dusting of the Wood blades is recommended. A feather duster will work best. For your own safety turn off power at fuse box or circuit breaker before trouble shooting your fan. Trouble 1. Fuse or circuit breaker blown. 2.
  • Page 12: Parts List

    Before discarding packaging materials, be certain all parts have been removed When ordering repair parts, always give the following information: Contact your retail store for repair parts. Parts List Model #FP3820RP Description -24 x 15 mm & Fiber Washers (16) How To Order Parts • Part Number •...
  • Page 13: Exploded-View Drawing

    Figure 1 The Alamosa FP3820RP ® Exploded-View NOTE: The illustration shown is not to scale or its actual confi guration may vary...
  • Page 14 10983 Bennett Parkway Zionsville, IN 46077 (888) 567-2055 FAX (866) 482-5215 Outside U.S. call (317) 733-4113 Visit Our Website @ www.fanimation.com Copyright 2007 Fanimation 2007/01...
