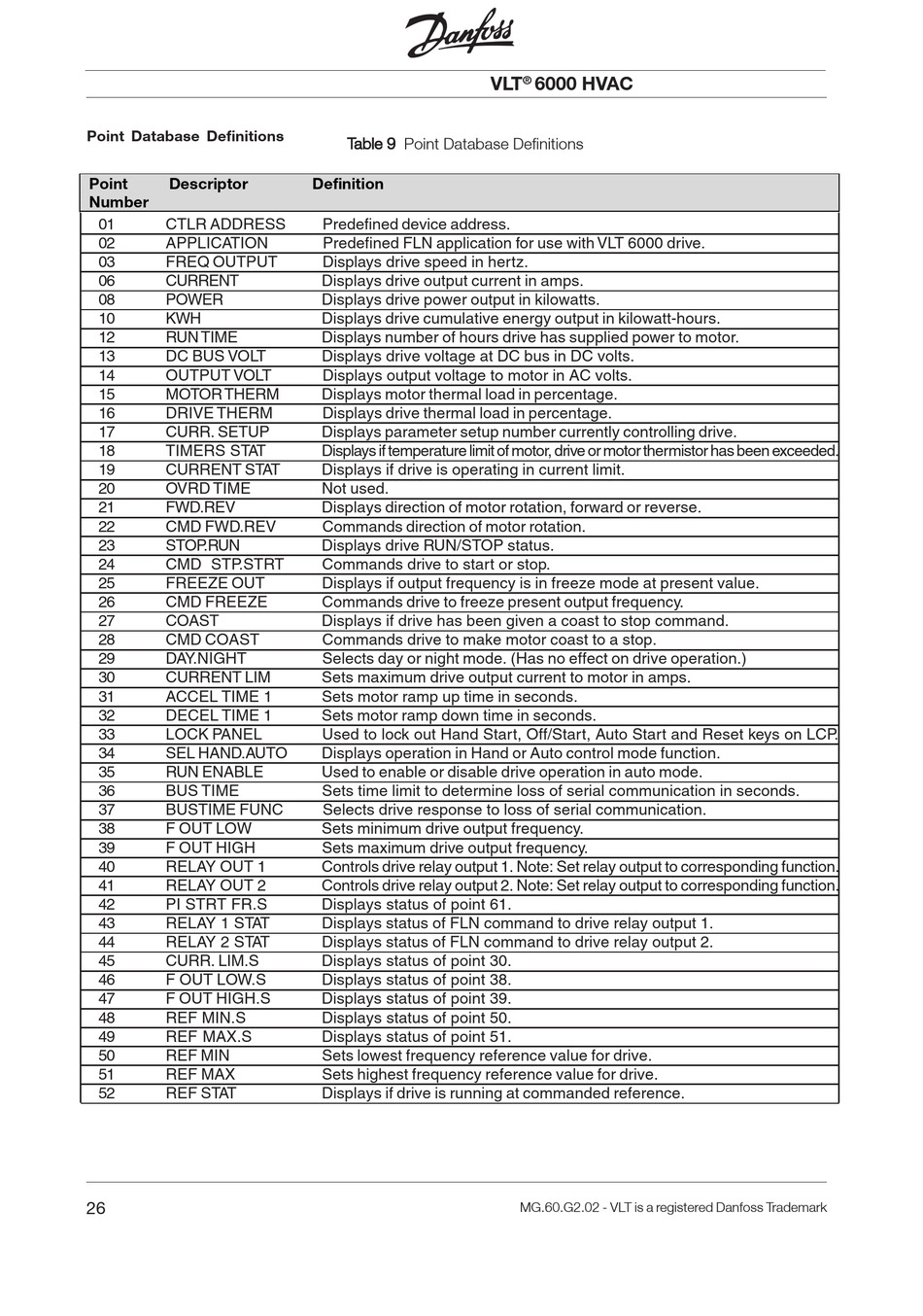

Point Database Definitions - Danfoss VLT 6000 Manual

Point Database Definitions

Point Descriptor
Number
01 CTLR ADDRESS
02 APPLICATION
03 FREQ OUTPUT
06 CURRENT
08 POWER
10 KWH
12 RUN TIME
13 DC BUS VOLT
14 OUTPUT VOLT
15 MOTOR THERM
16 DRIVE THERM
17 CURR. SETUP
18 TIMERS STAT
19 CURRENT STAT
20 OVRD TIME
21 FWD.REV
22 CMD FWD.REV
23 STOP .RUN
24 CMD STP.STRT
25 FREEZE OUT
26 CMD FREEZE
27 COAST
28 CMD COAST
29 DAY.NIGHT
30 CURRENT LIM
31 ACCEL TIME 1
32 DECEL TIME 1
33 LOCK PANEL
34 SEL HAND.AUTO
35 RUN ENABLE
36 BUS TIME
37 BUSTIME FUNC
38 F OUT LOW
39 F OUT HIGH
40 RELAY OUT 1
41 RELAY OUT 2
42 PI STRT FR.S
43 RELAY 1 STAT
44 RELAY 2 STAT
45 CURR. LIM.S
46 F OUT LOW.S
47 F OUT HIGH.S
48 REF MIN.S
49 REF MAX.S
50 REF MIN
51 REF MAX
52 REF STAT
26
T T T T T able 9 able 9 able 9
able 9 able 9 Point Database Definitions
Definition
Predefined device address.
Predefined FLN application for use with VLT 6000 drive.
Displays drive speed in hertz.
Displays drive output current in amps.
Displays drive power output in kilowatts.
Displays drive cumulative energy output in kilowatt-hours.
Displays number of hours drive has supplied power to motor.
Displays drive voltage at DC bus in DC volts.
Displays output voltage to motor in AC volts.
Displays motor thermal load in percentage.
Displays drive thermal load in percentage.
Displays parameter setup number currently controlling drive.
Displays if temperature limit of motor, drive or motor thermistor has been exceeded.
Displays if drive is operating in current limit.
Not used.
Displays direction of motor rotation, forward or reverse.
Commands direction of motor rotation.
Displays drive RUN/STOP status.
Commands drive to start or stop.
Displays if output frequency is in freeze mode at present value.
Commands drive to freeze present output frequency.
Displays if drive has been given a coast to stop command.
Commands drive to make motor coast to a stop.
Selects day or night mode. (Has no effect on drive operation.)
Sets maximum drive output current to motor in amps.
Sets motor ramp up time in seconds.
Sets motor ramp down time in seconds.
Used to lock out Hand Start, Off/Start, Auto Start and Reset keys on LCP.
Displays operation in Hand or Auto control mode function.
Used to enable or disable drive operation in auto mode.
Sets time limit to determine loss of serial communication in seconds.
Selects drive response to loss of serial communication.
Sets minimum drive output frequency.
Sets maximum drive output frequency.
Controls drive relay output 1. Note: Set relay output to corresponding function.
Controls drive relay output 2. Note: Set relay output to corresponding function.
Displays status of point 61.
Displays status of FLN command to drive relay output 1.
Displays status of FLN command to drive relay output 2.
Displays status of point 30.
Displays status of point 38.
Displays status of point 39.
Displays status of point 50.
Displays status of point 51.
Sets lowest frequency reference value for drive.
Sets highest frequency reference value for drive.
Displays if drive is running at commanded reference.
VLT ® 6000 HVAC
MG.60.G2.02 - VLT is a registered Danfoss Trademark
