Cuisine Tabletop Barbecue
FEATURES:
• Portable table top design ideal for picnics, camping
or at home
• Hard-wearing vitreous enamel hood with large
carry handle
• Powerful 12.7 MJ/hr U-shaped stainless steel
burner provides even heat distribution
• Large easy-to-clean enamelled grill
Important: Retain these instructions for future use.
3495-06/12
Model No. GM152-01
• Handy foldaway side shelves and clip-down lid
for quick set up and transport
• Piezo ignition for easy lighting
• Operates on an LPG Cylinder or Non-Refillable
Propane Canister (PROCAN1)
• Complies with NZ Standards

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM152-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Gasmate GM152-01

Summary of Contents for Gasmate GM152-01

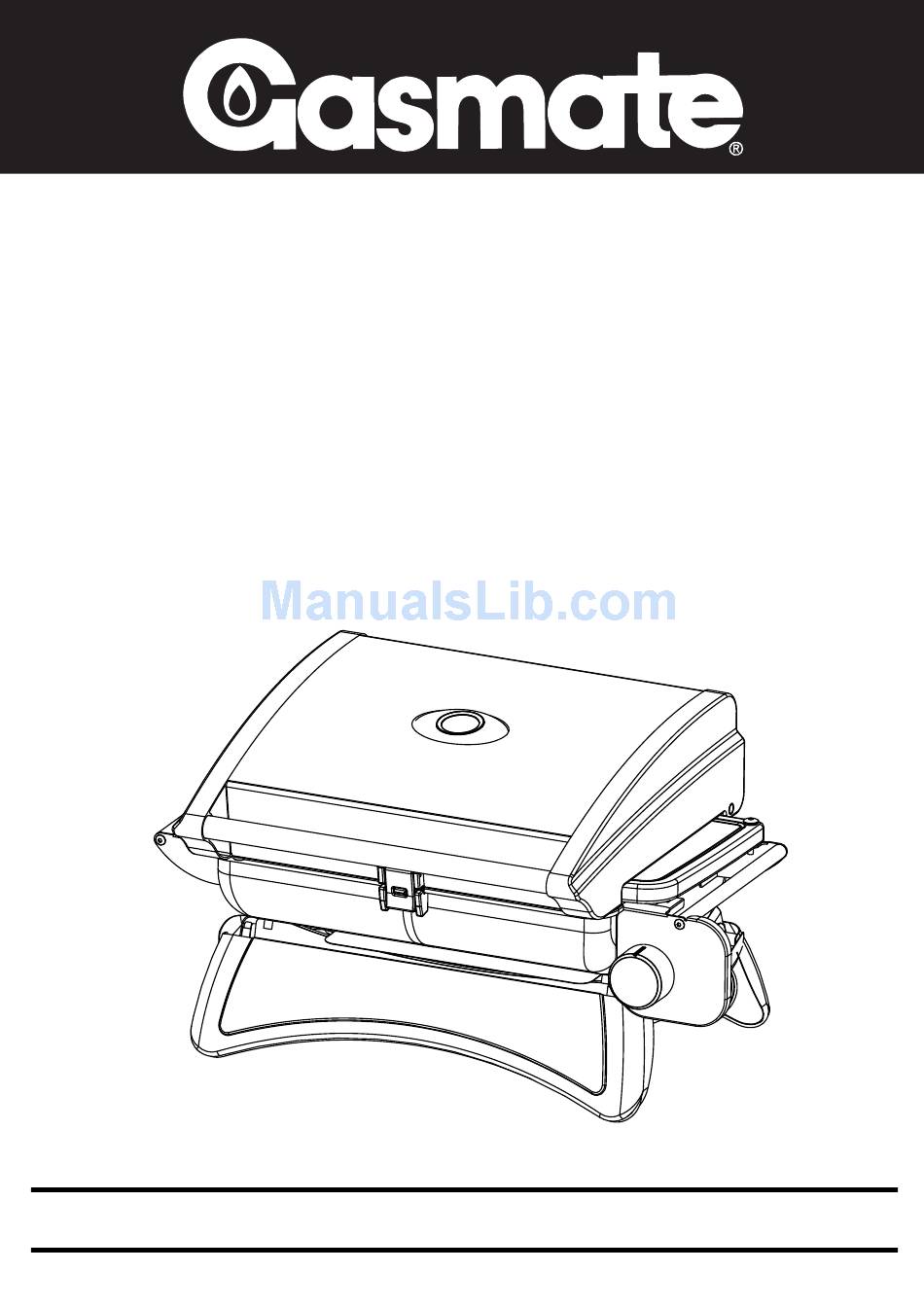

  • Page 1 Cuisine Tabletop Barbecue Model No. GM152-01 FEATURES: • Handy foldaway side shelves and clip-down lid • Portable table top design ideal for picnics, camping for quick set up and transport or at home • Piezo ignition for easy lighting • Hard-wearing vitreous enamel hood with large carry handle •...
  • Page 2 Width Height Depth Folded 690mm 390mm 500mm Open 1030mm 660mm 500mm...

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM Description Description Grill Body Flame Tamer Grease Cup Grid Hardware List A. Wing Screw - 4 pcs B. Washer M6 - 4 pcs C. Washer M6 - 4 pcs D. Washer M6.5 - 4 pcs (Doubled sided tape)
  • Page 4 ASSEMBLY INSTRUCTIONS Remove all the contents from packaging, and make sure all parts are present before attempting to assemble. For correct screws and washers for assembly below, refer to part numbers on previous page. Step 1 Put one washer through each screw. Then, put one washer with doubled sided tape each on top of the screw hole in the front. Step 2 Remove the flame tamer above the grid as per the picture shown below.
  • Page 5 ASSEMBLY INSTRUCTIONS Step 3 Line up screws and screw holes of the leg assembly with holes on the fire box, and then drop the grill on the leg assembly. As per picture below, install the legs in the flat position with hinge folded up. Tighten the wing nuts (A) into the holes in the front and back.
  • Page 6 ASSEMBLY INSTRUCTIONS Step 5 Side shelves slide in as shown below (figure 1) for easy and convenient storage. Please make sure that when using the side shelves that they are properly locked into place by threading the slot on the inside of the shelf through the side bracket as shown in figure 2.

  • Page 7: General Assembly

    GENERAL ASSEMBLY Connect to an LPG Cylinder Connect to a Propane Fuel Canister CAUTION: When the barbecue is not in use, the ONLY connect directly to an EN417 or DOT-39 gas must be turned off at the cylinder. The gas approved 468-gram non-refillable propane fuel cylinder should be filled by a reputable gas canister.

  • Page 8: Lighting Instructions

    LIGHTING INSTRUCTIONS COOKING INSTRUCTIONS 1. See “Lighting Instructions” section to light the BBQ. Read the entire general information section of 2. To preheat: Turn BBQ on HIGH for about 8 minutes. this instruction manual before operating the BBQ. During the first use, you may notice a slight odour Failure to do so may result in improper use of the caused by the curing of paint and parts.
  • Page 9 Cleaning Packing up 1. Before packing up barbecue wait until the grill is • All cleaning and maintenance should be done when cool to the touch. BBQ has cooled down and with the canister/cylinder disconnected. 2. Remove and clean out the drip tray (store under grill).

  • Page 10: Care And Maintenance

    CARE & MAINTENANCE If you suspect a gas leak or malfunction, turn DO NOT modify this BBQ in any way. Modifying control knob to OFF position immediately, stop the BBQ may result in fire or explosion resulting using BBQ, extinguish any flame, and disconnect in property damage, serious personal injury, or the propane canister or turn off gas supply and even death.

  • Page 11: Safe Appliance Locations

    DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS The following figures are diagrammatical representations of outdoor areas. Rectangular areas have been used in these figures – the same principles apply to any other shaped area. Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.sitro.com.au...
