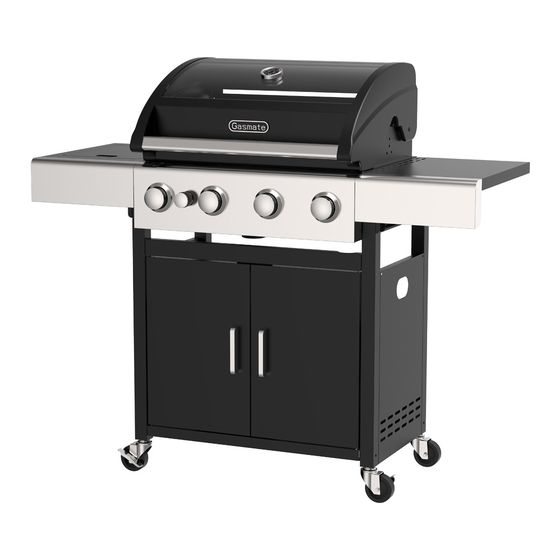

4 BURNER GAS GRILL
Model No. GM172-154
Double-skinned powder coated roasting hood with
viewing window
Powder-coated cabinet, side shelves and doors with
stainless steel fascia
Flush-mounted side burner
Cast iron hotplate and grill with porcelain enamel
warming rack
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au
Stainless steel tubular burners and enamel flame tamers
Rotary piezo ignition
Assembled dimensions (mm): 1400W x 1150H x 520D
Total cooking area (mm): 720W x 420D
Approved to NZ Standards
Aber Living - Hamilton, N.Z. www.gasmate.co.nz
5203-07/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gasmate LANTOS GM172-154
Summary of Contents for Gasmate LANTOS GM172-154
- Page 1 Approved to NZ Standards Cast iron hotplate and grill with porcelain enamel warming rack Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living - Hamilton, N.Z. www.gasmate.co.nz 5203-07/20...
-
Page 2: General Information
GENERAL INFORMATION After the assembly has been secured, turn on the gas and check for leaks by brushing a soap and water IMPORTANT solution over all connections. Read these instruction carefully prior to use. If you are unable to correct the leak by tightening the Familiarise yourself with the appliance before connections, turn off the gas and contact the supplier connecting it to it’s gas container. - Page 3 GENERAL INFORMATION FOR YOUR SAFETY • This barbecue must not be used indoors. • Only use in well ventilated areas. Failure to comply with these instructions could result • CARBON MONOXIDE HAZARD - USING THIS in a fire or explosion which could cause serious bodily injury, death or property damage.
-
Page 4: Protect Children
GENERAL INFORMATION Location of your Barbecue Tools You Will Need DO NOT use your barbecue in garages, porches, Standard Phillips-head screw driver (or cordless drill breezeways, sheds or other enclosed areas. Your and bits) and Adjustable spanner (open ended shifter) or barbecue is to be used OUTDOORS. -
Page 5: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST No. Description No. Description No. Description Hood Side Burner Nozzle Assembly Back Panel Thermometer Side Shelf Left Fascia Door Beam Hood Handle Rear Hood Left Side Panel Door Stopper Warming Rack Rear Hood Right Side Panel Left Door Assembly Cooking Grill Rear Hood Panel... - Page 6 HARDWARE A. M6x50 B. M6x12 C. M5x12 D. M6x15 E. M4x6 ASSEMBLY INSTRUCTIONS Before assembling the barbecue, read these Instructions carefully. Assemble the barbecue on a flat, clean surface. The barbecue is heavy. NOTE: Do not fully tighten all the nuts during the initial stages of assembly. Caution: Sheet metal can cause injury.
- Page 7 ASSEMBLY INSTRUCTIONS STEP 2 Attach legs to the firebox assembly (41) using 8x M6x50 (A) screws and then attach the back panel (31) to the back of the legs with 4x M6x12 (B) screws. A. M6x50 x8 B. M6x12 x4 STEP 3 Attach bottom cabinet shelf (36) to legs with 4x M6x50 (A) screws, ensuring that...
- Page 8 ASSEMBLY INSTRUCTIONS STEP 4 Secure the back panel to the cabinet shelf with 1x M6x12 (B) screw at the back. Attach the cabinet door stop with 2x M5x12 (C) screws in the middle of the cabinet shelf at the front. B.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 6 Attach the door handles to the doors (34, 35) using 2x M4x6 (E) screws for each door. E. M4x6 x4 STEP 7 For each door, insert hinge pins into the cabinet bottom shelf using the holes provided at the front and use the spring latch for hinge pin into the cabinet door beam.
- Page 10 ASSEMBLY INSTRUCTIONS STEP 8a Affix side shelf left fascia panel (17) to side burner table assembly (13) using 2x M6x12 (B) screws. Affix side shelf right fascia panel (40) to side table assembly (39) using 2x M6x12 (B) screws. Loosen leg screws and lower side shelf over these screws.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 9 Insert flame tamers (7) into the fire box over 2 burners starting from the left burner. Then add cast iron grill (5) over burners with flame tamers and then cast-iron hot plate (6) on the right. Insert warming rack into the holes at either side of the back of the fire box and rest front bars in rotisserie hoops.
- Page 12 ASSEMBLY INSTRUCTIONS STEP 11 STEP 12 Step 12 Step 12 Step 13 Step 13 Step 12 Step 13 Attach the regulator to your gas cylinder. Attach the regulator to your gas cylinder. Step 12 Attach the regulator to your gas cylinder. Turn on the gas cylinder ensuring that all of the controls Turn on the gas cylinder ensuring that all of the Turn on the gas cylinder ensuring that all of the...
-
Page 13: General Assembly
GENERAL ASSEMBLY Connecting & Disconnecting to Gas Source Regulator Safety Feature All QCC regulators (the part that attaches to the gas cylinder to regulate the flow of gas) have a safety feature IMPORTANT: included that restricts gas flow in the event of a gas leak. You can inadvertently activate this safety feature without having a gas leak. -
Page 14: Lighting Procedure
LIGHTING PROCEDURE Before lighting your barbecue for the first time, read the instructions fully to ensure the barbecue is assembled IMPORTANT: correctly and is ready for use. Remove all point-of-sale material from the barbecue. • Note: If for some reason, ignitor fails to produce a spark at the electrode, barbecue can be lit by Burner Operation &... -
Page 15: Operating Procedure
BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Valve on cylinder is closed Open valve on cylinder Burner will Control knob is closed Turn knob to high when lighting not ignite Electronic igniter is faulty Use a long barbecue match Burner has gone out Check that the gas bottle is not empty and re-ignite the burner... -
Page 16: Care And Maintenance
CARE & MAINTENANCE As with all appliances, proper care and maintenance will keep them in top operating condition and prolong IMPORTANT: their life. Your new gas barbecue is no exception. By following these cleaning procedures on a timely basis, • Beware of spiders and wasps. Burner tube should your barbecue will be kept clean and working properly be inspected and cleaned periodically. -
Page 17: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS Within a partial enclosure that includes an overhead cover and no more than two walls This appliance shall only be used in an above ground (see Example 2 & 3). open-air situation with natural ventilation, without Within a partial enclosure that includes an overhead stagnant areas, where gas leakage and products of cover and more than two walls, the following will apply: combustion are rapidly dispersed by wind and natural... - Page 18 This page has been left intentionaly blank...
- Page 19 This page has been left intentionaly blank...
-
Page 20: Limited Warranty
1 YEAR LIMITED WARRANTY Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 12 months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental purposes.
