Gasmate GM174-045 Manual

Euro gas grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

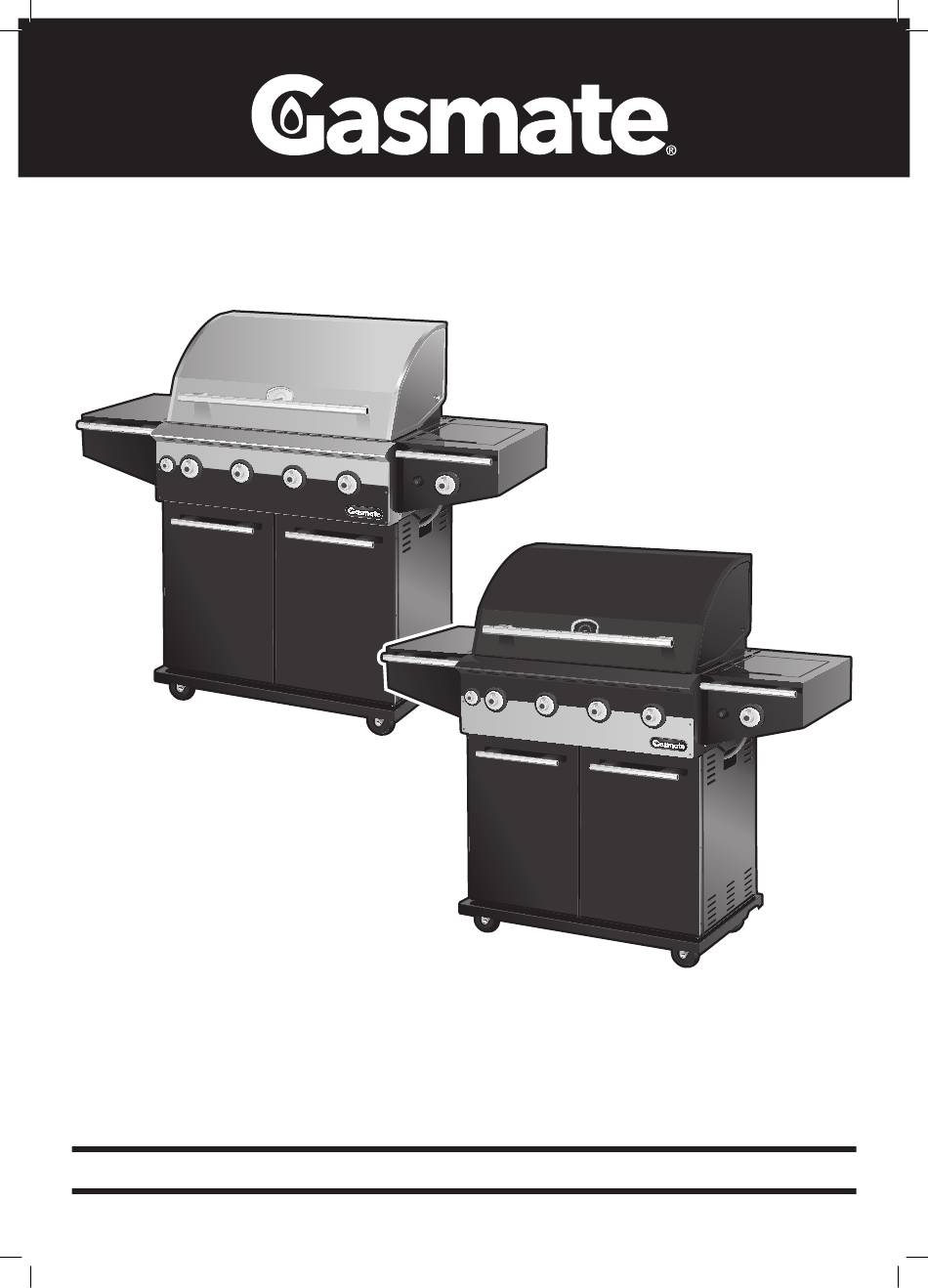

Euro Gas Grill
Model No. GM174-045
Model No. GM174-046
FOR OUTDOOR USE ONLY - OPERATES ON LPG
Retain these instructions for future use.
Important: The installer or seller must leave these instructions with the consumer.
4477-07/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM174-045 and is the answer not in the manual?

Questions and answers

Related Manuals for Gasmate GM174-045

Summary of Contents for Gasmate GM174-045

  • Page 1 Euro Gas Grill Model No. GM174-045 Model No. GM174-046 FOR OUTDOOR USE ONLY - OPERATES ON LPG Retain these instructions for future use. Important: The installer or seller must leave these instructions with the consumer. 4477-07/16...

  • Page 2: General Information

    GENERAL INFORMATION Gas Cylinder Use & Safety IMPORTANT This is a low pressure barbecue and must only be used Read these instruction carefully prior to use. with the hose and regulator supplied. Your barbecue is Familiarise yourself with the appliance before designed for use with 9Kg LPG cylinders.
  • Page 3 GENERAL INFORMATION FOR YOUR SAFETY • Never alter or modify the regulator or gas supply Failure to comply with these instructions could result assembly. in a fire or explosion which could cause serious bodily injury, death or property damage. • This barbecue must not be used indoors. CAUTION: Accessible parts may be •...

  • Page 4: Protect Children

    GENERAL INFORMATION Location of your Barbecue Check Barbecue for any Damage Before attempting to assemble your barbecue, it is DO NOT use your barbecue in garages, porches, advisable to check that all the necessary parts have been breezeways, sheds or other enclosed areas. Your barbecue included using the list on page 6.

  • Page 5: Exploded Diagram

    EXPLODED DIAGRAM Description Description Hood Assembly Side burner trivet Side shelf assembly Wind shield Left side shelf handle Right side shelf handle Knob for Rear IR Burner Side burner assembly Knob for Main SUS Burner Knob for Side Burner Left Door Assembly Electronic Igniter Hood handle Badge...

  • Page 6: Parts List

    PARTS LIST 1. Hood & Body assembly 2. Side shelf assembly 3. Side burner shelf 4. Screw M4*10 x 1PCS x 1PCS assembly x 2PCS x 1PCS 5. Electronic Igniter 6. Battery 7. Grease Cup 8. Knob x 1PCS x 1PCS x 1PCS x 1PCS 9.
  • Page 7 ASSEMBLY INSTRUCTIONS Before assembling the barbecue, read these Instructions carefully. Assemble the barbecue on a flat, clean surface. The barbecue is heavy. NOTE: Do not fully tighten all the nuts during the initial stages of assembly. Caution: Sheet metal can cause injury. Wear gloves when assembling the barbecue. Step 1 Use 16pcs M6*12 screw (25) to fix 2pcs castor with brake (15)
  • Page 8 ASSEMBLY INSTRUCTIONS Step 3 Use 8pcs M6*12 screw (25) to fix the cabinet rear panel (16) onto base panel, cabinet left side panel and cabinet right side panel. Step 4A Use 4pcs ST4.2*10 screw (27) to fix the door beam assembly (20) between two cabinet side panels, as shown.
  • Page 9 ASSEMBLY INSTRUCTIONS Step 4B Using 1pc ST4.2*9.5 screw to fasten one side of baffle plate bracket to cabinet rear panel left side, and using 1pc M4 locking nut and 1pc M4*10 screw to fasten the other side of baffle plate bracket to cabinet base panel.
  • Page 10 ASSEMBLY INSTRUCTIONS Step 5B To fit the cabinet doors (21, 22), insert the fixed bottom pin into the base panel as shown in the picture, then insert the upper pin into the door beam bracket. Step 6 Note: We recommend two people complete this step.
  • Page 11 ASSEMBLY INSTRUCTIONS Step 7 Use 2pcs M5*8 screw (28) to fix the handle assembly (13) onto the side shelf assembly. Step 8 Take away the side burner trivet, unscrew 2pcs M4*5 screw and nut, remove the side burner.
  • Page 12 ASSEMBLY INSTRUCTIONS Step 9 Use 2pcs M5*8 screw (28) to fix the handle assembly (13) onto the side shelf assembly hotizontally. Step 10 Loosen 4pcs screws located on the firebox right side panel by about 6mm. M6*12 Attach the side shelf by inserting the four screwheads on the side of the firebox into the holes on the side shelf.
  • Page 13 ASSEMBLY INSTRUCTIONS Step 11 Use 2pcs M4*10 screw (4) to fix the knob bezel into valve and tighten, then install the control knob. Step 12 Install the side burner using 2 pcs screw M4x5. Put the trivet back.
  • Page 14 ASSEMBLY INSTRUCTIONS Step 13 Attach one end of the side burner wire to the terminal of the side burner electrode. Insert the five (5) wires coming out from the side of the firebox and the side burner wire into the igniter terminals at the rear of the electronic igniter.
  • Page 15 ASSEMBLY INSTRUCTIONS Step 15 Loosen 4 pcs screws located on the left side of BBQ body assembly by about 6mm. M6*12 Attach the side shelf by inserting the four screwheads on the side of the firebox into the holes on the left shelf. M6*12 Fasten the four screws to secure the shelf.
  • Page 16 ASSEMBLY INSTRUCTIONS Step 17 Insert the flame tamers as shown here. Flame Flame tamer 3 tamer 1 (11) (12) Flame tamer 2 (9.) Black Enamel Flame Tamer 2 x 1PCS (11.) 11. 304# S/S Flame Tamer 3 x 1PCS (12.) Black Enamel Flame Tamer 1 x 2PCS Step 18...
  • Page 17 ASSEMBLY INSTRUCTIONS Step 19 Step 20 Attach the regulator to your gas cylinder. Turn on the gas cylinder ensuring that all of the controls on the BBQ are turned OFF at this point. DO NOT ATTEMPT TO LIGHT THE BBQ!!. Step 21 Step 22a Use a solution of soapy water (dishwashing liquid and water...
  • Page 18 GENERAL INFORMATION Regulator Safety Feature Connecting & Disconnecting to Gas Source All QCC regulators (the part that attaches to the gas Familiarise yourself with the general information and cylinder to regulate the flow of gas) have a safety feature safety guidelines located at the front of this manual. included that restricts gas flow in the event of a gas leak.

  • Page 19: Lighting Procedure

    LIGHTING PROCEDURE Burner Operation & Ignition System Check Side Burner Before lighting your barbecue for the first time, read the 1. Lift up lid and ensure it is always open when the instructions fully to ensure the barbecue is assembled burner is alight.

  • Page 20: Operating Procedure

    OPERATING PROCEDURE Burn Off Cooking Surfaces This dish should then be located on a grill plate in the middle of the barbecue cooking area. To increase heat We recommend operating your barbecue on its highest circulation, remove other cooking grills and plates from the setting for 15-20 minutes prior to first use.

  • Page 21: Care And Maintenance

    CARE & MAINTENANCE As with all appliances, proper care and maintenance will IMPORTANT: keep them in top operating condition and prolong their life. Your new gas barbecue is no exception. By following these • Beware of spiders and wasps. Burner tube cleaning procedures on a timely basis, your barbecue will should be inspected and cleaned periodically.

  • Page 22: Safe Appliance Locations

    figures - the same principles apply to any other shaped area. Gasmate Gasmate ® is a registered trademark of: ® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, Hamilton, N.Z. www.gasmate.co.nz Aber, Hamilton, N.Z. www.gasmate.co.nz...
  • Page 23 This page has been left intentionaly blank...
