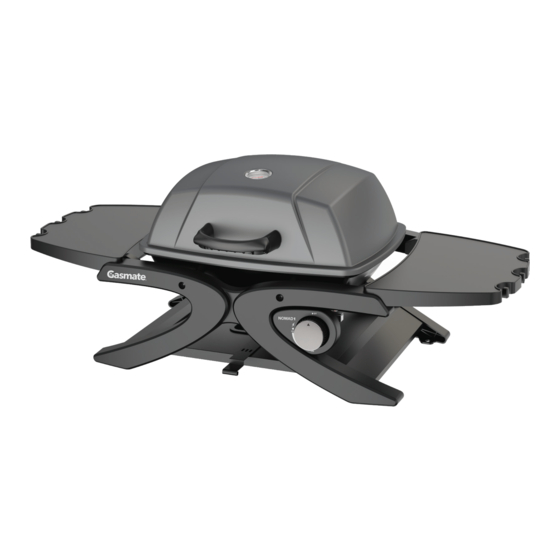

NOMAD1
PORTABLE BBQ
Model No. GM152-152 & GM152-158
Perfect for camping or alfresco cooking
13.3MJ/hr U-shaped stainless steel burner provides
even heat distribution
Hard-wearing porcelain enamel body and power-
coated hood
Heavy-duty cast iron hotplate and grill
Important: Retain these instructions for future use.
Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd
www.gasmate.com.au
Piezo ignition for effortless lighting
Integrated temperature gauge for heat control
Easy access removable grease fat cup
Supplied with hose and regulator so it's ready to use
Aber Living, Hamilton, N.Z. www.gasmate.co.nz
5308-05/21
Advertisement
Table of Contents
Related Manuals for Gasmate NOMAD1
Summary of Contents for Gasmate NOMAD1
- Page 1 Supplied with hose and regulator so it’s ready to use coated hood Heavy-duty cast iron hotplate and grill Important: Retain these instructions for future use. Gasmate® is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber Living, Hamilton, N.Z. www.gasmate.co.nz 5308-05/21...
-
Page 2: Read Me First
READ ME FIRST GAS LEAK TESTING It is important that you leak test the BBQ before first use and every time the gas cylinder is refilled and reconnected to the BBQ. To Complete Leak Test • Make sure all the control knobs are OFF. •... -
Page 3: General Information
GENERAL INFORMATION Specifications Barbecue specifications can be found on the data label IMPORTANT attached to the barbecue body. Read these instructions carefully prior to use. Hose & Regulator Safety Familiarise yourself with the appliance before connecting it to it’s gas container. Keep these The regulator and hose assembly supplied with the instructions for future reference. - Page 4 GENERAL INFORMATION FOR YOUR SAFETY • Never lean over cooking surface when lighting. • Never alter or modify the regulator or gas supply Failure to comply with these instructions could assembly. result in a fire or explosion which could cause serious bodily injury, death or property damage.
-
Page 5: Protect Children
Location of your Barbecue DO NOT use your barbecue in garages, porches, sheds, breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be installed in or on recreational vehicles and/or boats and should not be placed under any surface that will burn. -
Page 6: Exploded Diagram
EXPLODED DIAGRAM PARTS LIST Part Description BBQ Body Handle Handle Heat Deflector Side Shelves Hotplate Grill Heat Shield Grease Tray Knob HARDWARE Part Description M6 Nuts ASSEMBLY INSTRUCTIONS Remove any transit protection material. Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. - Page 7 STEP 1 Attach the handle (B) and handle heat deflector (C) to the lid using 2x M6 nuts (AA). STEP 2 Place the heat shield (G) into the BBQ body.
- Page 8 STEP 3 Place the hotplate (E) and grill (F) into the BBQ body. STEP 4 Attach the control knob (I) on the control panel.
- Page 9 STEP 5 Insert the grease tray (H) into the support under the BBQ body. STEP 6 Attach the two side shelves (D).
- Page 10 COMPLETED VIEW...
-
Page 11: Lighting Procedure
GENERAL INFORMATION CONNECTING & DISCONNECTING LIGHTING PROCEDURE TO GAS SOURCE Burner Operation & Ignition System Check Familiarise yourself with the general information and 1. Open the hood of the barbecue before attempting to safety guidelines located at the front of this manual. light the burner. -
Page 12: Operation
OPERATION BURNER OPERATION & IGNITION SYSTEM CHECK Problem Possible Reason Solution Control knob is closed Turn knob to high when lighting Burner will not ignite Igniter is faulty Use a long barbecue match inserted through the hole on under side of barbecue Burner has gone out Check that the gas bottle is not empty and re- ignite the burner... -
Page 13: Care And Maintenance
CARE & MAINTENANCE Cleaning the Cooking Surface As with all appliances, proper care and maintenance will keep them in top operating condition and prolong After cooking, turn burner control to ‘OFF’ and let their life. Your new gas barbecue is no exception. By barbecue cool before attempting to clean the grill plate following these cleaning procedures on a timely basis, or grate. -
Page 14: Safe Appliance Locations
SAFE APPLIANCE LOCATIONS This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection. Any enclosure in which the appliance is used shall comply with the following: An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. -
Page 16: Limited Warranty
1 YEAR LIMITED WARRANTY Aber Living warrants the purchaser of this product against defects in workmanship and material, for a period of up to 12 months from the date of purchase. The warranty is non-transferable and becomes void if used for commercial or rental purposes.
