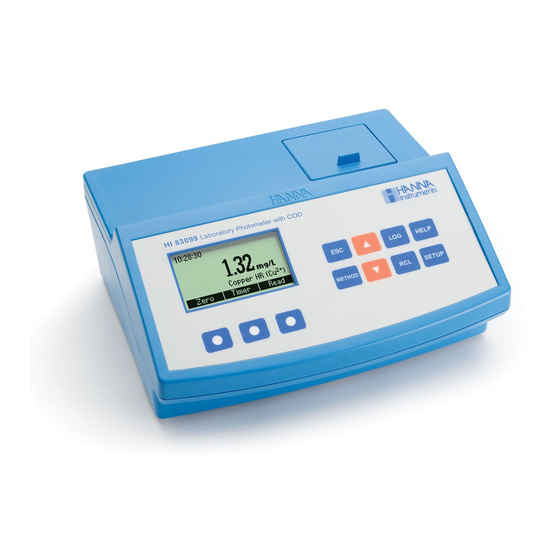

Cod and multiparameter bench photometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual
HI 83099
COD and Multiparameter Bench
Photometer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 83099 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanna Instruments HI 83099

Summary of Contents for Hanna Instruments HI 83099

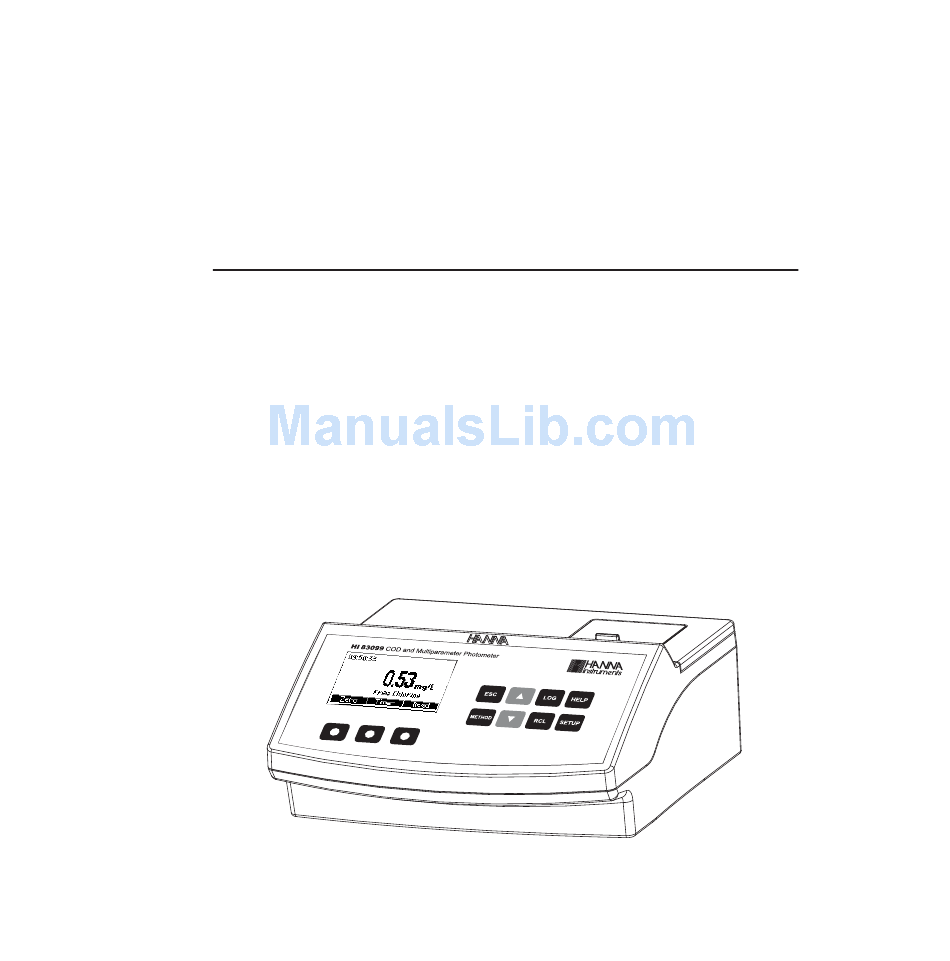

  • Page 1 Instruction Manual HI 83099 COD and Multiparameter Bench Photometer...

  • Page 2: Table Of Contents

    Dear Customer, Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the instrument. This manual will provide you with the necessary information for the correct use of the instrument. If you need additional technical information, do not hesitate to e-mail us at tech@hannainst.com. TABLE OF CONTENTS PRELIMINARY EXAMINATION ..........

  • Page 3: Preliminary Examination

    The amount of reagent is precisely dosed to ensure maximum reproducibility. HI 83099 bench photometer can be connected to a PC via an USB cable. The optional HI 92000 Windows Compatible Software helps users manage all their results.

  • Page 4: Abbreviations

    ABBREVIATIONS EPA: US Environmental Protection Agency °C: degree Celsius °F: degree Fahrenheit μg/L: micrograms per liter (ppb) mg/L: milligrams per liter (ppm) g/L: grams per liter (ppt) milliliter high range medium range low range PAN: 1-(2-pyridylazo)-2-naphtol TPTZ: 2,4,6-tri-(2-pyridyl)-1,3,5-triazine SPECIFICATIONS Light Life Life of the instrument Light Detector Silicon Photocell...

  • Page 5: Principle Of Operation

    The optical system of HI 83099 is based on special subminiature tungsten lamps and narrow-band interference filters to guarantee both high performance and reliable results.

  • Page 6: Functional Description

    The measurement process is carried out in two phases: first the meter is zeroed and then the actual measurement is performed. The cuvette has a very important role because it is an optical element and thus requires particular attention. It is important that both the measurement and the calibration (zeroing) cuvette are optically identical to provide the same measurement conditions.
  • Page 7 1) Open Cuvette Lid 2) Indexing mark 3) Cuvette point 4) Liquid Crystal Display (LCD) 5) Splash proof keypad 6) ON/OFF power switch 7) Power input connector 8) USB connector KEYPAD DESCRIPTION The keypad contains 8 direct keys and 3 functional keys with the following functions: Press to perform the function displayed above it on the LCD.

  • Page 8: Tips For An Accurate Measurement

    TIPS FOR AN ACCURATE MEASUREMENT The instructions listed below should be carefully followed during testing to ensure most accurate results. • Color or suspended matter in large amounts may cause interference, and should be removed by treatment with active carbon and filtration: refere to Sample Preparation Chapter (page 17). •...
  • Page 9 • Proper use of the powder reagent packet: (a) use scissors to open the powder packet; (b) push the edges of the packet to form a spout; (c) pour out the content of the packet. USING CUVETTES • Proper mixing is very important for reproducibility of the measurements. The right way of mixing a cuvette is specified for each method in the related chapter.
  • Page 10 • Pay attention to push the cuvette completely down in the holder and to align the white point on the cap to the indexing mark on the meter. • In order to avoid reagent leaking and to obtain more accurate measurements, close the cuvette first with the supplied HDPE plastic stopper and then the black cap.

  • Page 11: Health & Safety

    HEALTH & SAFETY • The chemicals contained in the reagent kits may be hazardous if improperly handled. • Read the Material Safety Data Sheet (MSDS) before performing tests. • Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully.

  • Page 12: Operational Guide

    OPERATIONAL GUIDE POWER CONNECTION AND BATTERY MANAGEMENT The meter can be powered from an AC/DC adapter (included) or from the built-in rechargeable battery. Note: Always turn the meter off before unplugging it to ensure no data is lost. When the meter switches ON, it verifies if the power supply adapter is connected. The battery icon on the LCD will indicate the battery status: - battery is charging from external adapter - battery fully charged (meter connected to AC/DC adapter)
  • Page 13 • After the desired method is selected, follow the measurement described in the related section. • Before performing a test you should read all the instructions carefully. DATA MANAGEMENT The instrument features a data log function to help you keep track of all your analysis. The data log can hold 200 individual measurements.

  • Page 14: Setup

    S E T U P S E T U P S E T U P S E T U P S E T U P In the Setup mode the instrument’s parameters can be changed. Some parameters affect the measuring sequence and others are general parameters that change the behavior or appearance of the instrument.
  • Page 15 Date / Time This option is used to set the instrument’s date and time. Press the Modify key to change the date/time. Press the functional keys to highlight the value to be modified (year, month, day, hour, minute or second). Use the ...

  • Page 16: Help Mode

    H E L P M O D E HELP MODE HI 83099 offers an interactive contextual help mode that assists the user at any time. To access the help screens press HELP. The instrument will display additional information related to the current screen.

  • Page 17: Sample Preparation

    SAMPLE PREPARATION SAMPLE PREPARATION PROCEDURE The following Sample Preparation Procedure applies in case of: • Samples with color or suspended matter (turbidity). • Concentrated samples, for which the analysis result is over the range of the parameter. Use the accessories contained in the Sample Preparation Kit to prepare the sample according to the following instructions.
  • Page 18 • Filter the treated sample into an empty beaker. The sample is now ready. • If the solution is still turbid or colored, treat it again with a packet of active carbon. After use, throw the filter disc away and wash the syringe and the filter assembly well. Always use a new disc for another sample.
  • Page 19 • Remove the cap and fill the Demineralizer Bottle with tap water. • Replace the cap and shake gently for at least 2 minutes. • Open the upper part of the Demineralizer Bottle cap and gently squirt the demineralized water into the cylinder, up to the 100 mL mark.
  • Page 20 • If the solution contains some turbidity or color, add a powder packet of active carbon and follow the procedure described in previous section Colored or Turbid Samples. • Calculate the dilution factor N: N = 100/V Where: V is the volume of original sample poured in the cylinder, expressed in mL, and 100 is the final volume in the cylinder, expressed in mL.

  • Page 21: Aluminum

    ALUMINUM SPECIFICATIONS Range 0.00 to 1.00 mg/L Resolution 0.01 mg/L Accuracy ±0.02 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the aluminon method. The reaction between aluminum and reagents causes a reddish tint in the sample.
  • Page 22 • Add the content of one packet of HI 93712C-0 Bleaching powder to one of the two cuvettes. Replace the cap and shake vigorously until completely dissolved. This is the blank. • Place the blank into the holder and close the lid. •...

  • Page 23: Alkalinity

    ALKALINITY SPECIFICATIONS Range 0 to 500 mg/L (as CaCO Resolution 5 mg/L Accuracy ±5 mg/L ±10 % of reading at 25 °C Typical EMC ±5 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Colorimetric Method.
  • Page 24 • Remove the cuvette. • Carefully add the content of one packet of HI 93755-0 Alkalinity Indicator Reagent. Replace the cap and shake vigorously for 30 seconds. Note: Pay attention not to spill reagent otherwise full color development may be inhibited. •...

  • Page 25: Ammonia Mr

    AMMONIA MEDIUM RANGE SPECIFICATIONS Range 0.00 to 10.00 mg/L Resolution 0.01 mg/L Accuracy ±0.05 mg/L ±5% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92 , Method Nessler method.
  • Page 26 • Remove the cuvette. • Add 4 drops of HI 93715A-0 First Reagent (6 drops for seawater analysis). Replace the cap and mix the solution. • Add 4 drops of HI 93715B-0 Second Reagent (10 drops for seawater analysis). Replace the cap and mix the solution. •...

  • Page 27: Ammonia Lr

    AMMONIA LOW RANGE SPECIFICATIONS Range 0.00 to 3.00 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92 , Method Nessler method.
  • Page 28 • Remove the cuvette. • Add 4 drops of HI 93700A-0 First Reagent (6 drops for seawater analysis). Replace the cap and mix the solution. • Add 4 drops of HI 93700B-0 Second Reagent (10 drops for seawater analysis). Replace the cap and mix the solution. •...

  • Page 29: Bromine

    BROMINE SPECIFICATIONS Range 0.00 to 8.00 mg/L Resolution 0.01 mg/L Accuracy ±0.08 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition , DPD method.
  • Page 30 • Remove the cuvette and add the content of one packet of HI 93716-0 DPD reagent. Replace the cap and shake gently for about 20 seconds to dissolve most of the reagent. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and 30 seconds and press Read.

  • Page 31: Calcium

    CALCIUM SPECIFICATIONS Range 0 to 400 mg/L Resolution 10 mg/L Accuracy ±10 mg/L ±5% of reading at 25 °C Light Source Tungsten lamp with narrow band interference filter @ 466 nm Method Adaptation of the Oxalate method. REQUIRED REAGENTS Code Description Quantity Buffer Reagent...
  • Page 32 • Replace the cap and invert several times to mix. • Place the cuvette into the holder and close the lid. • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. •...

  • Page 33: Free Chlorine

    FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE SPECIFICATIONS Range 0.00 to 2.50 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the EPA DPD method 330.5.
  • Page 34 • Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. Powder reagents procedure • Add the content of one packet of HI 93701 DPD reagent. Replace the cap and shake gently for 20 seconds (or 2 minutes for seawater analysis).
  • Page 35 • Place the cuvette into the instrument. • Press Read to start the reading. The instrument displays the results in mg/L of free chlorine. INTERFERENCES Interference may be caused by: Bromine, Iodine, Ozone, Oxidized forms of Chromium and Manganese. In case of water with hardness greater than 500 mg/L CaCO , shake the sample for approximately 2 minutes after adding the powder reagent.

  • Page 36: Total Chlorine

    TOTAL CHLORINE SPECIFICATIONS Range 0.00 to 3.50 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the EPA DPD method 330.5. The reaction between the chlorine and the DPD reagent causes a pink tint in the sample.
  • Page 37 • Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. Powder reagents procedure • Add 1 packet of HI 93711 DPD reagent. Replace the cap and shake gently for 20 seconds (or 2 minutes for seawater analysis). •...
  • Page 38 • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and 30 seconds and press Read. When the timer ends the meter will perform the reading. • The instrument displays the results in mg/L of total chlorine. Note: free and total chlorine have to be measured separately with fresh unreacted samples following the related procedure if both values are requested.

  • Page 39: Chlorine Dioxide

    CHLORINE DIOXIDE SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.10 mg/L ±5% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Tungsten lamp with narrow band interference filter @ 575 nm Light Source Method Adaptation of the Chlorophenol Red method. The reaction between chlorine dioxide and reagents causes a colorless to purple tint in the sample.
  • Page 40 • Add the content of one packet of HI 93738B-0 Dechlorinating Reagent to one of the two cylinders (# 1), close and invert it several times until it is totally dissolved. This is the blank. • Add precisely 0.5 mL of HI 93738C-0 Chlorine Dioxide Reagent to each cylinder (# 1 & # 2), close them and invert several times to mix.
  • Page 41 • Press the Zero key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Fill another cuvette with 10 mL of the reacted sample (# 2) up to the mark and replace the cap. 10 mL •...

  • Page 42: Chromium Vi Hr

    CHROMIUM VI HIGH RANGE SPECIFICATIONS 0 to 1000 μg/L Range Resolution 1 μg/L Accuracy ±5 μg/L ±4% of reading at 25 °C Typical EMC ±1 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the ASTM Manual of Water and Environmental Technology, D1687-92 , Method Diphenylcarbohydrazide method.
  • Page 43 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 6 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in μ...

  • Page 44: Chromium Vi Lr

    CHROMIUM VI LOW RANGE SPECIFICATIONS Range 0 to 300 μg/L Resolution 1 μg/L Accuracy ±1 μg/L ±4% of reading at 25 °C Typical EMC ±1 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the ASTM Manual of Water and Environmental Technology, D1687-92 , Diphenylcarbohydrazide method.
  • Page 45 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 6 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in μ...

  • Page 46: Color Of Water

    COLOR OF WATER SPECIFICATIONS Range 0 to 500 PCU (Platinum Cobalt Units) Resolution 1 PCU Accuracy ±10 PCU ±5% of reading at 25 °C ± 1 PCU Typical EMC Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition , Colorimetric Platinum Cobalt method.
  • Page 47 • Fill the second cuvette up to the mark with unfiltered sample 10 mL and replace the cap. This is the apparent color. • Filter 10 mL of sample through a filter with a 0.45 μm membrane into the third cuvette, up to the 10 mL mark and replace the cap.

  • Page 48: Copper Hr

    COPPER HIGH RANGE SPECIFICATIONS Range 0.00 to 5.00 mg/L Resolution 0.01 mg/L Accuracy ±0.02 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Adaptation of the EPA method. The reaction between copper and the bicinchoninate Method reagent causes a purple tint in the sample.
  • Page 49 • Remove the cuvette. • Add the content of one packet of HI 93702-0 Bicinchoninate. Replace the cap and shake gently for about 15 seconds. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read.

  • Page 50: Copper Lr

    COPPER LOW RANGE SPECIFICATIONS Range 0 to 1000 μg/L Resolution 1 μg/L Accuracy ±10 μg/L ±5% of reading at 25 °C Typical EMC ±1 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Adaptation of the EPA method. The reaction between copper and the bicinchoninate Method reagent causes a purple tint in the sample.
  • Page 51 • Remove the cuvette. • Add the content of one packet of HI 93747-0 Bicinchoninate. Replace the cap and shake gently for about 15 seconds. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read.

  • Page 52: Cyanuric Acid

    CYANURIC ACID SPECIFICATIONS Range 0 to 80 mg/L Resolution 1 mg/L Accuracy ±1 mg/L ±15% of reading at 25 °C Typical EMC ±1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the turbidimetric method. The reaction between cyanuric acid and the reagent causes a white suspension in the sample.
  • Page 53 • Add the content of one packet of HI 93722-0 Cyanuric Acid Reagent. Replace the cap and shake gently for about 10 seconds (dissolution is not complete). • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 45 seconds and press Read.

  • Page 54: Fluoride

    FLUORIDE SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition , SPADNS method.
  • Page 55 • Press Timer and the display will show the countdown prior to zeroing the blank or, alternatively, wait for two minutes and press Zero. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. •...

  • Page 56: Calcium Hardness

    CALCIUM HARDNESS SPECIFICATIONS Range 0.00 to 2.70 mg/L Resolution 0.01 mg/L Accuracy ±0.11 mg/L ±5% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the Standard Methods for the Examination of Water and Wastewater, Method edition, Calmagite method.
  • Page 57 • Add 1 drop of HI 93720C-0 EGTA solution to one cuvette (# 1), replace the cap and invert the cuvette several times to mix. This is the blank. • Place the blank (# 1) into the holder and close the lid. •...
  • Page 58 • Press the Unit key to change the current measurement unit. The results can be converted to French degrees (°f), German degrees (°dH) and English degrees (°E). • Press  or  to return to the measurement screen. Note: This test will detect any calcium contamination in the beaker, measuring syringes or sample cells. To test cleanliness, repeat the test multiple times until you obtain consistent results.

  • Page 59: Magnesium Hardness

    MAGNESIUM HARDNESS SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.11 mg/L ±5% of reading at 25 °C Typical EMC ±0.02 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the Standard Methods for the Examination of Water and Wastewater, Method edition, EDTA colorimetric method.
  • Page 60 10 mL 10 mL • Fill both cuvettes up to the 10 mL mark. • Add 1 drop of HI 93719C-0 EDTA solution to one cuvette (# 1), replace the cap and invert the cuvette several times to mix. This is the blank. •...
  • Page 61 • Press  or  to access the second level functions. • Press the Chem Frm key to convert the result in mg/L of Magnesium (Mg • Press the Unit key to change the current measurement unit. The results can be converted to French degrees (°f), German degrees (°dH) and English degrees (°E).

  • Page 62: Hydrazine

    HYDRAZINE SPECIFICATIONS Range 0 to 400 μg/L Resolution 1 μg/L Accuracy ±4% of full scale reading at 25 °C Typical EMC ±2 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385-88, p-Dimethylaminobenzaldehyde method.
  • Page 63 • Add 12 drops of the HI 93704-0 reagent to each cuvette. Replace the caps and shake gently to mix (about 30 seconds). • Place the blank (#1) into the holder and close the lid. • Press Timer and the display will show the countdown prior to zeroing the blank. The display will show “-0.0-”...

  • Page 64: Iodine

    IODINE SPECIFICATIONS Range 0.0 to 12.5 mg/L Resolution 0.1 mg/L Accuracy ±0.1 mg/L ±5% of reading at 25 °C Typical EMC ±0.1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition , DPD method.
  • Page 65 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and 30 seconds and press Read. When the timer ends the meter will perform the reading.

  • Page 66: Iron Hr

    IRON HIGH RANGE SPECIFICATIONS Range 0.00 to 5.00 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±2% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the EPA Phenantroline method 315B, for natural and treated waters. The reaction between iron and reagents causes an orange tint in the sample.
  • Page 67 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 3 minutes and press Read. When the timer ends the meter will perform the reading. •...

  • Page 68: Iron Lr

    IRON LOW RANGE SPECIFICATIONS Range 0 to 400 μg/L Resolution 1 μg/L Accuracy ±10 μg/L ±8% of reading at 25 °C Typical EMC ±1 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the TPTZ Method. The reaction between iron and the reagent causes a violet tint in the sample.
  • Page 69 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. 25 mL • Fill another graduated mixing cylinder up to the 25 mL mark with the sample. •...
  • Page 70 INTERFERENCES Interference may be caused by: Cadmium above 4.0 mg/L Chromium above 0.25 mg/L Chromium above 1.2 mg/L Cobalt above 0.05 mg/L Copper above 0.6 mg/L Cyanide above 2.8 mg/L Manganese above 50.0 mg/L Mercury above 0.4 mg/L Molybdenum above 4.0 mg/L Nickel above 1.0 mg/L Nitrite ion above 0.8 mg/L Sample pH should be between 3 and 4 to avoid developed color to fade or turbidity formation.

  • Page 71: Magnesium

    MAGNESIUM SPECIFICATIONS 0 to 150 mg/L Range Resolution 5 mg/L Accuracy ±5 mg/L ±3% of reading at 25 °C Light Source Tungsten lamp with narrow band interference filter @ 466 nm Method Adaptation of the Calmagite method . REQUIRED REAGENTS Code Description Quantity...
  • Page 72 • Remove the cuvette. 0.5 mL of sample • Using the other 1 mL syringe, add to the cuvette exactly 0.5 mL of sample. Note: Do not mix up the two syringes! • Replace the cap and invert several times to mix. •...

  • Page 73: Manganese Hr

    MANGANESE HIGH RANGE SPECIFICATIONS Range 0.0 to 20.0 mg/L Resolution 0.1 mg/L Accuracy ±0.2 mg/L ±3% of reading at 25 °C Typical EMC ±0.1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition, Periodate method.
  • Page 74 • Add the content of one packet of HI 93709B-0 Sodium Periodate reagent. Replace the cap and invert to mix with gently movements for 2 minutes. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 1 minute and 30 seconds and press Read.

  • Page 75: Manganese Lr

    MANGANESE LOW RANGE SPECIFICATIONS Range 0 to 300 μg/L 1 μg/L Resolution Accuracy ±10 μ/L ±3% of reading at 25 °C Typical EMC ±1 μg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the PAN Method. The reaction between manganese and the reagents causes an orange tint in the sample.
  • Page 76 • Add 0.2 mL of the HI 93748B-0 Alkaline-cyanide reagent solution to each cuvette, replace the caps and invert gently to mix for about 30 seconds. • Add 1 mL of the HI 93748C-0 0.1% PAN indicator solution to each cuvette, replace the caps and shake gently.
  • Page 77 • Insert the second cuvette with the reacted sample into the instrument. • Press Read to start the reading. The instrument displays the results in μ μ μ μ μ g/L of manganese. • Press  or  to access the second level functions. •...

  • Page 78: Molybdenum

    MOLYBDENUM SPECIFICATIONS Range 0.0 to 40.0 mg/L Resolution 0.1 mg/L ±0.3 mg/L ±5% of reading at 25 °C Accuracy Typical EMC ±0.1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Method Adaptation of the mercaptoacetic acid method. The reaction between molybdenum and the reagents causes a yellow tint in the sample.
  • Page 79 25 mL • Fill one graduated mixing cylinder up to the 25 mL mark with the sample. • Add the content of one packet of HI 93730A-0 molybdenum reagent, close the cylinder and invert it several times until completely dissolved. •...
  • Page 80 • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for five minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of molybdenum. •...

  • Page 81: Nickel Hr

    NICKEL HIGH RANGE SPECIFICATIONS Range 0.00 to 7.00 g/L Resolution 0.01 g/L ±0.07 ±4% of reading at 25 °C Accuracy Typical EMC ±0.02 g/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the photometric method. The reaction between nickel and the reagent causes a blue tint in the sample.
  • Page 82 • Remove the cuvette and add the content of one packet of HI 93726-0 reagent. Replace the cap and shake gently until completely dissolved. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 1 minute and press Read.

  • Page 83: Nickel Lr

    NICKEL LOW RANGE SPECIFICATIONS Range 0.000 to 1.000 mg/L Resolution 0.001 mg/L Accuracy ±0.010 mg/L ±7% of reading at 25 °C Typical EMC ±0.001 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the PAN method. The reaction between nickel and the reagents causes an orange tint in the sample.
  • Page 84 • Press Timer and the display will show a countdown prior to adding reagent C or, alternatively, wait for 15 minutes. Add one packet of HI 93740C-0 EDTA reagent to each beaker, cap and swirl to mix until completely dissolved. •...
  • Page 85 INTERFERENCES Interference may be caused by: must not be present must not be present above 32 mg/L above 1000 mg/L (as CaCO above 20 mg/L Cl¯ above 8000 mg/L above 20 mg/L above 40 mg/L above 15 mg/L F¯ above 20 mg/L above 10 mg/L above 500 mg/L above 400 mg/L...

  • Page 86: Nitrate

    NITRATE SPECIFICATIONS Range 0.0 to 30.0 mg/L Resolution 0.1 mg/L Accuracy ±0.5 mg/L ±10% of reading at 25 °C Typical EMC ±0.1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the cadmium reduction method. The reaction between nitrate and the reagent causes an amber tint in the sample.
  • Page 87 • Replace the cap and immediately shake vigorously up and down for exactly 10 seconds. Continue to mix by inverting the cuvette gently for 50 seconds, while taking care not to induce air bubbles. Powder will not completely dissolve. Time and way of shaking could sensitively affect the measurement.

  • Page 88: Nitrite Hr

    NITRITE HIGH RANGE SPECIFICATIONS Range 0 to 150 mg/L Resolution 1 mg/L Accuracy ±4 mg/L ±4% of reading at 25 °C Typical EMC ±1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the Ferrous Sulfate method. The reaction between nitrite and the reagent causes a greenish-brown tint in the sample.
  • Page 89 • Add the content of one packet of HI 93708-0 reagent. Replace the cap and shake gently until completely dissolved. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 10 minutes and press Read.

  • Page 90: Nitrite Lr

    NITRITE LOW RANGE SPECIFICATIONS Range 0.00 to 1.15 mg/L Resolution 0.01 mg/L Accuracy ±0.06 mg/L ±4% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the EPA Diazotization method 354.1 . The reaction between nitrite and the reagent causes a pink tint in the sample.
  • Page 91 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 6 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of nitrite.

  • Page 92: Dissolved Oxygen

    DISSOLVED OXYGEN SPECIFICATIONS Range 0.0 to 10.0 mg/L Resolution 0.1 mg/L Accuracy ±0.4 mg/L ±3% of reading at 25 °C Typical EMC ± 0.1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Adaptation of the Standard Methods for the Examination of Water and Wastewater, Method edition , Azide modified Winkler method.
  • Page 93 • Let the sample stand and the flocculent agent will start to settle. • After approximately 2 minutes, when the upper half of the bottle becomes limpid, add 10 drops of HI 93732C-0. • Replace the cap and invert the bottle until the settled flocculent dissolves completely. The sample is ready for measurement when it is yellow and completely limpid.

  • Page 94: Oxygen Demand, Chemical Hr

    OXYGEN DEMAND, CHEMICAL HIGH RANGE SPECIFICATIONS Range 0 to 15000 mg/L COD Resolution 10 mg/L ±220 @ 10000 mg/L Accuracy Typical EMC ±10 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Adaptation of the USEPA 410.4 approved method for the COD determination on Method surface waters and wastewaters.
  • Page 95 • Choose a homogeneous sample. Samples containing settleable solids need to be homogenized with a blender. • Preheat the Hanna Reactor HI 839800 to 150 °C (302°F). For correct use of the reactor follow Reactor Instruction Manual. Use of the optional HI 740217 safety shield is strongly recommended. DO NOT USE AN OVEN OR MICROWAVE samples may leak and generate a corrosive and possibly explosive atmosphere.
  • Page 96 • Select the Oxygen Demand, Chemical HR (COD) method following one of the procedures described in the Method Selection section (see page 12). • Place the COD vial adapter in the cuvet holder and ensure that the adapter is well fit inside. •...

  • Page 97: Oxygen Demand, Chemical Mr

    OXYGEN DEMAND, CHEMICAL MEDIUM RANGE SPECIFICATIONS Range 0 to 1500 mg/L COD Resolution 1 mg/L ±22 @ 1000 mg/L Accuracy Typical EMC ±1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Adaptation of the USEPA 410.4 approved method for the COD determination on Method surface waters and wastewaters.
  • Page 98 • Choose a homogeneous sample. Samples containing settleable solids need to be homogenized with a blender. • Preheat the Hanna Reactor HI 839800 to 150 °C (302°F). For correct use of the reactor follow Reactor Instruction Manual. Use of the optional HI 740217 safety shield is strongly recommended. DO NOT USE AN OVEN OR MICROWAVE samples may leak and generate a corrosive and possibly explosive atmosphere.

  • Page 99: Cod Mr

    • Select the Oxygen Demand, Chemical MR (COD) method following one of the procedures described in the Method Selection section (see page 12). • Place the COD vial adapter in the cuvet holder and ensure that the adapter is well fit inside. •...

  • Page 100: Oxygen Demand, Chemical Lr

    OXYGEN DEMAND, CHEMICAL LOW RANGE SPECIFICATIONS Range 0 to 150 mg/L COD Resolution 1 mg/L ±4 @ 150 mg/L Accuracy Typical EMC ±1 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 420 nm Adaptation of the USEPA 410.4 approved method for the COD determination on Method surface waters and wastewaters.
  • Page 101 • Choose a homogeneous sample. Samples containing settleable solids need to be homogenized with a blender. • Preheat the Hanna Reactor HI 839800 to 150 °C (302°F). For correct use of the reactor follow Reactor Instruction Manual. The optional HI 740217 safety shield is strongly recommended. DO NOT USE AN OVEN OR MICROWAVE samples may leak and generate a corrosive and possibly explosive atmosphere.
  • Page 102 • Select Oxygen Demand, Chemical LR (COD) method following one of the procedures described in the Method Selection section (see page 12). • Place the COD vial adapter in the cuvet holder and ensure that the adapter is well fit inside. •...

  • Page 103: Ozone

    OZONE SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.02 mg/L ±3% of reading at 25 °C ±0.01 mg/L Typical EMC Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Colorimetric DPD Method. The reaction between ozone and the DPD reagent causes a pink tint in the sample.
  • Page 104 • Press the Zero key. The display will show “-0.0-” the meter is zeroed and ready for measurement. • Remove the cuvette. • Add the content of one packet of HI 93757-0 Ozone Reagent. Replace the cap and shake gently for 20 seconds.
  • Page 105 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette. • Add the content of one packet of the optional reagent HI 93703-52-0 Glycine Powder. Replace the cap and shake gently until completely dissolved.
  • Page 106 SPECIFICATIONS Range 6.5 to 8.5 pH Resolution 0.1 pH Accuracy ±0.1 pH at 25 °C Typical EMC ±0.1 pH Deviation Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Phenol Red method. The reaction with the reagent causes a yellow to red tint in the sample.
  • Page 107 • Remove the cuvette and add 5 drops of HI 93710-0 Phenol Red Indicator. Replace the cap and mix the solution. • Reinsert the cuvette into the instrument. • Press the Read key to start the reading. The instrument displays the pH value.

  • Page 108: Phosphate Hr

    PHOSPHATE HIGH RANGE SPECIFICATIONS 0.0 to 30.0 mg/L Range Resolution 0.1 mg/L Accuracy ±1 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.1 mg/L Light Source Tungsten lamp with narrow band interference filter @ 525 nm Adaptation of the Standard Methods for the Examination of Water and Wastewater, Method edition, Amino Acid method.
  • Page 109 • Add the content of one packet of HI 93717B-0 Phosphate HR Reagent B to the cuvette. Replace the cap and shake gently until completely dissolved. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 5 minutes and press Read.

  • Page 110: Phosphate Lr

    PHOSPHATE LOW RANGE SPECIFICATIONS Range 0.00 to 2.50 mg/L Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.01 mg/L Tungsten lamp with narrow band interference filter @ 610 nm Light Source Method Adaptation of the Ascorbic Acid method. The reaction between phosphate and the reagent causes a blue tint in the sample.
  • Page 111 • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 3 minutes and press Read. When the timer ends the meter will perform the reading. The instrument displays concentration in mg/L of phosphate (PO ¯).

  • Page 112: Phosphorus

    PHOSPHORUS SPECIFICATIONS Range 0.0 to 15.0 mg/L Resolution 0.1 mg/L Accuracy ±0.3 mg/L ±4% of reading at 25 °C Typical EMC Dev. ±0.2 mg/L Light Source Tungsten lamp with narrow band interference filter @ 525 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition, Amino Acid method.
  • Page 113 • Add the content of one packet of HI 93706B-0 Phosphorus Reagent B (Amino Acid) to the cuvette. Replace the cap and shake gently until completely dissolved. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 5 minutes and press Read.

  • Page 114: Potassium Hr

    POTASSIUM HIGH RANGE SPECIFICATIONS Range 20 to 200 mg/L Resolution 5 mg/L Accuracy ±30 mg/L ±7% of reading at 25 °C Typical EMC ±5 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the Turbidimetric Tetraphenylborate method. The reaction between Potassium and reagents causes turbidity in the sample.
  • Page 115 • Remove the cuvette and add the content of one packet of HI 93750B-0 reagent. Replace the cap and gently mix for one minute by slowly turning the cuvette upside down. • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 2 minutes and press Read.

  • Page 116: Potassium Mr

    POTASSIUM MEDIUM RANGE SPECIFICATIONS Range 10 to 100 mg/L Resolution 2.5 mg/L Accuracy ±15 mg/L ±7% of reading at 25 °C Typical EMC ±2.5 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the Turbidimetric Tetraphenylborate method. The reaction between Potassium and reagents causes turbidity in the sample.
  • Page 117 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette and add the content of one packet of HI 93750B-0 reagent. Replace the cap and gently mix for one minute by slowly turning the cuvette upside down.

  • Page 118: Potassium Lr

    POTASSIUM LOW RANGE SPECIFICATIONS Range 0.0 to 20.0 mg/L Resolution 0.5 mg/L Accuracy ±3.0 mg/L ±7% of reading at 25 °C Typical EMC ±0.5 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the Turbidimetric Tetraphenylborate method. The reaction between Potassium and reagents causes turbidity in the sample.
  • Page 119 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette and add the content of one packet of HI 93750B-0 reagent. Replace the cap and gently mix for one minute by slowly turning the cuvette upside down.

  • Page 120: Silica

    SILICA SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 610 nm Method Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Blue method.
  • Page 121 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette and add the content of one packet of HI 93705C-0 Amino acid reagent and shake until it is completely dissolved.

  • Page 122: Silver

    SILVER SPECIFICATIONS Range 0.000 to 1.000 mg/L Resolution 0.005 mg/L Accuracy ±0.020 mg/L ±5% of reading at 25 °C Typical EMC ± 0.001 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm. Method Adaptation of the PAN method. The reaction between silver and reagents causes an orange tint in the sample.
  • Page 123 • Add exactly 1.0 mL of HI 93737B-0 Buffer reagent to the second beaker (the sample) and swirl gently to mix. Press Timer and the display will show the countdown prior to adding reagent C or, alternatively, wait for 2 minutes. •...
  • Page 124 • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. 10 mL • Fill a second cuvette up to the mark with 10 mL of the reacted sample. • Add 3 drops of Dispersing Agent (HI 93703-51), replace the cap and invert gently to mix for about 10 seconds.

  • Page 125: Sulfate

    SULFATE SPECIFICATIONS Range 0 to 100 mg/L Resolution 5 mg/L Accuracy ±5 mg/L ±3% of reading at 25 °C Light Source Tungsten lamp with narrow band interference filter @ 466 nm Method Sulfate is precipitated with barium chloride crystals. Light absorbance of the suspension is measured.
  • Page 126 • Add the content of one packet of HI 93751-0 Indicator reagent. • Replace the cap and invert gently to mix for 1 minute (about 30 inversions). • Reinsert the cuvette into the instrument. • Press Timer and the display will show the countdown prior to the measurement or, alternatively, wait for 5 minutes and press Read.

  • Page 127: Zinc

    ZINC SPECIFICATIONS Range 0.00 to 3.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading at 25 °C Typical EMC ±0.01 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm Method Adaptation of the Standard Methods for the Examination of Water and Wastewater, edition, Zincon method.
  • Page 128 • Place the cap and insert the cuvette into the instrument and close the lid. • Press the Zero key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. • Remove the cuvette and add 0.5 mL of HI 93731B-0 Cyclohexanone to the cuvette.

  • Page 129: Errors And Warnings

    ERRORS AND WARNINGS The instrument shows clear warning messages when erroneous conditions appear and when measured values are outside the expected range. These messages are described below. No Light: The light source is not functioning properly. Light Leak: There is an excess amount of ambient light reaching the detector.

  • Page 130: Data Management

    DATA MANAGEMENT The analyzed data can be managed using Hanna’s product HI92000, Windows Compatible Software. ® Windows is registered Trademark of "Microsoft Co." ®...

  • Page 131: Standard Methods

    STANDARD METHODS Description Range Method Aluminum 0.00 to 1.00 mg/L Aluminon Alkalinity 0 to 500 mg/L Colorimetric Ammonia MR 0.00 to 10.00 mg/L Nessler Ammonia LR 0.00 to 3.00 mg/L Nessler Bromine 0.00 to 8.00 mg/L Calcium 0 to 400 mg/L Oxalate Chlorine, Free 0.00 to 2.50 mg/L...

  • Page 132: Accessories

    Phosphorus 0.0 to 15.0 mg/L Amino Acid Potassium HR 20 to 200 mg/L Turbidimetric Potassium MR 10 to 100 mg/L Turbidimetric Potassium LR 0.0 to 20.0 mg/L Turbidimetric Silica 0.00 to 2.00 mg/L Heteropoly Blue Silver 0.000 to 1.000 mg/L Sulfate 0 to 100 mg/L Turbidimetric...
  • Page 133 HI 93717-01 100 phosphate HR tests HI 93717-03 300 phosphate HR tests HI 93718-01 100 iodine tests HI 93718-03 300 iodine tests HI 93719-01 100 Mg hardness tests HI 93719-03 300 Mg hardness tests HI 93720-01 100 Ca hardness tests HI 93720-03 300 Ca hardness tests HI 93721-01 100 iron HR tests HI 93721-03 300 iron HR tests...
  • Page 134 HI 93754D-25 25 COD, LR, Dichromate Method, Mercury Free test HI 93754E-25 25 COD, MR, Dichromate Method Mercury Free test HI 93754F-25 25 COD, LR ISO, Dichromate Method test HI 93754G-25 25 COD, MR ISO**, Dichromate Method test HI 93755-01 100 alkalinity tests HI 93755-03 300 alkalinity tests HI 937521-01 50 calcium tests HI 937521-03 150 calcium tests...

  • Page 135: Warranty

    If the repair is not covered by the warranty, you will be notified of the charges incurred. If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number from the Customer Service Department and then send it with shipment costs prepaid. When shipping any instrument, make sure it is properly packaged for complete protection.
  • Page 136 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...

Table of Contents

Save PDF
