Instruction Manual
HI 83206
Multiparameter Bench
Photometer
for Environmental Testing
This Instrument is in
w w w . h a n n a i n s t . c o m
Compliance with the CE Directives
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HI 83206 and is the answer not in the manual?

Questions and answers

Related Manuals for Hanna Instruments HI 83206

Summary of Contents for Hanna Instruments HI 83206

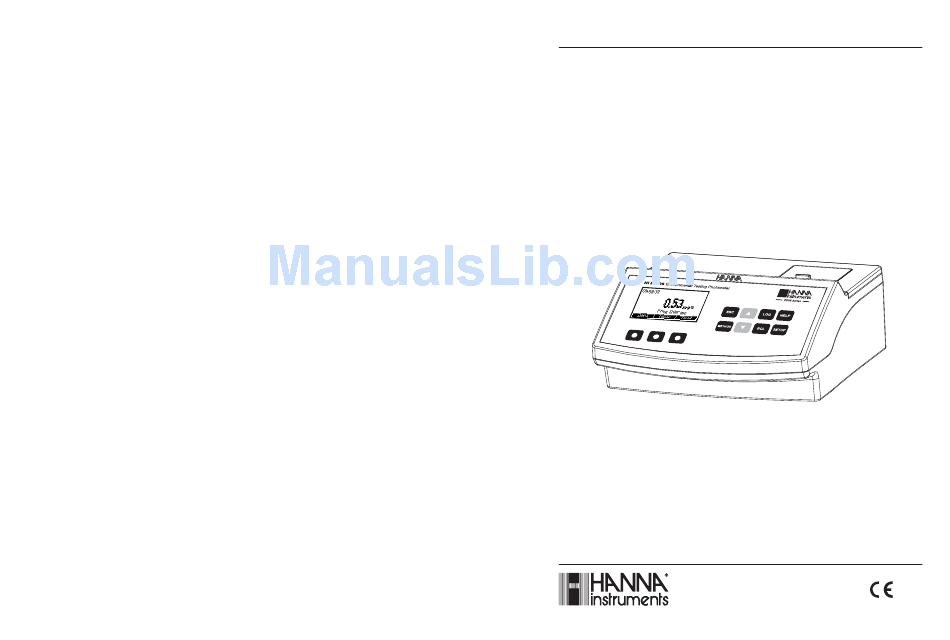

  • Page 1 Instruction Manual HI 83206 Multiparameter Bench Photometer for Environmental Testing This Instrument is in w w w . h a n n a i n s t . c o m Compliance with the CE Directives...

  • Page 2: Table Of Contents

    Dear Customer, PRELIMINARY EXAMINATION Thank you for choosing a Hanna product. Please read this instruction manual carefully before using the instrument. This manual will provide you with the necessary information for the correct use of the Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your Dealer.

  • Page 3: Precision And Accuracy

    Where: SPECIFICATIONS -log I/I =Absorbance (A) =intensity of incident light beam Light Life Life of the instrument I =intensity of light beam after absorption Light Detector Silicon Photocell ε =molar extinction coefficient at wavelength λ λ Environment 0 to 50°C (32 to 122°F); =molar concentration of the substance max 90% RH non-condensing =optical path through the substance...

  • Page 4: Functional Description

    KEYPAD DESCRIPTION FUNCTIONAL DESCRIPTION The keypad contains 8 direct keys and 3 functional keys with the following functions: INSTRUMENT DESCRIPTION Press to perform the function displayed above it. The functions are screen related. Press to exit the current screen. Press to access the select method menu. Press to move up in a menu or a help screen, to increment a set value, to access second level functions.

  • Page 5: Tips For An Accurate Measurement

    USING LIQUID AND POWDER REAGENTS TIPS FOR AN ACCURATE MEASUREMENT • Proper use of the dropper: The instructions listed below should be carefully followed during testing to ensure most accurate results. (a) for reproducible results, tap the dropper on the table for several times and wipe the outside of the dropper tip with a cloth.

  • Page 6: Dissolved Oxygen

    Pay attention to push the cuvette completely down in the holder. HEALTH & SAFETY The chemicals contained in the reagent kits may be hazardous if improperly handled. Read the Material Safety Data Sheet (MSDS) before performing tests. Safety equipment: Wear suitable eye protection and clothing when required, and follow instructions carefully. Reagent spills: If a reagent spill occurs, wipe up immediately and rinse with plenty of water.

  • Page 7: Operational Guide

    DATA MANAGEMENT OPERATIONAL GUIDE The instrument features a data log function to help you keep track of all your analysis. The data log can hold 200 individual measurements. Storing, viewing and deleting the data is possible using LOG and POWER CONNECTION AND BATTERY MANAGEMENT RCL keys.

  • Page 8: Setup

    Date / Time S E T U P S E T U P S E T U P S E T U P S E T U P This option is used to set the instrument’s date and time. In the Setup mode the instrument’s parameters can be changed. Some parameters affect the measuring Press Modify functional key to change the date/time.
  • Page 9 Instrument ID AMMONIA MEDIUM RANGE Option: 0 to 9999. This option is used to set the instrument’s ID (identification number). SPECIFICATIONS The instrument ID is used while exchanging data with a PC. Range 0.00 to 10.00 mg/L Press Modify functional key to access the instrument ID screen. Press the Resolution 0.01 mg/L keys in order to set the desired value.
  • Page 10 • Remove the cuvette. AMMONIA LOW RANGE SPECIFICATIONS • Add 4 drops of HI 93715A-0 First reagent (6 drops for seawater Range 0.00 to 3.00 mg/L analysis). Replace the cap and mix the solution. Resolution 0.01 mg/L Accuracy ±0.04 mg/L ±4% of reading Typical EMC ±0.01 mg/L Deviation...
  • Page 11 • Remove the cuvette. FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE FREE CHLORINE SPECIFICATIONS • Add 4 drops of HI 93700A-0 First reagent (6 drops for seawater Range 0.00 to 2.50 mg/L analysis). Replace the cap and mix the solution. Resolution 0.01 mg/L Accuracy...
  • Page 12 • Press ZERO key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. • Reinsert the cuvette into the instrument. • Press READ to start the reading. The instrument displays the results • Remove the cuvette. in mg/L of free chlorine.

  • Page 13: Total Chlorine

    • Press ZERO key. The meter will show “-0.0-” when the meter is zeroed and ready for measurement. TOTAL CHLORINE SPECIFICATIONS Range 0.00 to 3.50 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading • Remove the cuvette. Typical EMC ±0.01 mg/L Powder reagents procedure Deviation...
  • Page 14 • Press TIMER and the display will show the countdown prior to the measurement or, alternatively, wait CHROMIUM VI HIGH RANGE for 2 minutes and 30 seconds and press READ. When the timer ends the meter will perform the reading. SPECIFICATIONS Range 0 to 1000 µg/L...
  • Page 15 CHROMIUM VI LOW RANGE • Reinsert the cuvette into the instrument. SPECIFICATIONS Range 0 to 300 µg/L • Press TIMER and the display will show the countdown prior to the Resolution 1 µg/L measurement or, alternatively, wait for 6 minutes and press READ. Accuracy ±1 µg/L ±4% of reading When the timer ends the meter will perform the reading.

  • Page 16: Color Of Water

    COLOR OF WATER • Reinsert the cuvette into the instrument. SPECIFICATIONS • Press TIMER and the display will show the countdown prior to the measurement or, alternatively, wait for 6 minutes and press Range 0 to 500 PCU (Platinum Cobalt Units) READ.
  • Page 17 • Fill the second cuvette up to the mark with unfiltered sample and COPPER HIGH RANGE 10 mL replace the cap. This is the apparent color. SPECIFICATIONS • Filter 10 mL of sample through a filter with a 0.45 µm membrane into the Range 0.00 to 5.00 mg/L third cuvette, up to the 10 mL mark and replace the cap.
  • Page 18 • Remove the cuvette. COPPER LOW RANGE • Add the content of one packet of HI 93702-0 Bicinchoninate. SPECIFICATIONS Replace the cap and shake gently for about 15 seconds. Range 0 to 1000 μg/L Resolution 1 μg/L Accuracy ±10 μg/L ±5% of reading Typical EMC ±1 μg/L Deviation...
  • Page 19 • Remove the cuvette. CYANURIC ACID • Add the content of one packet of HI 93747-0 Bicinchoninate. SPECIFICATIONS Replace the cap and shake gently for about 15 seconds. Range 0 to 80 mg/L Resolution 1 mg/L ±1 mg/L ±15% of reading Accuracy Typical EMC ±1 mg/L...
  • Page 20 • Fill a second cuvette with 10 mL of the reacted sample up to the MOLYBDENUM 10 mL mark. Replace the cap. SPECIFICATIONS Range 0.0 to 40.0 mg/L Resolution 0.1 mg/L • Reinsert the cuvette into the instrument. Accuracy ±0.3 mg/L ±5% of reading Typical EMC ±0.1 mg/L Deviation...
  • Page 21 • Press TIMER and the display will show the countdown prior to the measurement or, alternatively, wait for 5 minutes and press READ. When the timer ends the meter will perform the reading. The instrument • Fill one graduated mixing cylinder up to the 25 mL displays concentration in mg/L of molybdenum.
  • Page 22 • Reinsert the cuvette into the instrument. NICKEL HIGH RANGE • Press TIMER and the display will show the countdown prior SPECIFICATIONS to the measurement or, alternatively, wait for 1 minute and Range 0.00 to 7.00 g/L press READ. When the timer ends the meter will perform the Resolution 0.01 g/L reading.
  • Page 23 • Press TIMER and the display will show a countdown prior to adding reagent C or, alternatively, wait NICKEL LOW RANGE for 15 minutes. Add one packet of HI 93740C-0 EDTA reagent to each beaker, cap and swirl to mix until completely dissolved.
  • Page 24 INTERFERENCES NITRATE Interference may be caused by: must not be present SPECIFICATIONS must not be present Range 0.0 to 30.0 mg/L above 32 mg/L Resolution 0.1 mg/L above 1000 mg/L (as CaCO Accuracy ±0.5 mg/L ±10% of reading above 20 mg/L Typical EMC ±0.1 mg/L Deviation...
  • Page 25 NITRITE HIGH RANGE • Replace the cap and immediately shake vigorously up and down for exactly 10 seconds. Continue to mix by SPECIFICATIONS inverting the cuvette gently for 50 seconds, while taking Range 0 to 150 mg/L care not to induce air bubbles. Powder will not com- Resolution 1 mg/L pletely dissolve.
  • Page 26 NITRITE LOW RANGE • Reinsert the cuvette into the instrument. SPECIFICATIONS Range 0.00 to 0.35 mg/L • Press TIMER and the display will show the countdown prior Resolution 0.01 mg/L to the measurement or, alternatively, wait for 10 minutes Accuracy ±0.02 mg/L ±4% of reading and press READ.
  • Page 27 DISSOLVED OXYGEN • Reinsert the cuvette into the instrument. SPECIFICATIONS Range 0.0 to 10.0 mg/L • Press TIMER and the display will show the countdown prior Resolution 0.1 mg/L to the measurement or, alternatively, wait for 6 minutes ±0.4 mg/L ±3% of reading Accuracy and press READ.
  • Page 28 • Let the sample stand and the flocculent agent will start to settle. SPECIFICATIONS x 10 • After approximately 2 minutes, when the upper half of the bottle becomes Range 6.5 to 8.5 pH limpid, add 10 drops of HI 93732C-0. Resolution 0.1 pH ±0.1 pH...
  • Page 29 PHOSPHATE HIGH RANGE • Reinsert the cuvette into the instrument. SPECIFICATIONS Range 0.0 to 30.0 mg/L Resolution 0.1 mg/L • Press the READ key to start the reading. The instrument displays Accuracy ±1 mg/L ±4% of reading the pH value. Typical EMC Dev.

  • Page 30: Phosphate Lr

    • Add the content of one packet of HI 93717B-0 Phosphate PHOSPHATE LOW RANGE HR Reagent B to the cuvette. Replace the cap and shake gently until completely dissolved. SPECIFICATIONS Range 0.00 to 2.50 mg/L Resolution 0.01 mg/L • Reinsert the cuvette into the instrument. Accuracy ±0.04 mg/L ±4% of reading Typical EMC Dev.

  • Page 31: Phosphorus

    PHOSPHORUS • Reinsert the cuvette into the instrument. SPECIFICATIONS Range 0.0 to 15.0 mg/L • Press TIMER and the display will show the countdown prior to the Resolution 0.1 mg/L measurement or, alternatively, wait for 3 minutes and press READ. Accuracy ±0.3 mg/L ±4% of reading When the timer ends the meter will perform the reading.
  • Page 32 • Add the content of one packet of HI 93706B-0 Phosphorus SILICA Reagent B (Amino Acid) to the cuvette. Replace the cap and shake gently until completely dissolved. SPECIFICATIONS Range 0.00 to 2.00 mg/L Resolution 0.01 mg/L • Reinsert the cuvette into the instrument. ±0.03 mg/L ±3% of reading Accuracy Typical EMC...
  • Page 33 INTERFERENCES • Place the cuvette into the holder and close the lid. Interference may be caused by: Phosphate above 60 mg/L • Press ZERO key. The display will show “-0.0-” when the Phosphate above 75 mg/L meter is zeroed and ready for measurement. Sulfide and high concentration of iron Eliminate color and turbidity interferences by zeroing the meter with the original water sample.
  • Page 34 SILVER SPECIFICATIONS • Add exactly 1.0 mL of HI 93737B-0 Buffer reagent to the second beaker Range 0.000 to 1.000 mg/L (the sample) and swirl gently to mix. Resolution 0.001 mg/L Accuracy ±0.005 mg/L ±10% of reading Typical EMC ± 0.001 mg/L Deviation Light Source Tungsten lamp with narrow band interference filter @ 575 nm.
  • Page 35 • Press ZERO key. The display will show “-0.0-” when the meter is zeroed and ready for measurement. ZINC SPECIFICATIONS Range 0.00 to 3.00 mg/L Resolution 0.01 mg/L Accuracy ±0.03 mg/L ±3% of reading Typical EMC ±0.01 mg/L Deviation 10 mL •...
  • Page 36 ERRORS AND WARNINGS • Place the cap and insert the cuvette into the instrument and close the lid. • Press ZERO key. The display will show “-0.0-” when the The instrument shows clear warning messages when erroneous conditions appear and when measured values are meter is zeroed and ready for measurement.

  • Page 37: Ammonia Mr

    Phosphorus 0.0 to 15.0 mg / L Amino Acid DATA MANAGEMENT Silica 0.00 to 2.00 mg/L Heteropoly Blue Silver 0.000 to 1.000 mg/L The analyzed data can be managed using Hanna’s product HI92000, Windows Compatible Software. ® Zinc 0.00 to 3.00 mg/L Zincon ACCESSORIES REAGENT SETS...

  • Page 38: Warranty

    HI 93749-03 300 chromium VI LR tests of the charges incurred. OTHER ACCESSORIES If the instrument is to be returned to Hanna Instruments, first obtain a Returned Goods Authorization Number HI 731318 cloth for wiping cuvettes (4 pcs) from the Customer Service Department and then send it with shipment costs prepaid. When shipping any...
  • Page 39 SALES AND TECHNICAL SERVICE CONTACTS Australia: Tel. (03) 9769.0666 • Fax (03) 9769.0699 e-mail: hannains@hannainst.com.au China: Tel. (10) 88570068 • Fax (10) 88570060 e-mail: hannachina@vip.sina.com Egypt: Tel. & Fax (02) 2758.683 e-mail: hannaegypt@go.com.eg Germany: Tel. (07851) 9129-0 • Fax (07851) 9129-99 e-mail: hannager@aol.com Greece: Tel.
