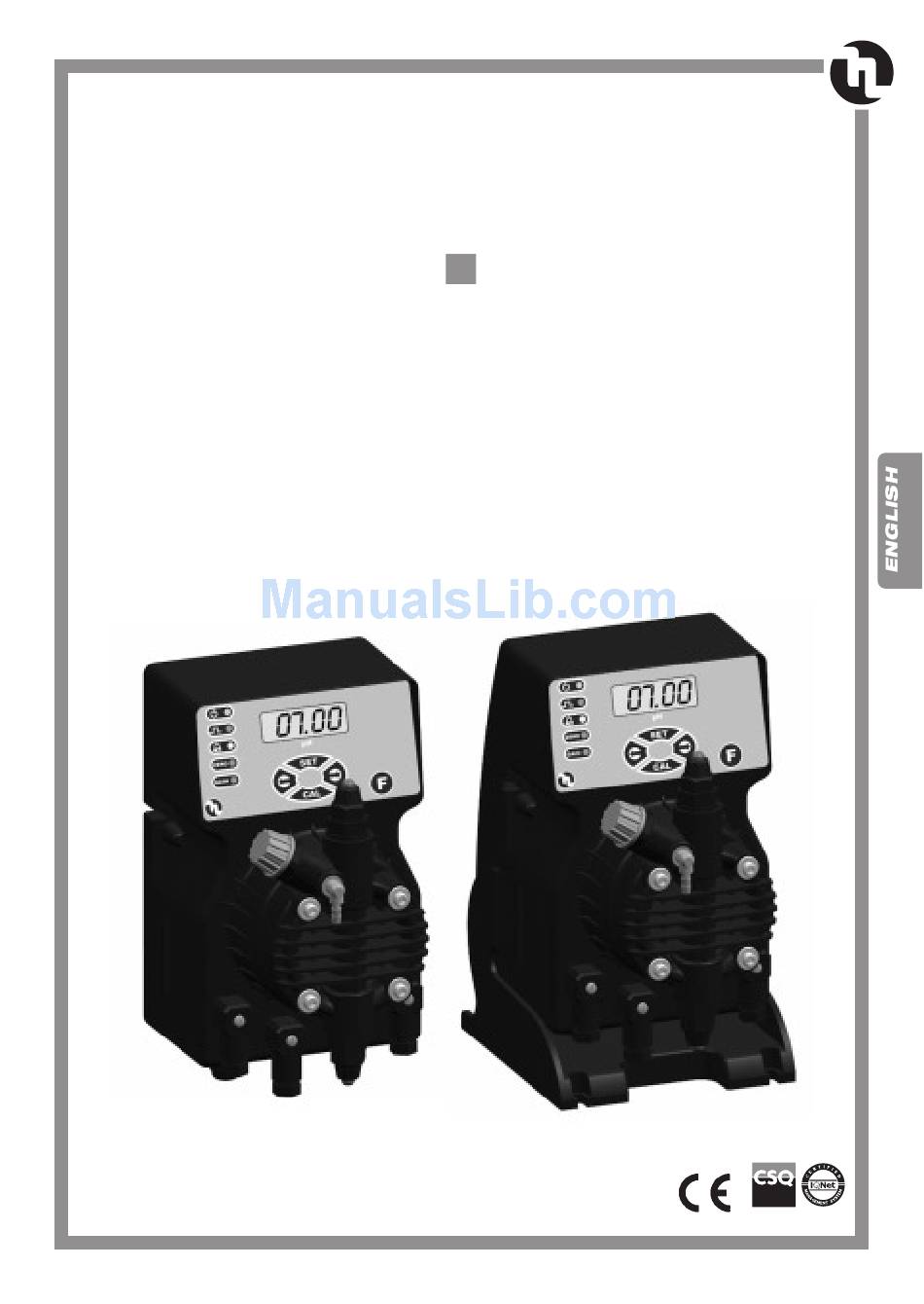

- Page 1 POMPE DOSATRICI SERIE DLX & DLXB-pH/M • DLX & DLXB-Rx/M NORME DI INSTALLAZIONE, USO E MANUTENZIONE DLX & DLXB-pH/M • DLX & DLXB-Rx/M SERIES METERING PUMPS OPERATING INSTRUCTIONS AND MAINTENANCE UNI EN ISO 9001:2000 9190.ETAD...
-
Page 2: Table Of Contents
INDEX 1.0 - HINTS AND WARNING PAG. 18 1.1 - WARNING 1.2 - SHIPPING AND TRANSPORTING THE PUMP 1.3 - PROPER USE OF THE PUMP 1.4 - RISKS 1.5 - TOXIC AND/OR DANGEROUS LIQUID DOSAGE 1.6 - ASSEMBLING AND DISMANTLING THE PUMP 2.0 - DLX AND DLXB SERIES METERING PUMPS 2.1 - OPERATION 2.2 - COMMON FEATURES... -
Page 3: Warning
1.0 - HINTS AND WARNINGS Please read the warning notices given in this section very carefully, because they provide important information regarding safety in installation, use and maintenance of the pump. • Keep this manual in a safe place, so that it will always be available for further consultation. •... -
Page 4: Toxic And/Or Dangerous Liquid Dosage
1.5 - TOXIC AND/OR DANGEROUS LIQUID DOSAGE To avoid risk from contact with the hazardous liquids or toxic fumes, always adhere to the notes in this instruc- tion manual: • Follow the instructions of the dosing liquid manufacturer. • Check the hydraulic part of the pump and use it only if it is in perfect condition. •... -
Page 5: Dlx And Dlxb Series Metering Pumps
OVERALL DIMENSIONS ( Fig. 1) 150 mm 120 mm 127 mm 192 mm DLX (wall mounting) DLXB (basement mounting) 2.0 - DLX AND DLXB SERIES METERING PUMPS 2.1 - OPERATION The metering pump is activated by a teflon diaphragm mounted on a piston of an electromagnet. When the piston of the electromagnet is attracted, a pressure is produced in the pump body with an expulsion of liquid from the discharge valve. -
Page 6: Liquid Ends Materials
2.3 - LIQUID ENDS MATERIALS - DIAPHRAGM: PTFE - PUMP HEAD: Polypropylene; upon request: PVC, 316 Stainless Steel, PTFE, PVDF. - NIPPLES: polypropylene - FILTER: polypropylene - INJECTION NIPPLE: polypropylene - SUCTION HOSE: PVC - flexible - DISCHARGE HOSE: polyethylene - VALVES: “lip”type FPM (Viton ®... -
Page 7: Installation
3.0 - INSTALLATION a. - Install the pump in a dry place and well away from sources of heat and, in any case, at environmental tem- peratures not exceeding 40°C. The minimum operating temperature depends on the liquid to be pumped, bearing in mind that it must always remain in a liquid state. -
Page 8: Injection Valve Installation Diagram
Fig. 8 Whenever the pump is dismantled from the pipework, you will be well advised to replace the caps on the connectors to avoid residual liquid being spilled. Before attaching the delivery hose to the plant, prime the metering pump by going through the sequence shown in Fig. 8. Before finalizing the installation of the dis- charge hose, make sure that the pump strokes will not cause it to move and bump into rigid bodies. -
Page 9: Wiring Connection And Output Connector Functions
3.2 - WIRING CONNECTION AND OUTPUT CONNECTOR FUNCTIONS Fig. 10 Female service connector wire assembly Functions and technical informations Level probe connection Configuration: To level Pin 1 = No connection probe “ 2 = No connection “ 3 = Level probe wire “... -
Page 10: Maintenance
4.0 - MAINTENANCE 1. Periodically check the chemical tank level to avoid the pump operating without liquid. This would not dam- age the pump, but may damage the process plant due to lack of chemicals. 2. Check the pump operating condition at least every 6 months, pump head position, screws, bolts and seals; check more frequently where aggressive chemicals are pumped, especially: - pulse and power L.E.D.;... -
Page 11: Microcontrolled Metering Pump With Ph Controller
DLX-pH/M • DLXB-pH/M Fig. 13 6.0 - MICROCONTROLLED METERING PUMP WITH PH CONTROLLER This unit is dosing pump with integral pH controller designed to measure, control and regulate the pH value. The pump works on an ON/OFF system controlled by a microcontroller to stop dosing once the pH value reach- es set point. -
Page 12: Level Control
6.4 – LEVEL CONTROL The dosing pump is supplied with level control setting and upon request floating level switch. When the level of the additive is lower than the switch, level alarm and yellow led are ON: the pump is OFF. The level control alarm goes ON with 5 seconds delay. -
Page 13: Activation/Disactivation Of The Functions
6.10 – ACTIVATION/DISACTIVATION OF THE FUNCTIONS Pushing the F button, on display will appear the operating function (the first is F1) and its corresponding state. D means disactivated and A means activated. With the RIGHT button it’s possible to activate the function, while with the LEFT button to disactivate. To confirm the choice press F and if the function have been change this is recorded, otherwise it goes to the next function up to F3 then the pump exits from the function menu and goes in measuring mode. -
Page 14: Pump Controls
DLX-Rx/M • DLXB-Rx/M Fig. 15 7.0 - MICROCONTROLLED METERING PUMP WITH Rx CONTROLLER This unit is dosing pump with integral Rx controller designed to measure, control and regulate the Rx value. The pump works on an ON/OFF system controlled by a microcontroller to stop dosing once the Rx value reaches set point. -
Page 15: Level Control
7.4 – LEVEL CONTROL The dosing pump is supplied with level control setting and upon request floating level switch. When the level of the additive is lower than the switch, level alarm and yellow led are ON: the pump is OFF. The level control alarm goes ON with 5 seconds delay. -
Page 16: Activation/Disactivation Of The Functions
7.10 – ACTIVATION/DISACTIVATION OF THE FUNCTIONS Pushing the F button, on display will appear the operating function (the first is F1) and its corresponding state. D means disactivated and A means activated. With the RIGHT button it’s possible to activate the function, while with the LEFT button to disactivate. To confirm the choice press F and if the function have been change this is recorded, otherwise it goes to the next function up to F3 then the pump exits from the function menu and goes in measuring mode. -
Page 17: Trouble Shooting Common To Dlx - Dlxb Series Pumps
8.0 - TROUBLE-SHOOTING COMMON TO DLX - DLXB SERIES PUMPS 8.1 - MECHANICAL FAULTS As the system is quite robust there are no apparent mechanical problems. Occasionally there might be a loss of liquid from the nipple because the tube nut has loosened, or more simply the discharge tubing-has broken. Very rarely there may be losses caused by the breakage of the membrane, or by the membrane seals in which case they have to be replaced by disassembling the four screws of the pump head fig. - Page 18 Serie DLX Series POS. ELENCO DEI PARTICOLARI SPARE PARTS LIST CASSA CASING COPERCHIO POSTERIORE BACK COVER 2 BIS COPERCHIO POSTERIORE - BASAMENTO BACK COVER - BASEMENT GUARNIZIONE COPERCHIO POSTERIORE BACK COVER GASKET CORPO POMPA PUMP HEAD ELETTROMAGNETE ELECTROMAGNET SCHEDA ELETTRONICA PC BOARD PELLICOLA SERIGRAFATA PANNELLO COMANDI CONTROL PANEL SERIGRAPHY FILM...
- Page 19 Serie DLXB Series POS. ELENCO DEI PARTICOLARI SPARE PARTS LIST CASSA CASING COPERCHIO POSTERIORE BACK COVER 2 BIS COPERCHIO POSTERIORE - BASAMENTO BACK COVER - BASEMENT GUARNIZIONE COPERCHIO POSTERIORE BACK COVER GASKET CORPO POMPA PUMP HEAD ELETTROMAGNETE ELECTROMAGNET SCHEDA ELETTRONICA PC BOARD PELLICOLA SERIGRAFATA PANNELLO COMANDI CONTROL PANEL SERIGRAPHY FILM...
- Page 20 VALVOLE - VALVES Valvole di iniezione complete di raccordo Complete injection valves VALVOLA INIEZIONE STD. fino a 20 l/h VALVOLA INIEZIONE 1/2” 50 l/h VALVOLA INIEZIONE 90° fino a 20 l/h VALVOLA INIEZ. A SFERA fino a 20 l/h STD. INJECTION VALVE up to 20 l/h 1/2”...
- Page 21 Corpo pompa completo: Corpo pompa con P.P. - PVC - Acciaio inox - PTFE spurgo manuale Complete Pump Head: Manual air bleed P.P. - PVC - Stainless Steel - PTFE pump head 1201/1202 1302 2810/2812 8301 1703 2501 1903 2813÷2818 3900÷3907 8301 2810/2812...
