Thank you for purchasing TPI brand products. The TPI 709R Combustion
Analyser is a state of the art, easy to use analyser designed not only to display
and calculate the required readings from a flue but also to cover most of the other
desirable parameters associated with appliance installation and maintenance.
The instrument is ruggedly constructed and comes with a limited 3 Year
Warranty.
This manual will guide you through the functions of the TPI 709R, which will give
you many years of reliable service. The TPI 709R software has in-built self-
diagnostics that can easily be interrogated by our fully qualified and professional
engineers should an error occur. Please call the number below before returning
your instrument to your distributor should an error occurs. We can rectify over
75% of proposed faults over the phone.
Your TPI 709R Combustion Analyser comes complete with the following items as
standard: -

TPI 709R Instrument

Rubber Boot

Soft Carrying Case

Sampling Probe (c/w Type "K" Thermocouple)

In-Line Water Trap Bowl Filter (c/w Spare Particle Filter)

Battery Charger

Mini In-Line Pump Protection Filter (c/w 5 spare filters)

Exhaust Spigot (removable)

Pressure Tubing (2 x 1 metres)

GK11M Air Probe

Instruction Manual
Your TPI 709R Combustion Analyser has the following options available: -

Infrared Printer (see Appendix B)

Various Temperature Probes (see Appendix B)

Oil Filter (see Appendix B)

Smoke Test Pump (see Appendix B)

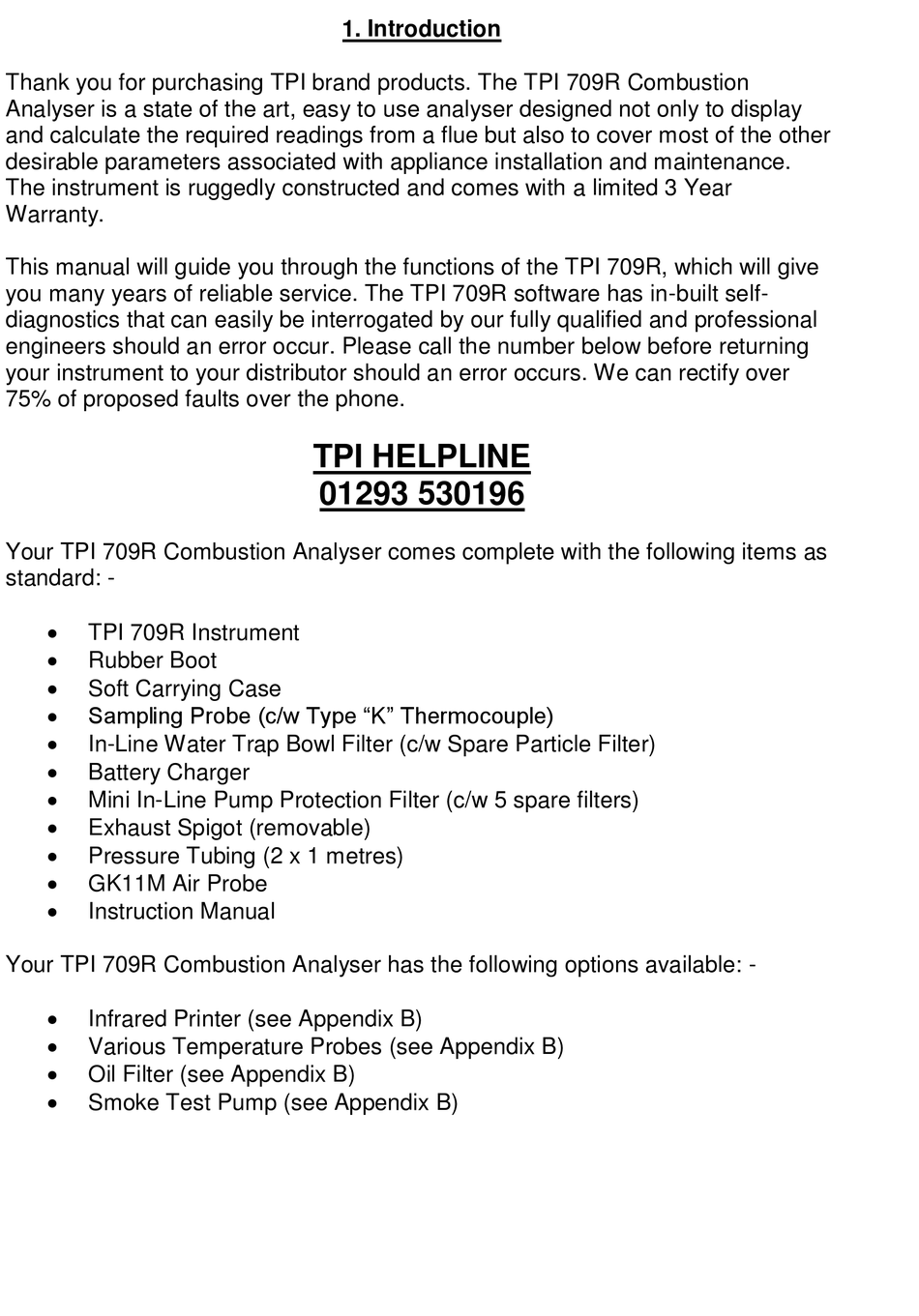

1. Introduction

TPI HELPLINE
01293 530196
