Summary of Contents for TPI 706

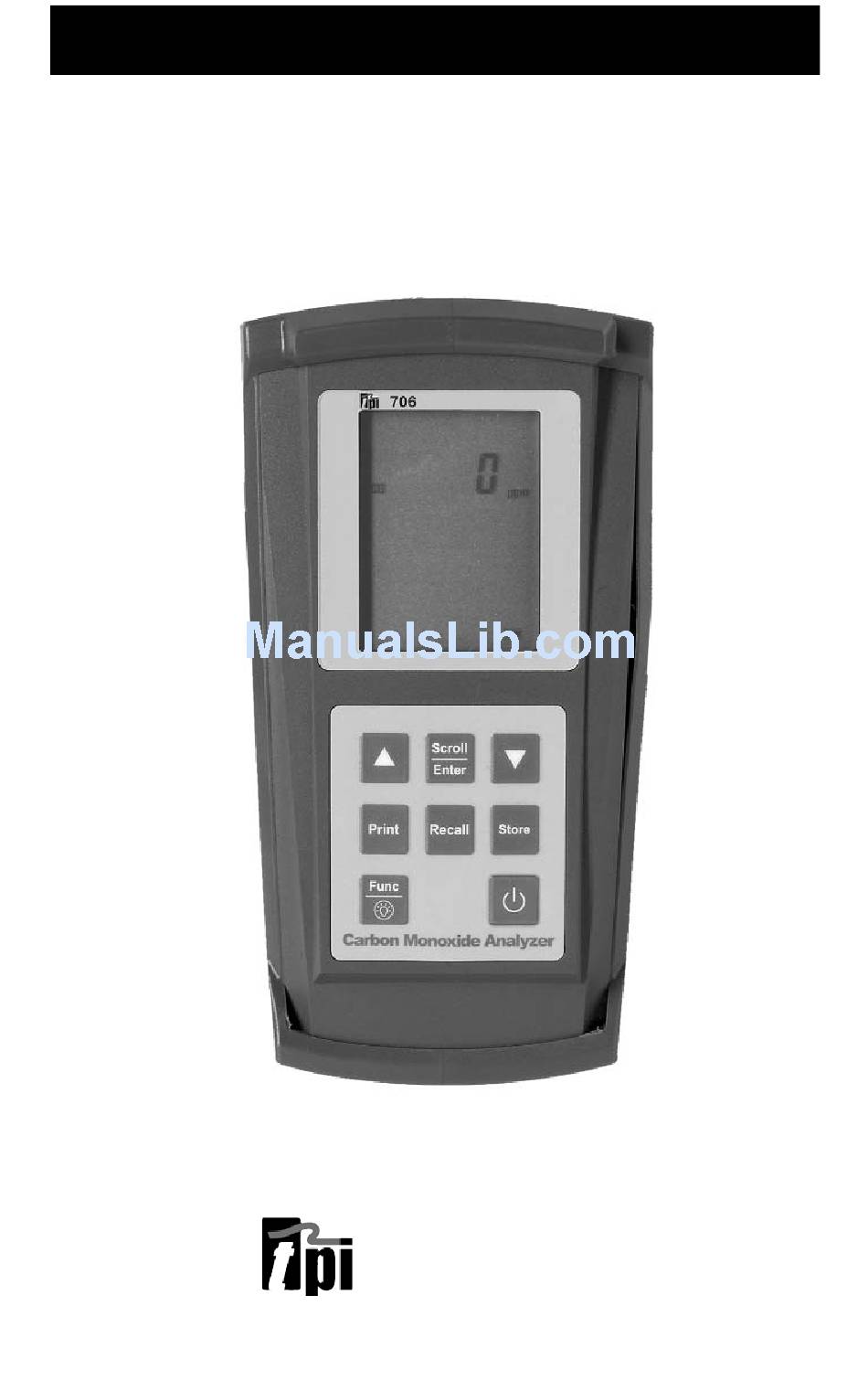

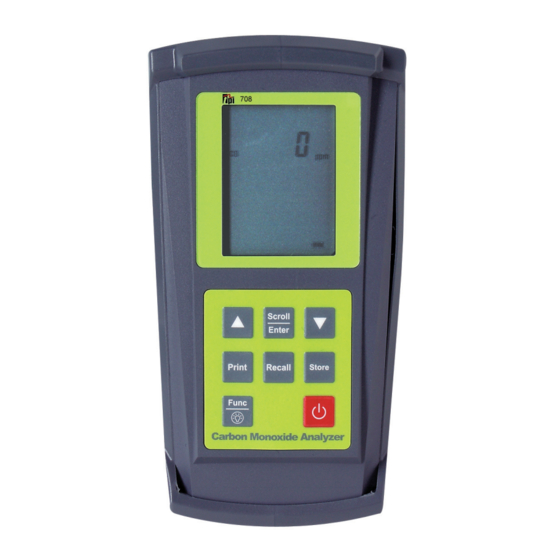

  • Page 1 CO Analyzer Rev. 6.X Analyzers The Value Leader...
  • Page 2: Table Of Contents

    Contents • Specifications • Product Features • General Description • Controls and Push Buttons • Operating Instructions • Battery Replacement • Appendix A : Calibration and Accessories • Appendix B : Guarantee • Appendix C : Error Codes & Troubleshooting •...
  • Page 3: Product Features

    The 706 is an advanced state-of-the-art carbon monoxide (CO) gas analyzer designed to provide part per million readings from 0- 10,000 ppm. The 706 is capable of performing ambient as well as flue gas checks with its hot air probe and internal pump.
  • Page 4: Controls And Push Buttons

    Controls and Push Buttons Inlet Exhaust Port IR Port Turns the 706 On (hold button in for 2 seconds) and Off Toggles between CO reading and Peak Reading. Used to Scroll Enter save, recall and print stored data. Used for setting date, time and accessing data storage...
  • Page 5: Operating Instructions

    ON/OFF switch for 2 seconds. 2. The 706 will power up and go through a 30 second self test to ensure the unit is operating properly. 3. When the display shows 0 ppm, you are ready to measure CO.
  • Page 6 5. 706 Display: ‘0ppm’, ‘Co’, ‘rEF’. Action : Press the Func Key to bypass. 6. 706 Display: ‘2000’, ‘A-r’, ‘SEt’. Action : If you are not changing the CO alarm point press the Func Key. Otherwise press the Up and Down Keys to set the ppm level the alarm will sound at.
  • Page 7 3. Using the up and down arrows, select the memory location of the readings you want to display. 4. Press the Scroll/Enter key once. The 706 will display the date and time screen showing when that reading was stored. 5. Use the up and down arrows to scroll through the CO and Peak readings that were saved.
  • Page 8 1. Press the Print Key once 'rEAL', “Stor’, and “Cal” will be displayed and ‘rEAL’ will be flashing. Selecting ‘rEAL’ will cause the 706 to print the test data currently on the display (real time data). Selecting ‘Stor’ will cause the 706 to print data stored in memory.
  • Page 9: Battery Replacement

    K. Setting the Date and Time 1. Follow the power on procedure outlined earlier. 2. Press the Func button once. The current time, date and year are displayed. Please note that the time is on a 24 hour clock and the date is shown as DD/MM. 3.
  • Page 10: Appendix A : Calibration And Accessories

    A764 Appendix B: GUARANTEE Your TPI 706 Carbon Monoxide Analyzer is guaranteed free from defects in materials and workmanship for 3 Years from the date of purchase. This guar- antee does not affect your statuary rights. For additional information please refer to the included warranty card or contact TPI at 800-368-5719.
  • Page 11: Appendix C: Error Codes & Troubleshooting

    Appendix C: ERROR CODES & TROUBLESHOOTING The 706 analyzer will display certain codes to let you know of a malfunction. Code Code Definition Possible Causes Corrective Action Displayed Pump not drawing sample at Blockage / kink in flue probe Check and rectify.
  • Page 12: Appendix D: Co Alarm & Auto Off Settings

    5. 706 Display: ‘0ppm’, ‘Co’, ‘rEF’. Action : Press the Func Key to bypass. 6. 706 Display: ‘2000’, ‘A-r’, ‘SEt’. Action : If you are not changing the CO alarm point press the Func Key. Otherwise press the Up and Down Keys to set the ppm level the alarm will sound at.
  • Page 13: Appendix E : Manually Initializing The Co Sensor

    7. 706 Display: ‘Auto’, ‘oFF’, ‘En’. Action : Press the Func Key to bypass. 8. 706 Display: ‘CAL’, ‘StoP’, ‘go’. Action : Press the Up Arrow Key to select ‘StoP’ by making it blink and press the Scroll/Enter Key to accept the selec- tion.
  • Page 14: Appendix F: Co Chart
