5.2. Fixing the Base Unit

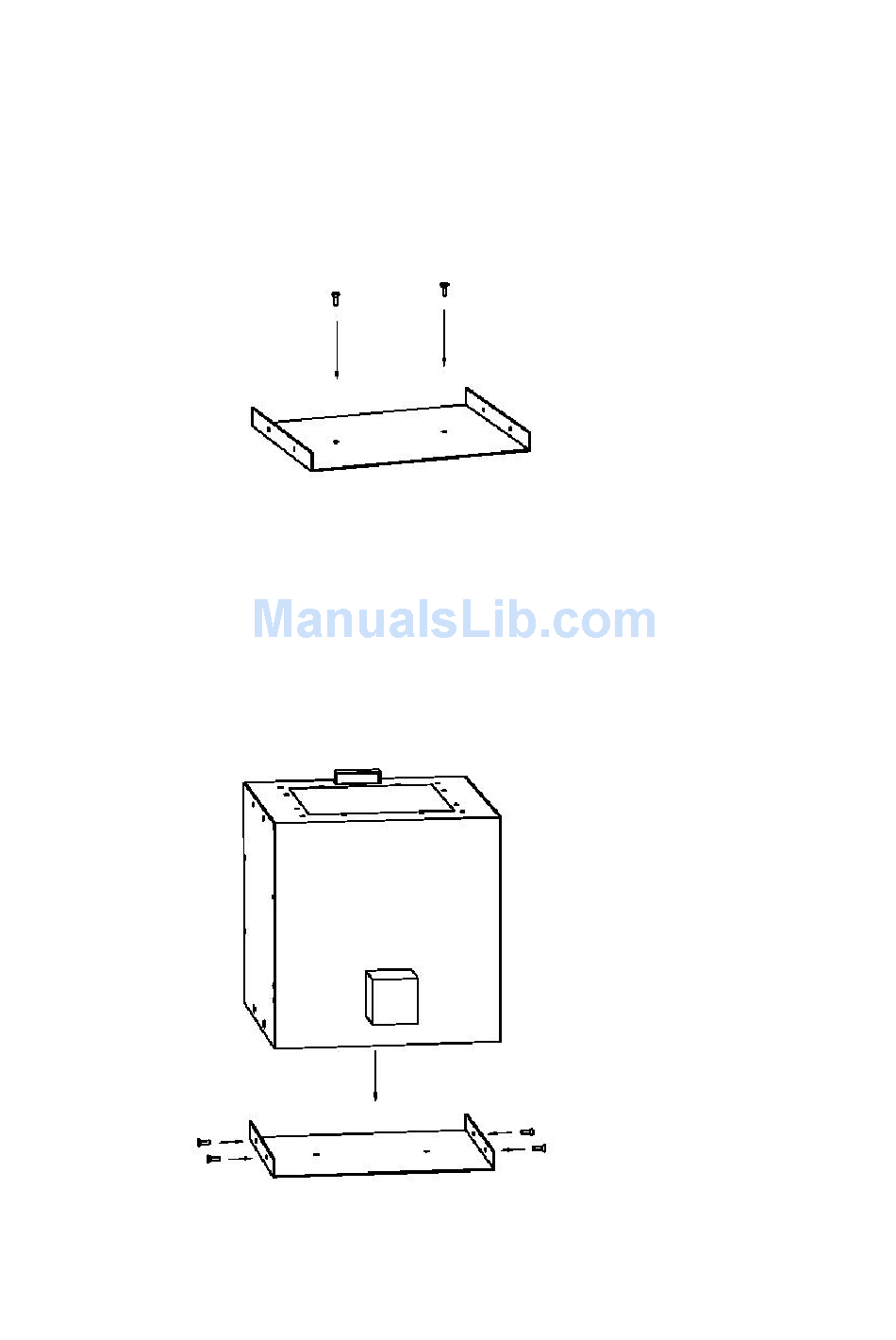

The appliance is supplied with a base plate. This must be installed to a flat, level
surface using the two fixing points shown below. When using the standard CVO Fire
Enclosure pilot holes are given to ensure correct positioning of the burner.
The main unit is then attached to the base using four screws, as shown below. This will
create a "floating" look as the main body is raised from the base by 15mm.
7
