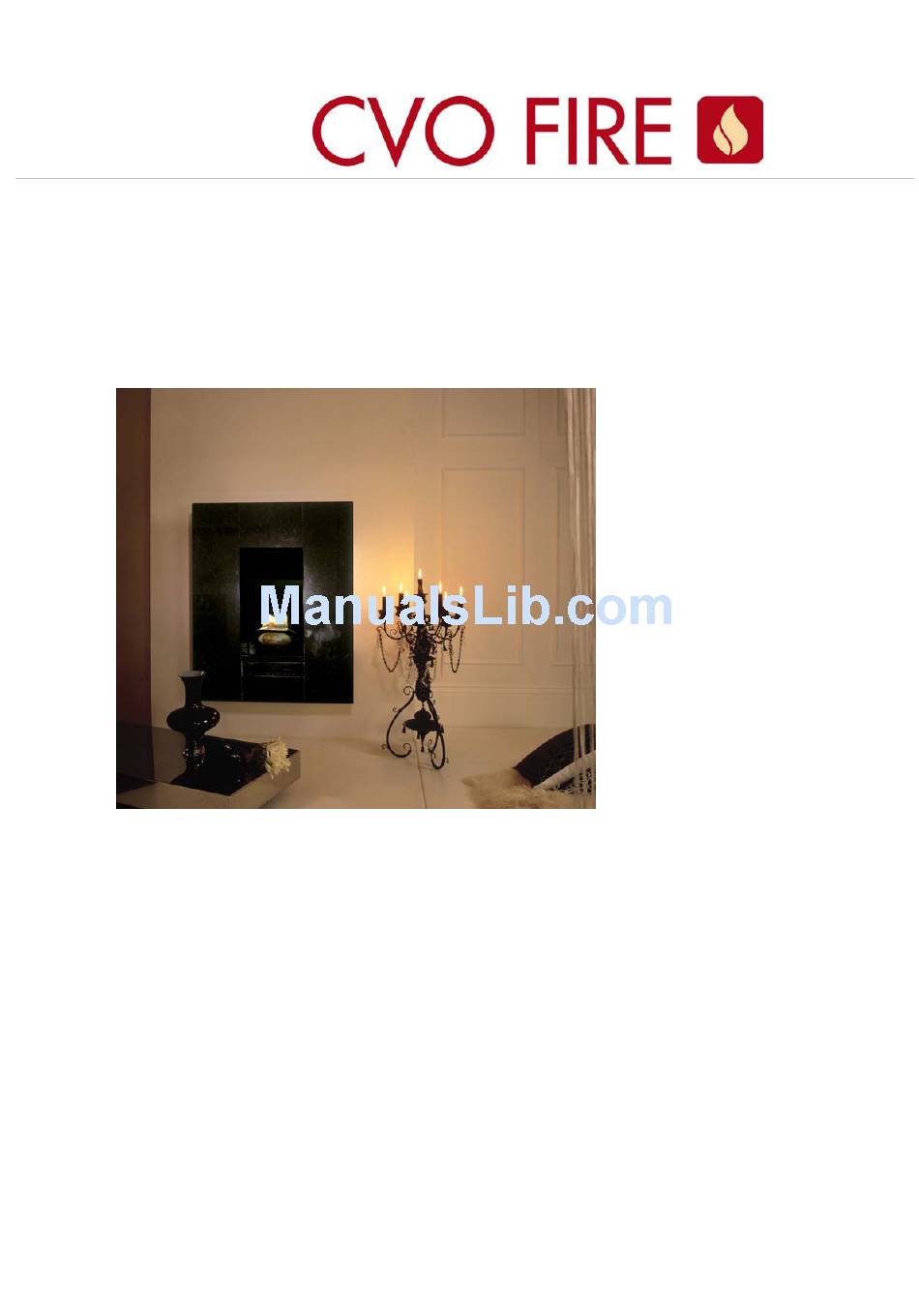

Flueless Fire Pod
Rev 2
TECHNICAL MANUAL/USER HANDBOOK
PIN NUMBER: 0558BO5341
For use with Natural Gas (G20)
It is recommended, even if you have fitted these appliances before, that you take the time to
read through these instructions and follow them step by step.
Important
Serial Number ....................................
Please quote this serial number when making a claim.
Note: - Your Warranty is valid for 1 Year from date of delivery.
The Warranty card supplied is to be filled in and sent to the address below: -
CVO Fires Limited. 4 Beaumont Square, Aycliffe Industrial Park, Newton Aycliffe,
County Durham, DL5 6XN.
This manual must be handed to the owner of the property
once commissioned.
1
Advertisement
Table of Contents
Related Manuals for CVO Fire Flueless Fire Pod
Summary of Contents for CVO Fire Flueless Fire Pod
- Page 1 Flueless Fire Pod Rev 2 TECHNICAL MANUAL/USER HANDBOOK PIN NUMBER: 0558BO5341 For use with Natural Gas (G20) It is recommended, even if you have fitted these appliances before, that you take the time to read through these instructions and follow them step by step.
- Page 2 Fire Installation, Service and user Instructions The Fire Pod Flueless PIN NO. 0063B05341 For use with Natural Gas G20@20mbar For the following countries: GB & IE ALL C V O GAS APPLIANCES ARE BENCH RUN AND THOROUGHLY TESTED. C V O IS IN THE UNIQUE POSITION OF KNOWING THAT EVERY APPLIANCE LEAVES THE FACTORY IN PERFECT WORKING ORDER.
-
Page 3: Table Of Contents
Index Unpacking the appliance Parts List Overall Dimensions Appliance Data Power Supply Installation Manuals Wiring Diagram Troubleshooting Commissioning 4.10 Servicing Instructions 4.11 Replacement parts 4.12 User Instructions ‘Lighting the Fire’ 4.13 Re-setting the appliance 4.14 Cleaning Instructions 4.15 Fascias 4.16 Fire Guards... -
Page 4: Unpacking The Appliance
Read these instructions fully before proceeding. Unpacking the appliance. Carefully examine the carton for damage before unpacking. If it is obviously damaged, consult the supplier over whether to proceed. Make sure the carton is stood upright and open the top. Remove the fire and examine its general condition. -
Page 5: Parts List
4.2 Parts List. -
Page 6: Overall Dimensions
4.3 Overall Dimensions. Dimensions of Fire Unit with Metal Fascia. - Page 7 Dimensions of Fire Unit with Stone Fascia.
-
Page 8: Appliance Data
This appliance is very efficient. The burner system is very clean burning; an oxygen depletion sensor will sense any significant oxygen depletion in the room and shut the fire down safely. 4.4 Appliance Data Refer to the appliance data (affixed behind the facia). ENSURE THAT THE LOCAL CONDITIONS OF USE CORRESPOND TO THE DATA ON THE BADGE. -
Page 9: Power Supply
4.5 Power Supply The installation should only be carried out by a CORGI registered installer and in accordance with national and local regulations for both gas and electricity. Power Supply 230v AC-15%+10%, 50/60 Hz Max power consumption 20VA cos 0.6 (Peak) Stand-by power consumption Ambient Temperature 0.80 C... -
Page 10: Installation Instructions
4.6 Installation Instructions General Requirements The installation should only be carried out by a CORGI Registered fitter and in accordance with national and local Regulations for both Gas & Electricity. The installation must also be in accordance with the relevant parts of local and national building regulations. - Page 11 Soft furnishings, decorations and wall coverings etc. must not be placed within 1.5 metres of the appliance and its outlets. Flueless Pod - Wall clearances. NOTE – A minimum clearance of 50mm must be maintained at all time from the underside of the surround to the floor surface / Hearth On no account must the inlet or outlet grilles be obstructed.
- Page 12 Stone Fascia Version Be aware of curtains etc. that could be blown towards the appliance. The fire is intended as a secondary heat source and should not be used as a primary heat source. Check that a primary heat source (such as radiators) is present in the room.
-
Page 13: Wiring Diagram
Warning; This Appliance must be earthed. Please Note: The remote system is supplied with both the hard-wired wall mounted switch and infrared system as standard. Both options allow full control of the fire. Both options can be used in tandem. Alternatively the infrared can be used without the wall-mounted switch;... - Page 14 Remote Controls Options The remote system is supplied with both the hardwired wall switch and infrared system as standard. Both options can be used as tandem; alternatively the remote control can be used without the wall-mounted switch and vice versa. It is very important when removing an option it is done correctly in order for the option left to function correctly on its own.
- Page 15 The Remote Controls Black Box (left) Controls Valve (Right)
- Page 16 If there is an existing chimney in the room then the opening must be sealed up. The Flueless Fire Pod is designed to fit into a recessed opening this can be constructed by brick, stone or timber frame to Local and National Regulations.
- Page 17 Before connecting any pipes to the appliance, fully purge pipes of debris or swarf etc. and connect the gas supply to the 8mm isolation valve on the fire. Leak test the supply using an approved method. After the gas and electrics have been positioned the recessed plate is to be fixed in place via the holes provided at each end of the recessed plate.
- Page 18 Pod Gas Inlet, electric supply, and hardwire switch cable areas -...
-
Page 19: Commissioning
When the gas and electrics have been connected check all wiring and gas work is safe before switching the appliance on. The unit can be tested for soundness and electrical workings without the fascia, but the fascia must be fitted when testing the flame picture and lighting times. - Page 20 Side view of the Flueless Pod Metal Fascia (Left) Stone Fascia (Right) The fascia supplied with the appliance must be used. Any other type could affect combustion or overheat the gas controls. If fitting over an existing fireplace, the flue and cavity MUST be blocked off completely to prevent suction on the back of the appliance The top of the flue should also be capped off to prevent the entry of moisture etc.
-
Page 21: Fitting The Fascia
Fitting the Fascia The unit is supplied with either a Metal Fascia or a Stone Fascia these are fitted the same way. The fascia supplied with the fire unit must be used and must not be modified as the fascia has been tested, any other type could affect combustion or overheat the gas controls. - Page 22 4.7 Remote Wiring Diagram...
-
Page 23: Fault Diagnosis
4.8 Fault Diagnosis Spark Failure The gap between the pilot electrode and the pilot should be 3.5 – 4.5mm and normally adjustment is not necessary (the electrode is very brittle). The spark should jump across the gap between the electrode and the gas outlet on the pilot head. If the ignitor fails, a lighted taper can be inserted into the pilot area to check that gas is reaching the pilot. - Page 24 Symptom Check List Tick Unit does not respond. Check Remote is working properly Check power supply. Check fuses. Check wiring is correct Remote does not work. Check Battery Power. Check Remote eye is visible and facing in the correct position. Hardwire switch does Check Switch is wired properly.
- Page 25 4.9 Commissioning The fascia must be attached to the unit when testing the flame picture and is to be tested for a minimum of 30 minutes ensuring that the pilot thermocouple is not too sensitive also checking all of the lighting systems e.g. The Remote Control, Hardwire switch testing the high and low flame rates.
-
Page 26: Servicing Instructions
4.10 Servicing Instructions. The following servicing procedure should be carried out on an annual basis and only by a qualified person. Note: foreign bodies which can gather on the surface of the burner unit. It is inevitable that servicing can be a dusty operation. Suitable precautions should be taken. - Page 27 Servicing Continued Cleaning the burner workings To clean the burner workings from debris the fascia is to be removed - shown in fitting instructions. Clean the air inlets, removing all lint in the area of the injector and ensuring that the pilot light aeration hole and flame head are clean.
- Page 28 When the back shell has been removed the pilot can be disconnected from the unit to be cleaned or replaced. With the gas turned off check the tightness of the thermocouple connection into the valve. Important Test all joints for leaks if the burner has been dismantled. Controls –...
-
Page 29: Replacement Parts
4.11 Replacement Parts NOTE – Certain parts shown below may need to be replaced at the CVO factory as the unit will need to be re-tested, setting the valve flow-rate etc. CVO offers a reconditioning service on the burner unit. Call the CVO factory for more information. -
Page 30: Lighting The Fire
4.12 Gas Fire User Instructions Lighting the Fire INFRA-RED REMOTE OPERATION Infrared systems require “Line of sight” between the handset and the sensor at the appliance, it is a standard safety feature to ensure that the appliance cannot be remotely lit from another room. - Page 31 Press the ON/OFF bottom (left side) for 2-3 seconds (until the spark ignition sequence begins) and release. The ignition sequence will continue for a further 10-15 seconds before the burner is ignited to the “High position.” To switch off press the ON/OFF button for 2-3 seconds. Press the HIGH/LOW button (right side) for 2-3 seconds the appliance will change to low rate.
- Page 32 INFRA-RED REMOTE OPERATION Infrared (IR) system requires “Line of sight” between the handset and the appliance. This is a standard feature to ensure the appliance cannot be lit from another room. Also a safety feature is that to light the unit both buttons must be pressed and held until the pilot clicks before letting go of the buttons, the reason for this is that it is less likely to accidentally switch the unit on.
-
Page 33: Re-Setting The Appliance
Infrared Remote Control Replacing the battery 4.13 Re-setting the Appliance Hand Held Remote Unit To start your appliance, press both buttons on the hand-held remote unit, hold them down for a minimum of three seconds until the ignition process begins which will run for 19-20 seconds before it turns onto the main burner. After the burner has ignited, it can then be switched to high or low using the button on the right side of the handset. -
Page 34: Cleaning Instructions
4.14 Cleaning Instructions. Keeping your fire unit clean keeps its efficiency, so it is important to clean your unit regularly as dust and debris can block the burner workings and add to combustion staining. Note: Due to the surface area and flatness of the ceramic burner matting, it is inevitable that dust, debris from the chimney and combustion by-products will accumulate;... -
Page 35: Fascias
Dated on the 05/06/07. There may be changes made in future as we improve our products. If there are any queries please write or call our technical department. CVO Fire Ltd, CVO House, 4 Beaumont Square Aycliffe Industrial Park, Newton Aycliffe County Durham, DL5 6SW T –...
