Installation
1 Mains Terminals
2 Brake Terminals

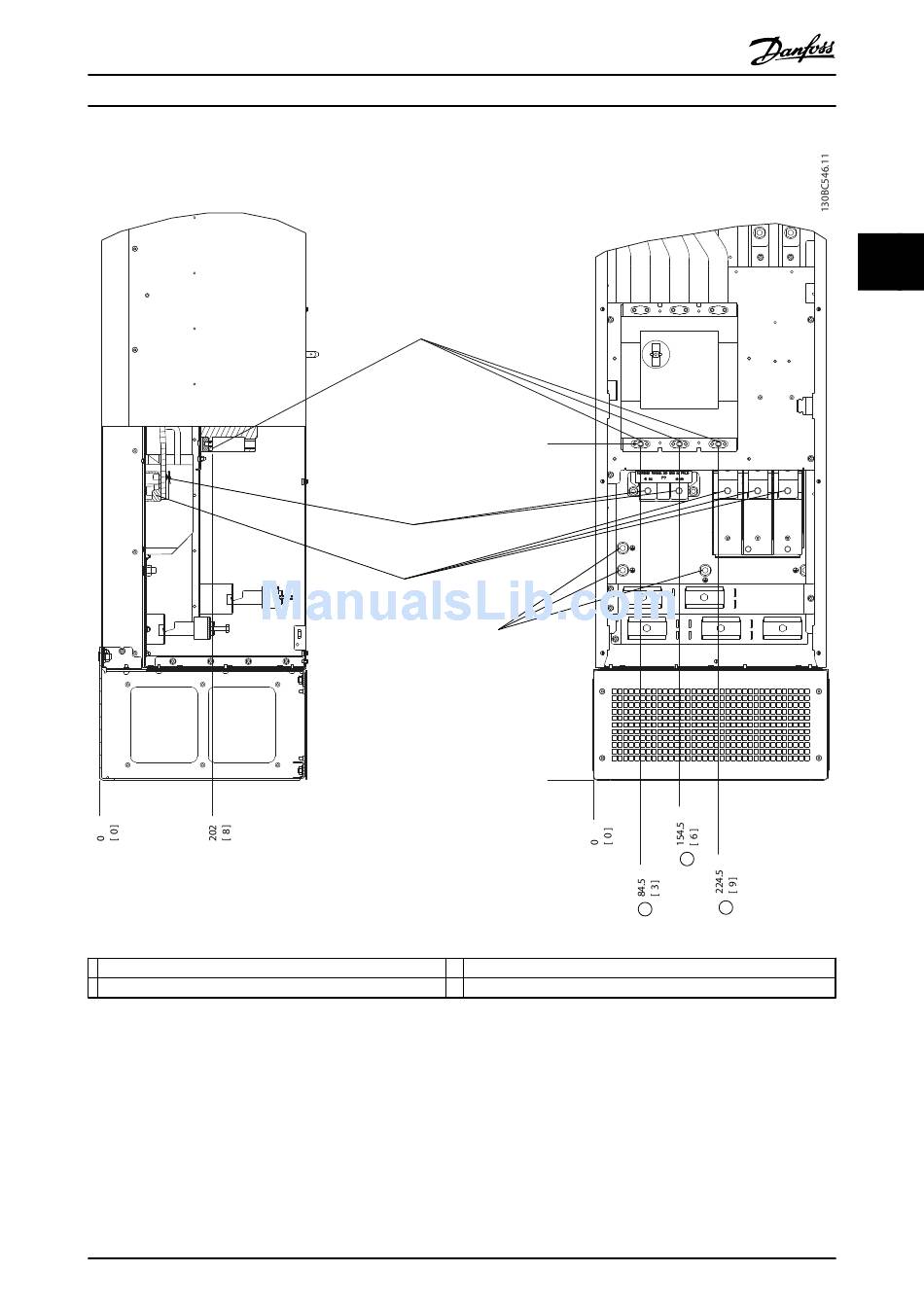

Illustration 3.22 Terminal Locations, D8h with Circuit Breaker Option
MG16D302
Operating Instructions
1
605
[ 23.8
2
3
4
3 Motor Terminals
4 Earth/Ground Terminals
