Wallbox commander Installation Manual page 14

DRILL & MOUNT 2/3

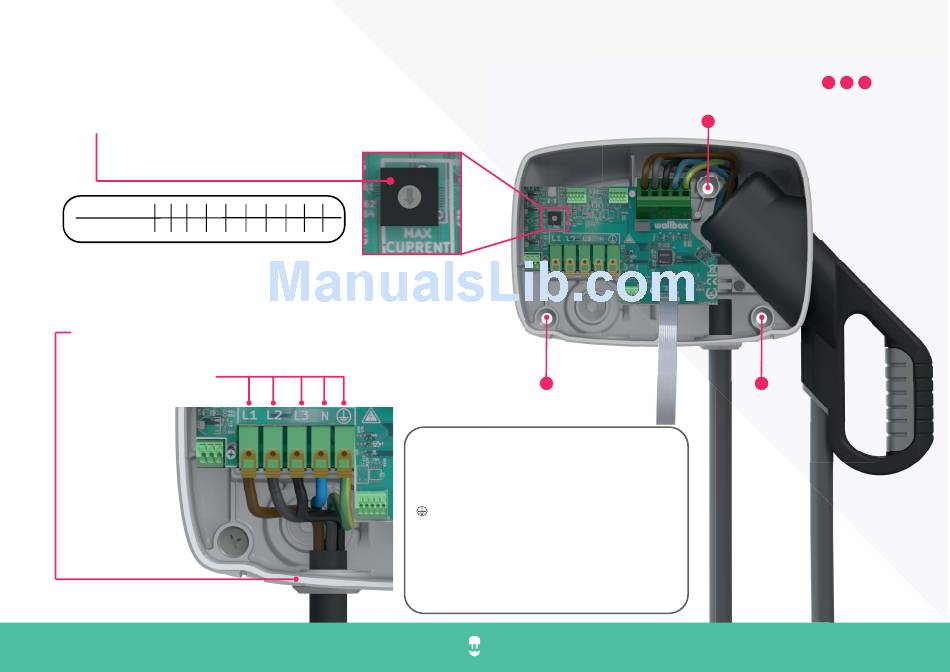

Step 1: Proceed to fix your charger to the wall. Insert the screws in the positions marked, starting with the top one, and continuing clockwise.
Verify that your Wallbox Commander is firmly attached and insert the plugs to complete this process.
Step 2: Use the selector to choose the maximum operating current of the supply connection.
POSITION 0 1 2
CURRENT (A) 0 6 10 13
Step 3: Insert the mains supply cable through the bushing (as pictured)
Step 4: Connect the power lines, neutral and protective earth using the
terminal blocks provided
COMMANDER
- installation guide
3 4 5 6 7 8 9
16 20 25 32 0 0
C
From left to right:
L1,L2 & L3 (Current-carrying conductors)
N: Neutral line
:Protective Earth
The presented color connection is not subject
to an international standard, please always check
the power supply connection
A B C
A
B
en 14
