3.0 Power Test

3.1. Plug in the CyberData device and monitor the LED activity above the

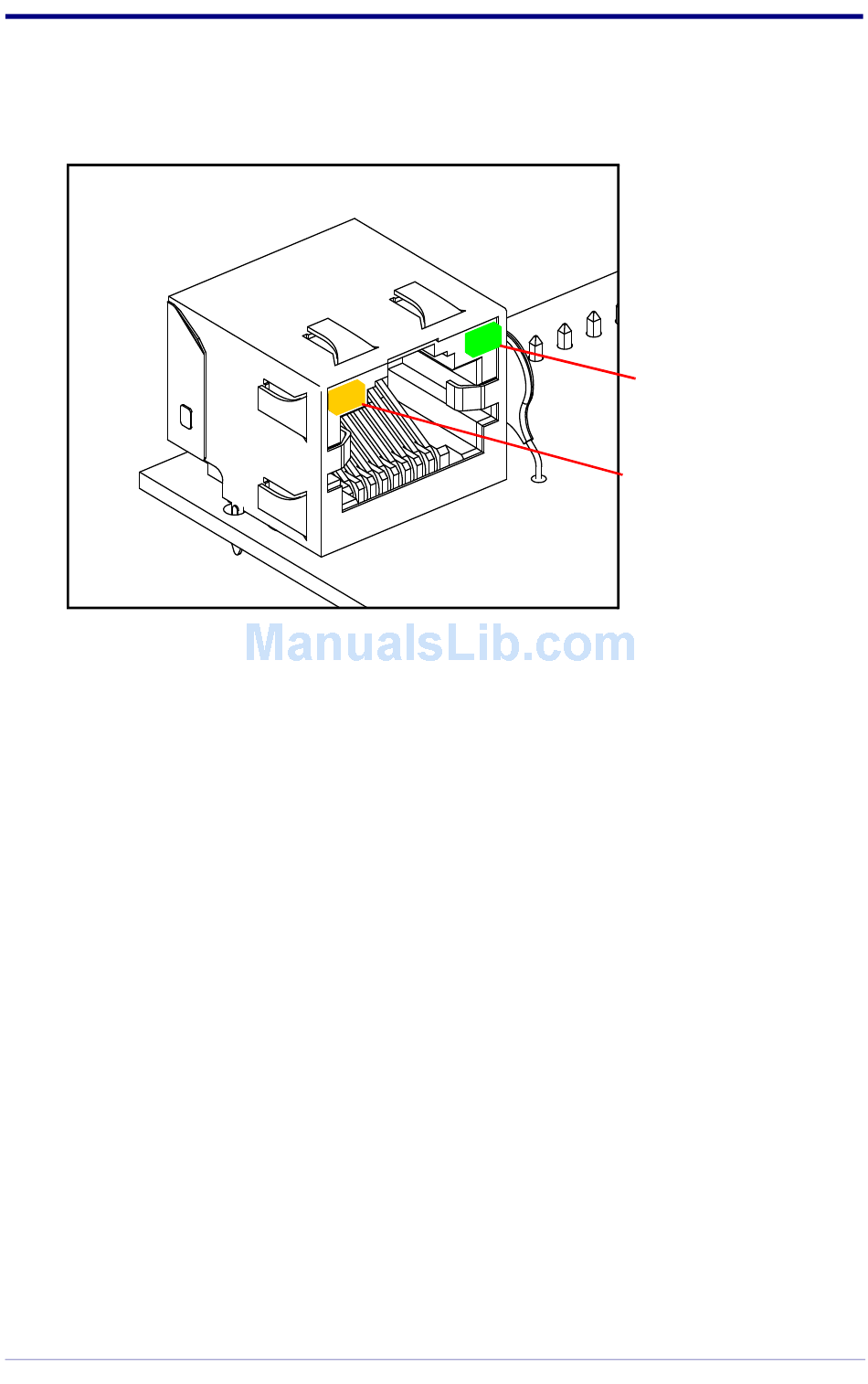

ethernet port on the back of the Intercom. See the following figure:
3.2. The GREEN
when the device beings DHCP addressing and autoprovisioning attempts,
and then comes on again and remains constant (solid GREEN). The
YELLOW
activity.
During the initialization process, the Call Button LED should come on solid.
It will then blink 10 times per second until it can find a network address and
attempt autoprovisioning. This can take from 5 to 60 seconds. When the
device has completed initialization, the Call Button LED will blink twice and
then remain solid.
Note The default DHCP addressing timeout is 60 seconds. The device will attempt
DHCP addressing 12 times with a 3 second delay between tries and eventually
fall back to the programmed static IP address (by default 10.10.10.10) if DHCP
addressing fails. The DHCP Timeout is configurable in the device's Network
settings.
3.3. When the Intercom has completed the initialization process, press and hold
the RTFM switch (SW1 button) for 3 seconds to announce the IP address.
This concludes the power test. Go to
in a Test Environment".
