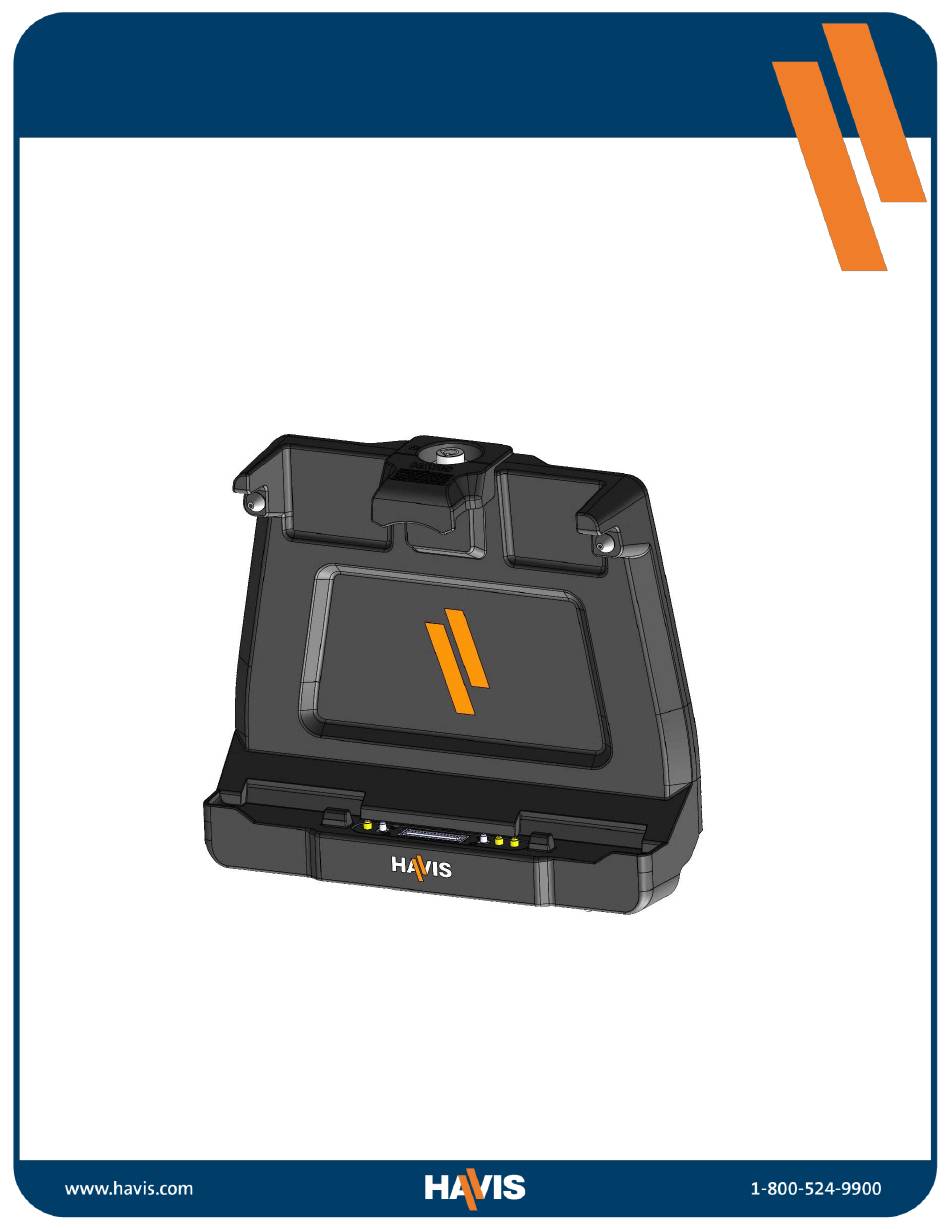

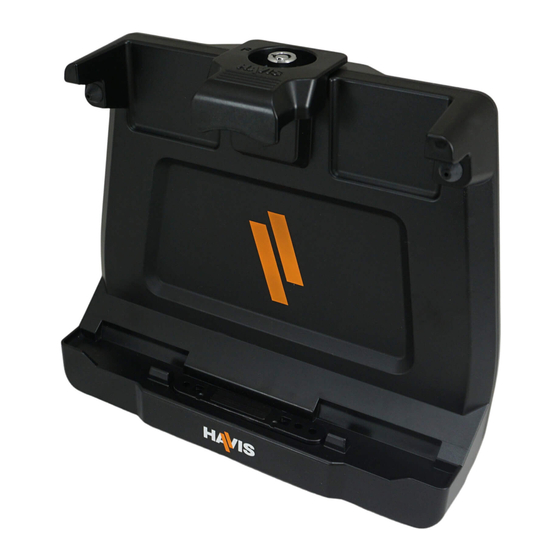

- Page 1 Owner’s Manual Havis Docking Station For Getac ZX10 Fully Rugged Tablet DS-GTC-1300 Series DS-GTC-1301 DS-GTC-1303 DS-GTC-1301-3 DS-GTC-1303-3 DS-GTC-1302 DS-GTC-1306 DS-GTC-1302-3 DS-GTC-1306-3 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-GTC-1300-SERIES_OMN_02-22...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-1300 Series Docking Station for the Getac ZX10 Fully Rugged Tablet. For questions regarding the set-up of your DS-GTC-1300 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Manufacturers Address: 75 Jacksonville Road, Warminster, PA 18974 USA Declares under our sole responsibility that the product: Product name: Havis Docking Station For Getac ZX10 Tablet Only Model: DS-GTC-130X, where ‘X’ may be any alphanumeric character and which describes product options. - Page 4 Specifications 11.15” 3.395” 283.08 mm 86.23 mm Latched 9.72” 246.91 mm Unlatched 10.20 ” 259.14 mm VESA 75 Mounting Pattern M4 x 0.7 Thread 5.64” 143.21 mm Dock Centerline...
-
Page 5: Parts Included
Parts Included Docking Station Barrel Lock Latch Hook Alignment Posts (x2) Docking Connector Ground Pins (x2) Pass-Through Antenna (Triple, optional) LED Map Light Mounting Points (x2) Mounting Holes VESA 75 Strain Relief Points Ports... -
Page 6: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) Tools required for installation: •... -
Page 7: Port Replication Capability
Port Replication Capability DS-GTC-1301, DS-GTC-1301-3, DS-GTC-1302, DS-GTC-1302-3 Antenna (SMA) DC 12V Optional: Part IDs Power Input USB 2.0 (x2) Audio Out Microphone Reserved DS-GTC-1301-3 (Audio In) DS-GTC-1302-3 DS-GTC-1303-3 DS-GTC-1306-3... -
Page 8: Installation
(Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10% A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7 x 20mm... -
Page 9: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 10: Operation - Docking
Alignment Sockets with the Docking Station’s Alignment Posts Alignment Sockets on the bottom of Alignment Posts on the Getac ZX10 Tablet DS-GTC-1300 Series Docking Station 1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. Unlatched... - Page 11 Operation - Docking (continued) 2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station. 3) Pivot tablet so it sits flush in the Docking Station and hold while depressing the Latch Handle to secure tablet in place.
-
Page 12: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 13: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-140 120W Power Supply External in-vehicle power supply and cable for Getac UX10 and ZX10 Tablets with cigarette lighter adaptor.
