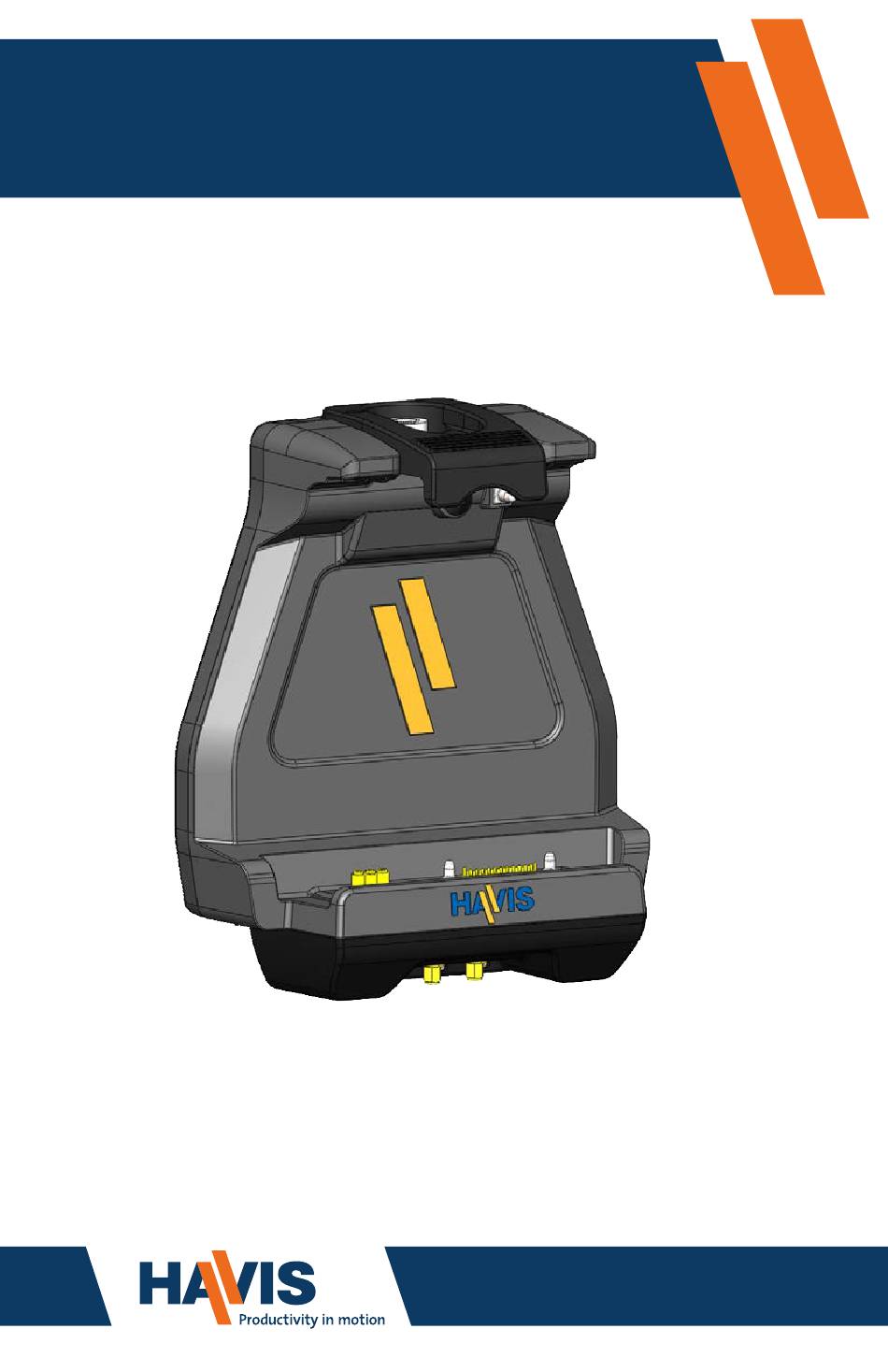

- Page 1 Owner’s Manual Havis Docking Station For Getac T800 Rugged Tablet DS-GTC-400 Series DS-GTC-401 DS-GTC-402 DS-GTC-403 DS-GTC-401-3 DS-GTC-402-3 DS-GTC-403-3 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-400 Series Docking Station for the Getac T800 Rugged Tablet. For questions regarding the set-up of your DS-GTC-400 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
-
Page 3: Table Of Contents
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-40X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included

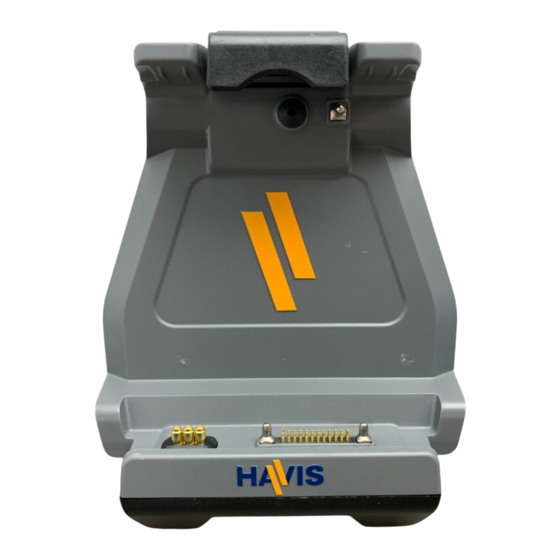

Parts Included Docking Station Barrel Lock Latch Hook Locator Pin Docking Connector RF Antenna to Tablet Interface Mounting Holes (x4) (VESA 75) Ports Strain Relief... -
Page 5: Port Replication Capability
(For M4 Pan Head Screws) Port Replication Capability USB 3.0 (x2) Ethernet Power Input Serial Antenna (optional) Parts DS-GTC-401-3, DS-GTC-402-3, and DS-GTC-403-3 Antenna Identification (DS-GTC-401-3, DS-GTC-402-3, & DS-GTC-403-3) - GPS - WLAN - WWAN Downward Facing Antennas Tablet Interface www.havis.com • 1-800-524-9900... -
Page 6: Installation
Installation Install the Docking Station to the Motion Device using four (4) M4 x 0.7 x 20mm long Pan Head Screws (Hardware Kit Item 3), four (4) Split Lock Washers (Hardware Kit Item 4), and four (4) Washers, M4 (Hardware Kit Item 5). Torque screws to 20 in-lbs (2.3Nm) ±... -
Page 7: Cable Management
Tie off cables onto a stationary part of the mounting system. Collect cables and secure This loop must be large enough to the mounting system. to allow full range of expected (Note: Mounting system not included) rotation and extension without stressing connections. www.havis.com • 1-800-524-9900... -
Page 8: Operation - Docking
Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts Alignment Sockets DS-GTC-400 Series Docking Station Bottom of Getac T800 Rugged Tablet Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. Without a tablet present you may have to lift up lightly on the front of the Latch Hook to fully release. - Page 9 Operation - Docking Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station. Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station.
-
Page 10: Operation - Undocking
Operation - Undocking If previously locked, unlock Docking Station using supplied key. Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. - Page 11 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-GTC-400 Series Docking Station. For more information or to order, please visit www.havis.com. LPS-116 95W Power Supply External in-vehicle power supply and cable for Getac T800 Rugged Tablet with cigarette lighter adaptor.
- Page 12 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 www.havis.com 1-800-524-9900 DS-GTC-400-SERIES_OMN_12-14...
