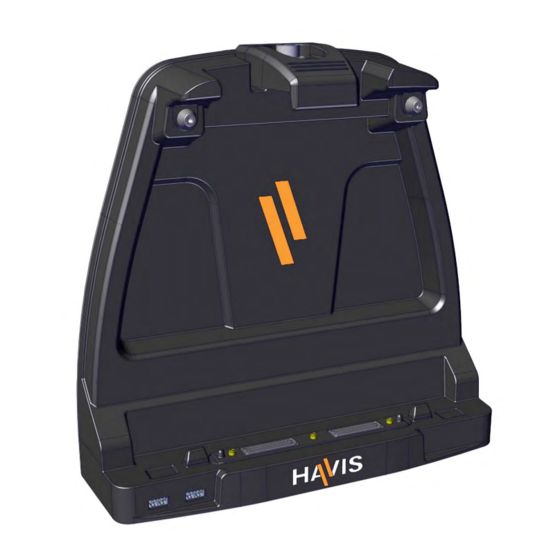

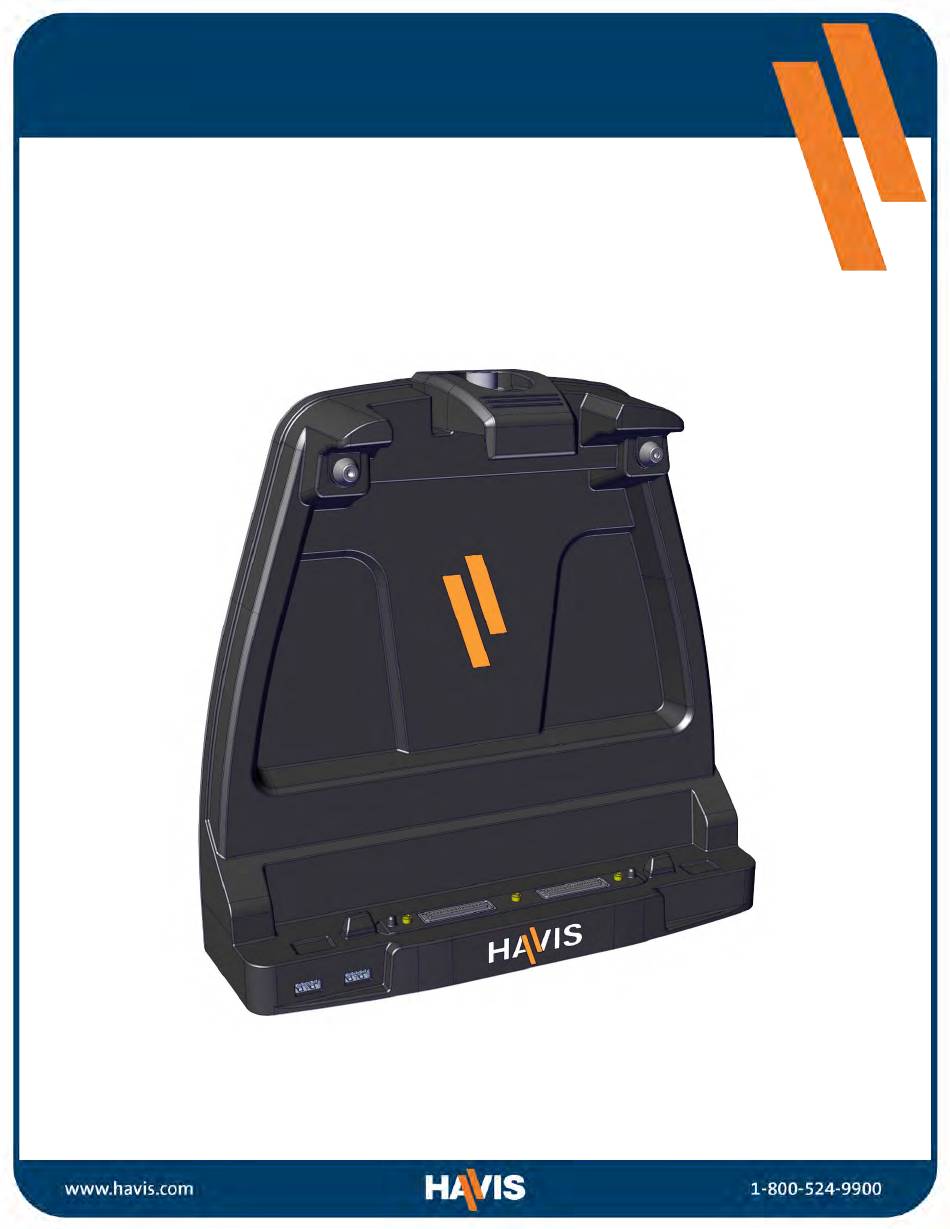

- Page 1 Owner’s Manual Havis Docking Station For Getac K120 Tablet DS-GTC-900 Series DS-GTC-901 DS-GTC-903 DS-GTC-901-3 DS-GTC-903-3 DS-GTC-902 DS-GTC-906 DS-GTC-902-3 DS-GTC-906-3 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-GTC-900-SERIES_OMN_10-18...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-900 Series Docking Station for the Getac K120 Tablet. For questions regarding the set-up of your DS-GTC-900 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-90X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Barrel Lock Latch Hook Docking Connectors (x2) Alignment Posts Pass-Through Antenna (Triple, optional) Mounting Holes (VESA 75 Hole Pattern) Strain Relief Points Ports... -
Page 5: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0031) This Hardware Kit includes: 1. Zip Ties (4) 2. Keys (2) 3. M4 x 0.7 x 20mm long Pan Head Screws (5) 4. Split Lock Washers (5) 5. Washers, M4 (5) ... -
Page 6: Port Replication Capability
Port Replication Capability Downward Facing Ports DS-GTC-901, DS-GTC-901-3, DS-GTC-902, DS-GTC-902-3 USB 2.0 (x1) Ethernet HDMI USB 3.0 (x3) RJ45 (x2) Serial Power Input Antenna (SMA) Optional: Part IDs DS-GTC-901-3 DS-GTC-902-3 DS-GTC-903-3 DS-GTC-906-3 Forward Facing Ports DS-GTC-901, DS-GTC-901-3, DS-GTC-902, & DS-GTC-902-3 USB 2.0 (x2) -
Page 7: Installation
(Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10% A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7 x 20mm... -
Page 8: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Install all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and the Strain Relief Points to secure cables and reduce risk of accidental disconnects. -
Page 9: Operation - Docking
Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts on the Alignment Sockets on the bottom of DS-GTC-900 Series Docking Station Getac K120 Tablet 1) Docking Station must be unlatched before docking your tablet. Push down on the Barrel Lock button and release slowly. - Page 10 Operation - Docking (continued) 2) Hold tablet in landscape orientation, with bottom mounted docking connector angled toward Docking Station. Lower tablet into the bottom of the Docking Station. 3) Pivot tablet so it sits flush in the Docking Station and hold while depressing the Latch Handle to secure tablet in place.
-
Page 11: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. 2) Secure tablet to avoid inadvertent ejection from Docking Station. Push down on the Barrel Lock button and release quickly taking care not to obstruct the travel of the Latch Hook. If the Latch Hook does not extend fully to its unlatched position, lift up lightly on the front of the Latch Hook to fully release. -
Page 12: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-140 120W Power Supply External in-vehicle power supply and cable for Getac K120 Tablet with cigarette lighter adaptor.
