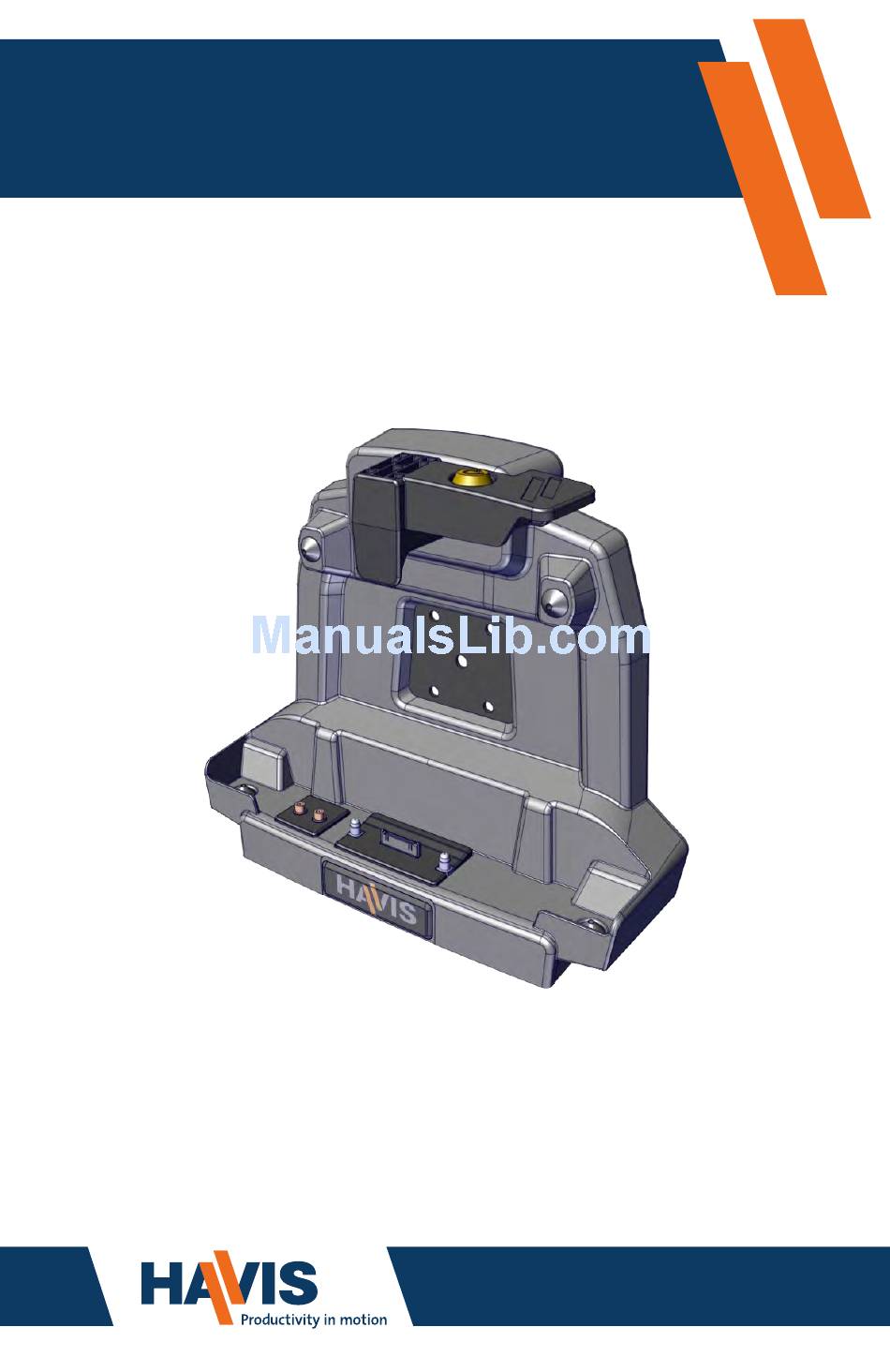

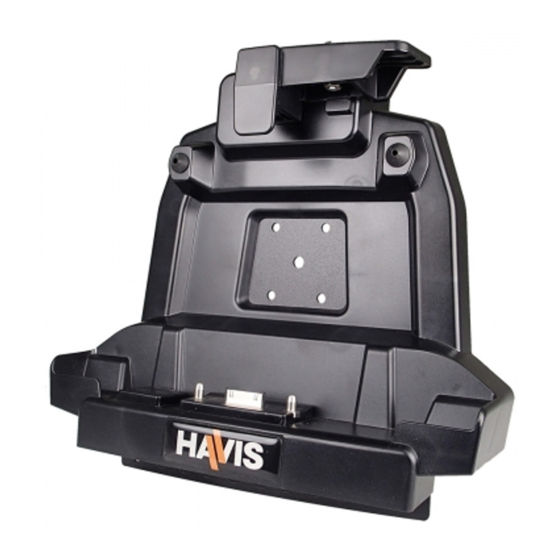

- Page 1 Owner’s Manual Havis Docking Station For Getac Z710 & ZX70 Rugged Tablets DS-GTC-700 Series DS-GTC-701 DS-GTC-704 DS-GTC-706 DS-GTC-701-2 DS-GTC-704-2 DS-GTC-706-2 DS-GTC-703 DS-GTC-705 DS-GTC-703-2 DS-GTC-705-2 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-700 Series Docking Station for the Getac Z710 & ZX70 Rugged Tablets. For questions regarding the set-up of your DS-GTC-700 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
-
Page 3: Table Of Contents
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-70X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Fused Input Power Cable (Replacement Part #: DS-DA-320) Hardware Kit... -
Page 5: Port Replication Capability
Power Only Port Replication (POGO Connector Only) (DS-GTC-705, DS-GTC-705-2) Speaker Power Input Antenna Connectors (SMA) (Optional - DS-GTC-705-2) Antenna Identification (DS-GTC-701-2, DS-GTC-702-2, DS-GTC-703-2, DS-GTC-704-2, DS-GTC-705-2) In reference to the GETAC Z710 & ZX70 Antenna connections ANT. B ANT. A Z710 WWAN ZX70... -
Page 6: Installation
(Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%. Havis Desktop Stand installation (sold seperately, Part # DS-DA-218). Washer, M4 Lock Washer, M4 M4 x 0.7x12mm... -
Page 7: Cable Management
Tie off cables onto a stationary part of the mounting system. Collect cables and secure This loop must be large enough to the mounting system. to allow full range of expected rotation and extension without (Note: Mounting system not included) stressing connections. www.havis.com • 1-800-524-9900... -
Page 8: Operation - Docking
Operation - Docking DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION. NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts Alignment Sockets DS-GTC-700 Series Docking Station Bottom of Getac Z710 Rugged Tablet... - Page 9 Operation - Docking Hold tablet in landscape orientation, and guide into the Docking Station. Next, lower tablet into the bottom of the Docking Station, while ensuring that the alignment sockets are aligned with the Docking Station’s Alignment Posts. When tablet is properly seated in the Docking Station, lower the Latch Handle to secure tablet in place.
-
Page 10: Operation - Undocking
Operation - Docking (continued) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2). Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding tablet with one hand, lift the Latch Handle on the top of Docking Station. - Page 11 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-GTC-700 Series Docking Station. For more information or to order, please visit www.havis.com. LPS-139 55W Power Supply External in-vehicle power supply and cable for Getac Z710/ZX70 Rugged Tablets with cigarette lighter adaptor.
- Page 12 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 www.havis.com 1-800-524-9900 DS-GTC-700-SERIES_OMN_5-17...
