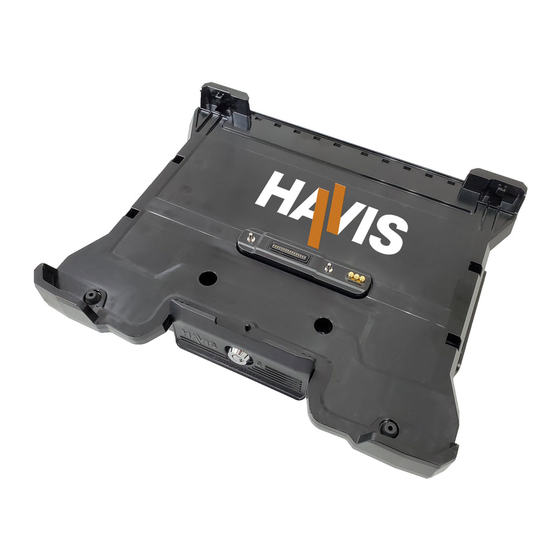

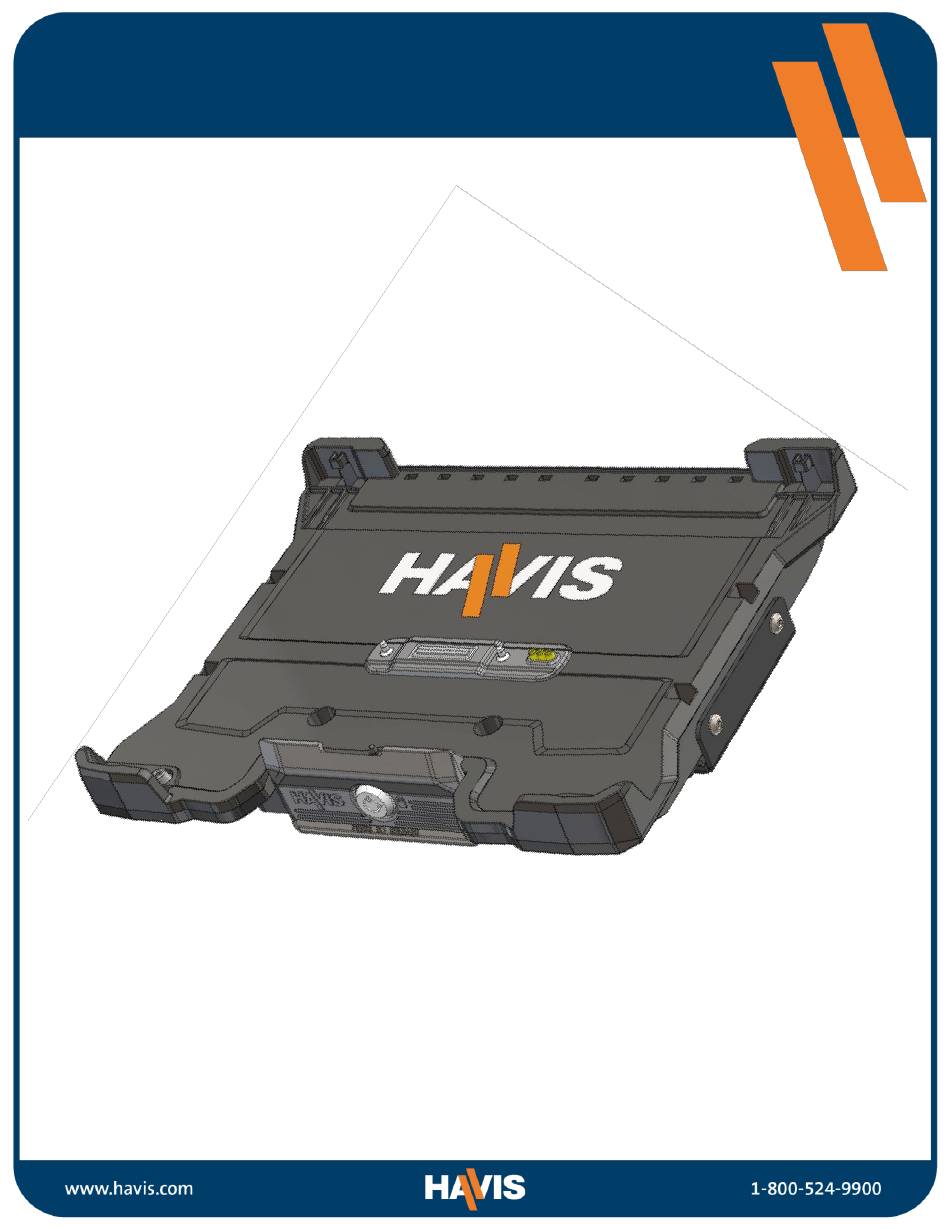

- Page 1 Owner’s Manual Havis Docking Station For Getac Viper Laptop DS-GTC-1200 Series DS-GTC-1201 DS-GTC-1202-3 DS-GTC-1206 DS-GTC-1201-3 DS-GTC-1203 DS-GTC-1206-3 DS-GTC-1202 DS-GTC-1203-3 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-GTC-1200-SERIES_OMN_03-20...
-
Page 2: Before Beginning
Before Beginning Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-1200 Series Docking Station for the Getac B360 Laptop. For questions regarding the set-up of your DS-GTC-1200 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional product support and information. -
Page 3: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-GTC-120X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Rear Hooks Docking Connector RF Pass Through (optional) Release Handle Barrel Lock Front Fence Ports Strain Relief Points Mounting Bracket... -
Page 5: Antenna Identification
Parts Included (continued) Hardware Kit (HWK-0015) This Hardware Kit includes: 1. Zip Ties (7) 2. Keys (2) 3. 1/4”-20 x 5/8” long Button Head Screws (10) 4. Zip Ties (3) Tools required for installation: • 5/32” Hex Drive (For attaching Mounting Bracket to Motion Device with Button Head 1/4”-20 Screws) Antenna Identification DS-GTC-1201-3, DS-GTC-1202-3, DS-GTC-1203-3, &... -
Page 6: Port Replication Capability
Port Replication Capability Forward Facing Ports DS-GTC-1201, DS-GTC-1201-3, DS-GTC-1202, DS-GTC-1202-3 USB 2.0 (x2) USB 2.0 (x1) Power Input Serial Ethernet HDMI USB 3.0 (x3) (19V DC IN) RJ45 (x2) -
Page 7: Installation & Cable Management
1) Remove the Mounting Bracket from the packaging. Install the Mounting Bracket to the Motion Device using (4) 1/4“-20 x 5/8” long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%. NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors’. - Page 8 Installation & Cable Management (continued) 4) Lower the Docking Station to the Mounting Bracket as shown and secure with (6) 1/4” -20 x 5/8” long screws (Hardware Kit Item 3) in the order shown below. First secure the screws designated with the orange (A) then the remaining 4 fasteners (B).
-
Page 9: Operation - Docking
Operation - Docking DO NOT FORCE LAPTOP ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF LAPTOP ON DOCKING STATION. 1) Ensure the Docking Station is unlocked. - Page 10 Operation - Docking (continued) 3) With the front of computer elevated, load rear of computer into Docking Station ensuring the computer’s rear hook pockets align with the Rear Hooks of the Docking Station as shown. 4) Lower front of computer onto Docking Station, ensuring computer properly aligns with the front fence on the Docking Station.
- Page 11 Operation - Docking (continued) 5) Ensure latch hooks are fully engaged. Pictured below Fully Latched NOT Fully Latched, must re-dock the laptop 6) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit item 2).
-
Page 12: Operation - Undocking
Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key (Hardware Kit item 2).. 2) Unlatch computer from Docking Station by pushing on the Release Handle in the direction shown below. Once unlatched the computer will rise above the front latch hooks. 3) Once unlatched grab laptop from carry handle or each side and carefully lift out of Docking Station. -
Page 13: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-140 120W Power Supply External in-vehicle power supply and cable for Getac B360 Convertible Laptop with cigarette lighter adaptor.
