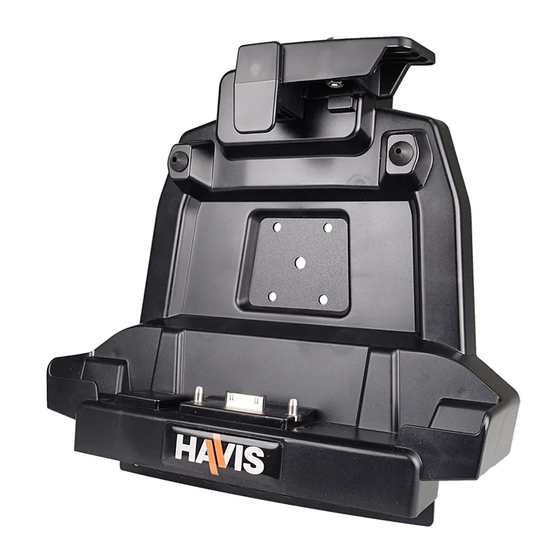

Havis Docking Station
For Getac Z710 & ZX70 Rugged Tablets
DS-GTC-7X0 Series
DS-GTC-711
DS-GTC-711-2
DS-GTC-703
DS-GTC-703-2
DS-GTC-714
DS-GTC-714-2
DS-GTC-715
DS-GTC-715-2
DS-GTC-716
DS-GTC-716-2
DS-GTC-717
DS-GTC-717-2
DS-GTC-718
DS-GTC-718-2
w ww.havis.com
1-800-524-9900
Advertisement
Related Manuals for Havis DS-GTC-711
Summary of Contents for Havis DS-GTC-711
- Page 1 Owner’s Manual Havis Docking Station For Getac Z710 & ZX70 Rugged Tablets DS-GTC-7X0 Series DS-GTC-711 DS-GTC-714 DS-GTC-716 DS-GTC-718 DS-GTC-711-2 DS-GTC-714-2 DS-GTC-716-2 DS-GTC-718-2 DS-GTC-703 DS-GTC-715 DS-GTC-717 DS-GTC-703-2 DS-GTC-715-2 DS-GTC-717-2 w ww.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-GTC-7X0 Series Docking Station for the Getac Z710 & ZX70 Rugged Tablets. For questions regarding the set-up of your DS-GTC-7X0 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com...
- Page 3 Signed for and on behalf of Havis, Inc.: Warminster, PA, USA June 10, 2014 Bruce Jonik, Director of Engineering , Havis,Inc. FCC 47CFR, Part 15 compliance: to the model DS-GTC-7XX not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.
- Page 4 Parts Included Docking Station (Optional, Part #s DS-GTC-711-2/713-2/ 714-2/715-2/716-2) (DS-GTC-711/711-2) (DS-GTC-714/714-2) (DS-GTC-715/715-2) Hardware Kit...
- Page 5 (Optional - DS-GTC-714-2) Power Only Port Replication (POGO Connector Only) (DS-GTC-715, DS-GTC-715-2) Speaker Power Input Antenna Connectors (SMA) (Optional - DS-GTC-715-2) (DS-GTC-711-2, DS-GTC-712-2, DS-GTC-703-2, DS-GTC-714-2, DS-GTC-715-2) In reference to the GETAC Z710 & ZX70 Antenna connections ANT. B ANT. A Z710 WWAN...
- Page 6 (Hardware Kit Item 3), four (4) Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%. Havis Desktop Stand installation (sold seperately, Part # DS-DA-218). Washer, M4 Lock Washer,M4 M4 x 0.7x12mm...
- Page 7 Tie off cables onto a stationary part of the mounting system. Collect cables and secure This loop must be large enough to the mounting system. to allow full range of expected rotation and extension without (Note: Mounting system not included) stressing connections. www.havis.com •1-800-524-9900...
- Page 8 Operation - Docking DO NOT FORCETABLET ONTO DOCKING STATION. IFTHEREIS RESISTANCE, CHECK ALIGNMENT OF TABLET ON DOCKING STATION. NOTE: Ensure a proper connection by aligning the tablet’s Alignment Sockets with the Docking Station’s Alignment Posts Alignment Posts Alignment Sockets DS-GTC-7X0 Series Docking Station Bottom of Getac Z710 Rugged Tablet Ensure Docking Station is unlatched by lifting Latch Handle.
- Page 9 Operation - Docking Hold tablet in landscape orientation, and guide into the Docking Station. Next, lower tablet into the bottom of the Docking Station, while ensuring that the alignment sockets are aligned with the Docking Station’s Alignment Posts. When tablet is properly seated in the Docking Station, lower the Latch Handle to secure tablet in place.
- Page 10 Operation - Docking (continued) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2). Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding tablet with one hand, lift the Latch Handle on the top of Docking Station.
- Page 11 Related Products with the DS-GTC-7X0 Series Docking Station. For more information or to order, please visit www.havis.com. LPS-164 40W Getac Power Supply for DS-GTC-710 Docking Stations External in-vehicle power supply and cable for Getac Z710/ZX70 Rugged Tablets with cigarette lighter adaptor.
- Page 12 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 www.havis.com 1-800-524-9900 DS-GTC-7X0-SERIES_OMN_09-22...
