Installation - Eltek PRS Quick Start Manual

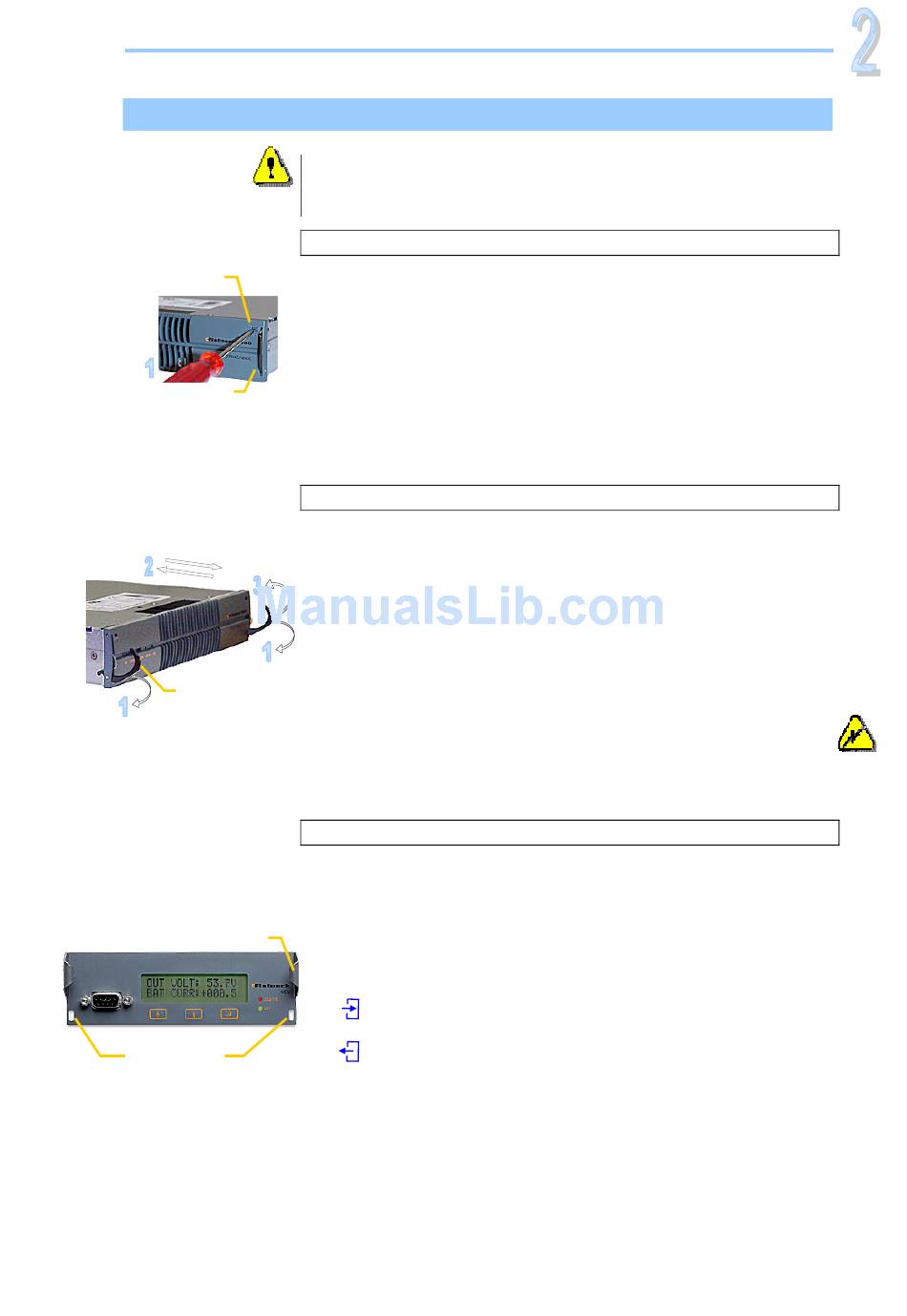

Installing Rectifier Modules and MCU Controller
Hole to release the
handle's spring mechanism
Flatpack
rectifier
Handel in locked position
Flatpack
rectifier
MCU Controller
Fastening
holes
Quick Start Guide Flatpack PS System
CAUTION:
- The modules may be warm, but do not hand-carry them by their handles
- Open the handles before inserting them into the power shelves
Device
hazard
Mounting Flatpack rectifier modules
1. Open the handles by
2. Insert the module fully into the power shelf, so that it makes
3. Lock the handles by
Removing Flatpack rectifier modules
1. Open the handles by
2. Remove the module
3. Lock the handles by
Handel in
unlocked position
4. Mount blind panels in
Mounting and Removing the MCU Controller
Note that cables are plugged to the MCU's rear panel. When
mounting the controller, you must plug the cables before step 2.
When removing it, unplug the cables during step 2.
Handle
1. Unlock the controller by
2. Insert or remove the module by
3. Lock the controller by
inserting a screwdriver into the holes to release the spring
mechanism
proper contact
pushing the handles up into their housings (locked position),
so that the module makes proper contact and is secured locked
inserting a screwdriver into the holes to release the spring
mechanism
using both handles to pull the module loose; support from
underneath
pushing the handles up into their housings (locked position). It
is then ready for transport
unused module locations
unscrewing the two fastening screws on the front
sliding it fully into the power shelf
or
using both handles to pull the controller loose. Unplug the
cables, when removing the MCU module
screwing the two fastening screws on the front. It is then
securely locked in the shelf. Or ensure the screws do not fall
out of the holes, when removing the MCU module
356803.103, v4-2006-10

Installation

Electric
3
