Introduction
The Flatpack Product Range
Eltek Energy's Flatpack product range utilizes the Flatpack rectifier and the MCU controller as
building blocks for implementing effective DC power systems, suitable for a wide range of
applications and power ratings.
MPSU
Modular Power Supply Unit
MPSU systems consist of the power system, which includes rectifiers and controller(s), and the
distribution unit (1U or 4U high). MPSU systems are sold primarily for mounting in existing
cabinets.
In PRS systems, the cabinet contains the power system and the distribution unit. In addition, the
cabinet may also enclose battery banks, additional distribution and other dedicated equipment.
Brief System Description ⎯ Flatpack
The Flatpack PS system is a compact, powerful and cost-effective DC power supply system,
specifically developed for the telecom industry.
Alarm Outputs NC-C-NO
Flatpack
PRSB
AC Fuses,
external
(230VAC or
400VAC
AC Supply
(Single- or
three-phase)

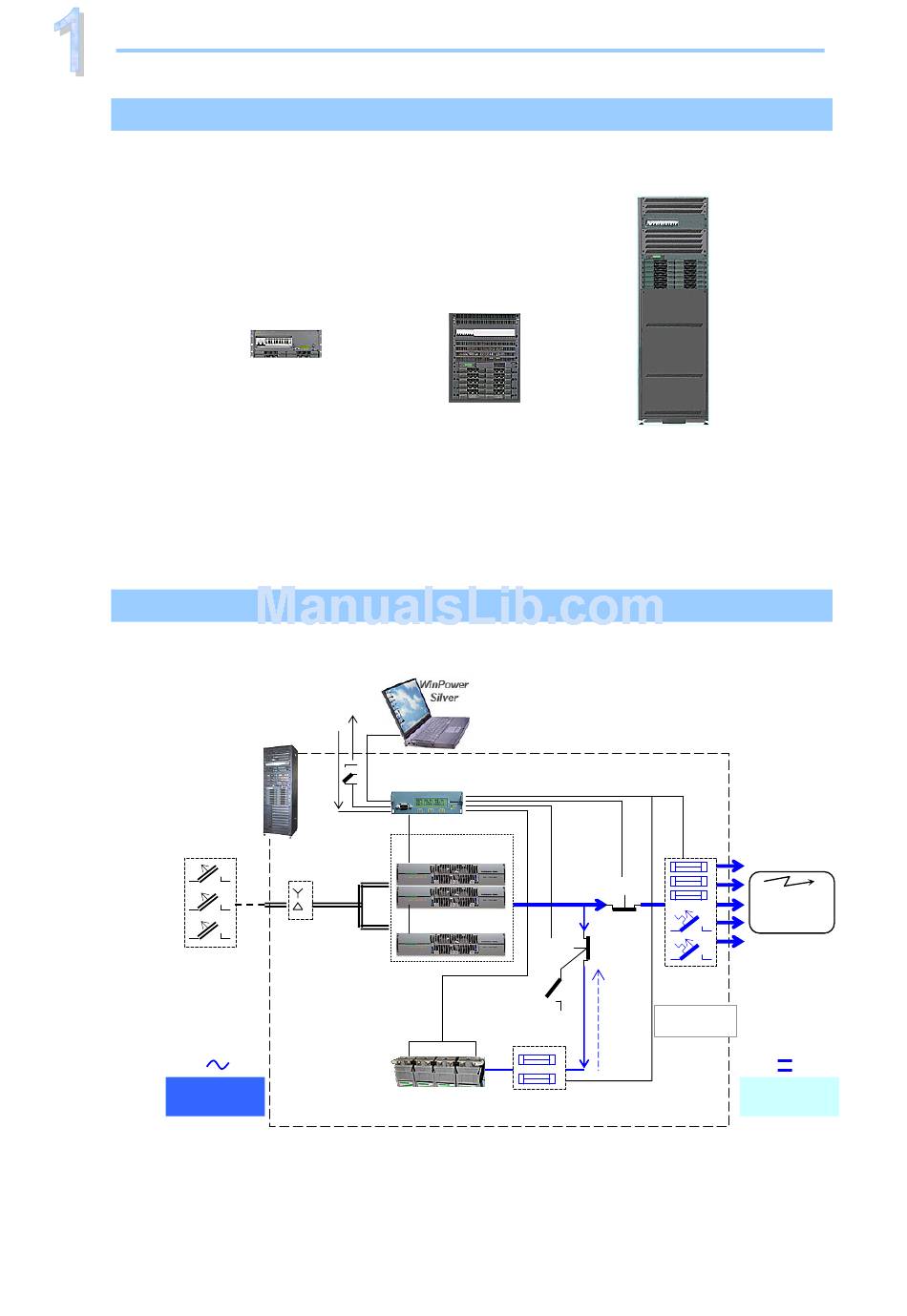

Example of a typical Flatpack PS system for DC power supply of telecom equipment. The system is fed
from an external AC mains supply, and consists of rectifiers in power shelves, a control unit and DC
distribution unit. Battery banks, LVD contactors, etc. are typically also a part of the system.
2
PRSV
Power Rack System
Wall-mounted
Digital Inputs
Flatpack MCU
(Ctrl. Unit)
Flatpack
(rectifiers)
AC mains
supply
selector
Symmetry
Alarm &
Temp. Sensor
Battery string #1
Quick Start Guide Flatpack PS System
PRSB
Power Rack System
with or without Batteries
Fuse Alarm
LVLD
LVBD
Load Fuses
& MCBs
Service
Switch
+/-
distribution
Battery
Fuses
Telecom
equipment
DC
DC Supply
(24V, 48V
or 60V)
