Communication
Installing WinPower Silver ⎯ PC Application
WinPower Silver software enables you to configure and operate the Flatpack PSS from a
personal computer.
Installation
1. Connect the MCU's D-Sub to one of the PC's COM port using an RS232C serial cable
2. Install WinPower Silver in the PC
3. Verify that MCU and PC have equal communication parameters,
e.g.: 9600 baud, 8b, P=N, Sb=1
Flatpack PRS
MCU
Control Unit
D-Sub
Technical Room

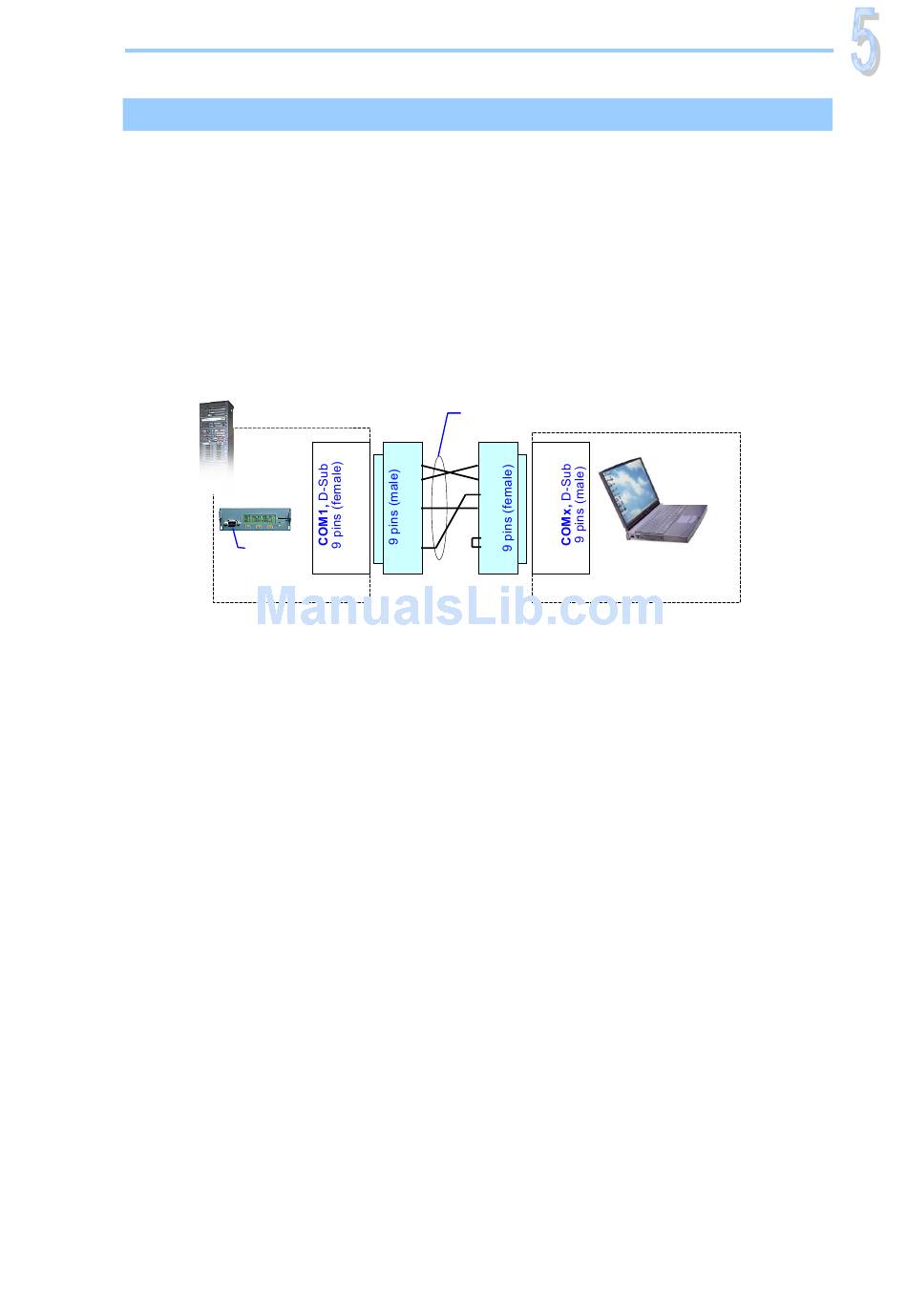

Quick Start Guide Flatpack PS System
RS232C serial cable, 9—9 pins
Max. 15m, RS232 driver protocol
1 1
RxD
2 2
TxD
3 3
4 4
GND
5 5
6 6
7 7
CTS
8 8
9 9
D-Sub D-Sub
