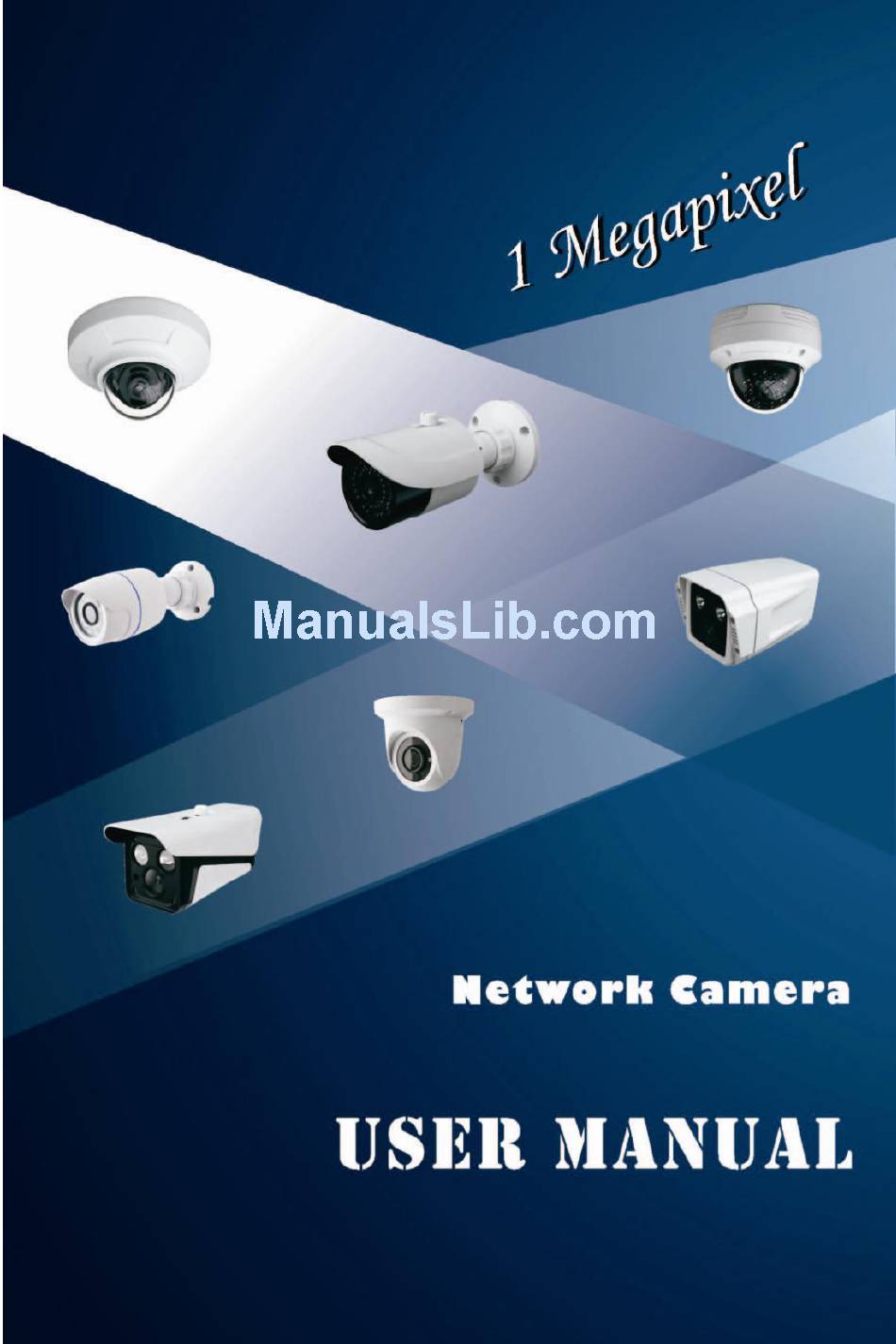

1 megapixel
Hide thumbs Also See for WIP1VD:

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WIP1VD and is the answer not in the manual?

Questions and answers

Summary of Contents for Genie WIP1VD

  • Page 2 Notes on Safety  Please use the specified power supply to connect.  Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers.  There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
  • Page 3: Table Of Contents

    Table of Contents Introduction ........................1 IE Remote Access ......................2 LAN ..............................2 2.1.1 Access through IP-Tool ....................2 2.1.2 Directly Access through IE ..................... 3 WAN ............................... 5 Remote Preview ......................7 The Remote Preview Interface ......................7 Playback ............................
  • Page 4 Network Camera User Manual Appendix 1 Q & A ........................... 26 Appendix 2 Specifications ........................27...
  • Page 5: Introduction

    Network Camera User Manual 1 Introduction This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It adopts state of the art video processing chips. It utilizes most advanced technologies, such as video encoding and decoding technology, complies with the TCP/IP protocol, SoC, etc to ensure this system more stable and reliable.
  • Page 6: Ie Remote Access

    Network Camera User Manual 2 IE Remote Access You may connect IP-Cam via LAN or WAN. Here only take IE browser (6.0) for example. The details are as follows: 2.1 LAN In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access through IE browser.
  • Page 7: Directly Access Through Ie

    Network Camera User Manual For example, the IP address of your computer is 192.168.13.4. So the IP address of the camera shall be changed to 192.168.13.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting. ...
  • Page 8 Network Camera User Manual ① Manually set the IP address of the PC and the network segment should be as the same as the default settings of the IP camera. Open the network and share center. Click “Local Area Connection” to pop up the following window. Select “Property”...
  • Page 9: Wan

    Network Camera User Manual ② Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically. ③ After downloading Active X control, the login dialog box will pop up. ④...
  • Page 10 Network Camera User Manual  Access through PPPoE dial-up Network connection You may access the camera through PPPoE auto dial-up. The setting steps are as follow: ① Go to ConfigNetwork ConfigPort menu to set the port number. ② Go to Config Network ConfigIP Address menu. Check “PPPoE” and then input the user name and password which you can get from your internet service provider.
  • Page 11: Remote Preview

    Network Camera User Manual 3 Remote Preview 3.1 The Remote Preview Interface People icon Zoom in Start recording Fix size Zoom out Playback Actual size Full screen Snap When motion detection alarm is triggered, the people icon will turn red. ...
  • Page 12: Playback

    Network Camera User Manual Online user: Display the current user connecting to the device. System information: Display the device information: device name, firmware version, software build date, kernel version and hardware version. 3.2 Playback Before you play the record files, please make sure you have recorded. You can click button to record.
  • Page 13 Network Camera User Manual Single Snap Snap multiple pictures: Select the picture number from Frame pull down list box, such as 2, and check “Title” and “Time” to show capture title and time on the snap pictures simultaneously. Multi-picture Snap...
  • Page 14: Remote Live Surveillance

    Network Camera User Manual 4 Remote Live Surveillance Functions of remote configurations include: System Configuration, Video Configuration, Alarm Configuration, Network Configuration and Advanced Configuration. You should select the menu on the left, and then set up the relative parameters. 4.1 System Configuration The “System configuration”...
  • Page 15: Video Configuration

    Network Camera User Manual 1. Go to System ConfigDate & Time menu as shown below. 2. Set time zone. 3. Enable DST mode as required. 4. Set time. You may set time manually or enable NTP. 4.2 Video Configuration Camera Configuration includes five submenus: Camera, Video Stream, OSD Config, Video Mask and ROI Config.
  • Page 16: Video Stream

    Network Camera User Manual 4. Wide dynamic, sharpen, denoise and distortion correction are adjustable. 5. Set day-night mode, sensitivity, infrared mode and exposure type. 6. You may enable the image mirror and image overturn function. 7. Press the “Save” button to save the settings. Before distortion correction After distortion correction 4.2.2 Video Stream...
  • Page 17: Osd Configuration

    Network Camera User Manual 4.2.3 OSD Configuration Go to “Video Config”  “OSD Config” menu to display the interface as shown below. You may set time stamp, device name and custom OSD here. Drag the time stamp and custom OSD to set their position. Then press the “Save” button to save the settings. 4.2.4 Video Mask Go to “Video Config”...
  • Page 18: Roi Configuration

    Network Camera User Manual 3. Click “Save” button to save the settings. 4. Return to the live to see the following picture. Clear the video mask: Go to video mask menu and then click “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration To set up ROI 1.
  • Page 19: Alarm Configuration

    Network Camera User Manual 4.3 Alarm Configuration Alarm configuration includes four submenus: Motion Detection Area, Motion Detection Trigger, Motion Detection Schedule and Alarm Server. 4.3.1 Motion Detection Area 1. Go to “Alarm configuration” “Motion Detection Area” to see an interface as below. 2.
  • Page 20: Motion Detection Schedule

    Network Camera User Manual 4.3.3 Motion Detection Schedule Go to “Alarm configuration” “Motion Detection schedule” interface as shown below. Week schedule You can set the alarm time from Monday to Sunday for alarm everyday in one week. Add: Add the schedule for a special day. Erase: Delete holiday schedule.
  • Page 21: Network Configuration

    Network Camera User Manual to the alarm server. If the alarm server is not used, there is no need to you to configure here. 4.4 Network Configuration Network configuration includes nine submenus: Port, IP Address, Server Configuration, IP Notify, DDNS Config, RTSP, UPNP, Mail configuration and FTP. 4.4.1 Port 1.
  • Page 22: Server Configuration

    Network Camera User Manual There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the following IP address. You may choose one of options as required. Use the following IP address: display the IP address, subnet mask, gateway and DNS of the device.
  • Page 23: Ddns Configuration

    Network Camera User Manual 4.4.5 DDNS Configuration 1. Go to “Network Configuration”  “DDNS Configuration” tab as shown below. 2. Apply for a domain name. Take WWW. dvrdydns.com for example. in the IE address bar to visit its website. Then click “Registration” Input www.dvrdydns.com button to register as shown below.
  • Page 24: Rtsp

    Network Camera User Manual 3. Select the server type and then input the username, password and domain name you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings. 4.4.6 RTSP Go to “Network Configuration” “RTSP” interface as shown below. 1.
  • Page 25: Ftp Setting

    Network Camera User Manual 1. From Email: sender’s e-mail address. 2. User name and password: sender’s user name and password. 3. Server address: SMTP name of sender. 4. Select the secure connection type at the Secure Connection pull down list according to user’ actual needs.
  • Page 26: Advanced Configuration

    Network Camera User Manual Parameter Meaning Server name The name of the FTP server The address of the FTP server Server address The port number of the FTP server Port User name The user name of the FTP server The password of the FTP server Password The save path for FTP files Path...
  • Page 27: Security Configuration

    Network Camera User Manual Modify User 3. Input original password of this user in the “Password” text box. 4. Input new password in the “New password” and “Confirmation” text box. 5. Input computer’s physical address which is used to access the server in the “User PC MAC” text box.
  • Page 28: Configure Backup & Restore

    Network Camera User Manual click “Delete” button to delete that MAC address. 6. Click “Save” button to save the above setting. 4.5.3 Configure Backup & Restore Go to Advanced configurationConfigure Backup & Restore Interface.  Import & Export Configuration: You can import or export the setting information from PC or to device. 1.
  • Page 29: Upgrade

    Network Camera User Manual 4.5.5 Upgrade Go to Advanced Configuration—Upgrade interface as shown below. 1. Click “Browse” button to select the save path of the upgrade file. 2. Click “Upgrade server firmware” button to start upgrading the application program. 3. The device will restart automatically. 4.
  • Page 30: Appendix

    Network Camera User Manual Appendix Appendix 1 Q & A Q: How to find my password if I forget it? A:Reset the device to the default factory settings. Default IP: 192.168.226.201 User name: admin Password: 123456 Q:Fail to connect devices through IE browser, why? A: Network is not well connected.
  • Page 31 Network Camera User Manual ④ Then click OK to finish setup. b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them. Appendix 2 Specifications...
  • Page 32 Network Camera User Manual 20m IR Water-proof Bullet Network 30m IR Water-proof Bullet Network Specification /Model Camera Camera Image Sensor 1/4" CMOS Image Size 1280×720 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Min. llumination 0.05lux@F1.2, AGC ON: 0lux with IR Camera Lens 3.6mm@F1.8, angle of view: 61°...
  • Page 33 Network Camera User Manual Specification /Model 30m LED Array Network Camera 50m LED Array Network Camera Image Sensor 1/4" CMOS Image Size 1280×720 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Min. llumination 0.05lux@F1.2, AGC ON: 0lux with IR 6mm @ F2.0, angle of view: 37° 8mm @ F2.0, angle of view: 28°...
  • Page 34 Network Camera User Manual Vandal-proof Mini Dome Network Specification /Model 20m IR Dome Network Camera Camera Image Sensor 1/4" CMOS Image Size 1280×720 Electronic 1/25s~1/100000s Shutter Auto Iris Fixed Iris Color: 0.05lux@F1.2, 0.05lux@F1.2, AGC 0.05lux@F1.2, AGC ON; Min. llumination AGC ON; 0lux with IR 0 lux with IR B/W: 0.01lux@F1.2,...
  • Page 35 Network Camera User Manual Specification /Model Flying-saucer Dome Network Camera Image Sensor 1/4" CMOS Image Size 1280×720 Electronic Shutter 1/25s~1/100000s Auto Iris Fixed Iris Min. llumination 0.05lux@F1.2, AGC ON: 0lux with IR 2.8mm @ F1.8, angle of view: 74° Lens Camera (2.0mm, 3.6mm optional) Lens Mount...
