E87030-00
E29935-00
E88062-00

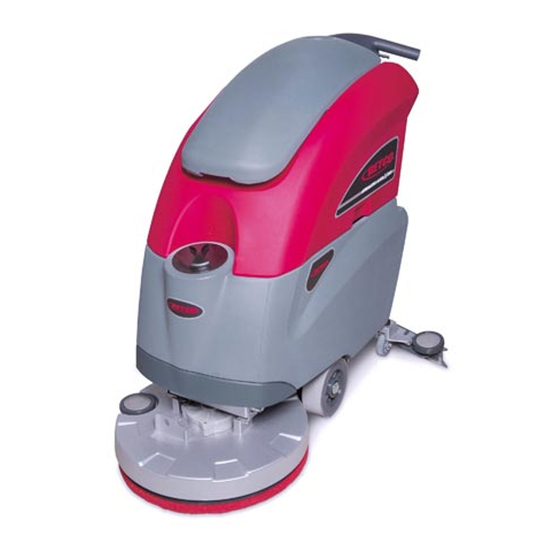

STEALTH
ASD20B
20" Automatic Scrubber
™
with Brush Assist

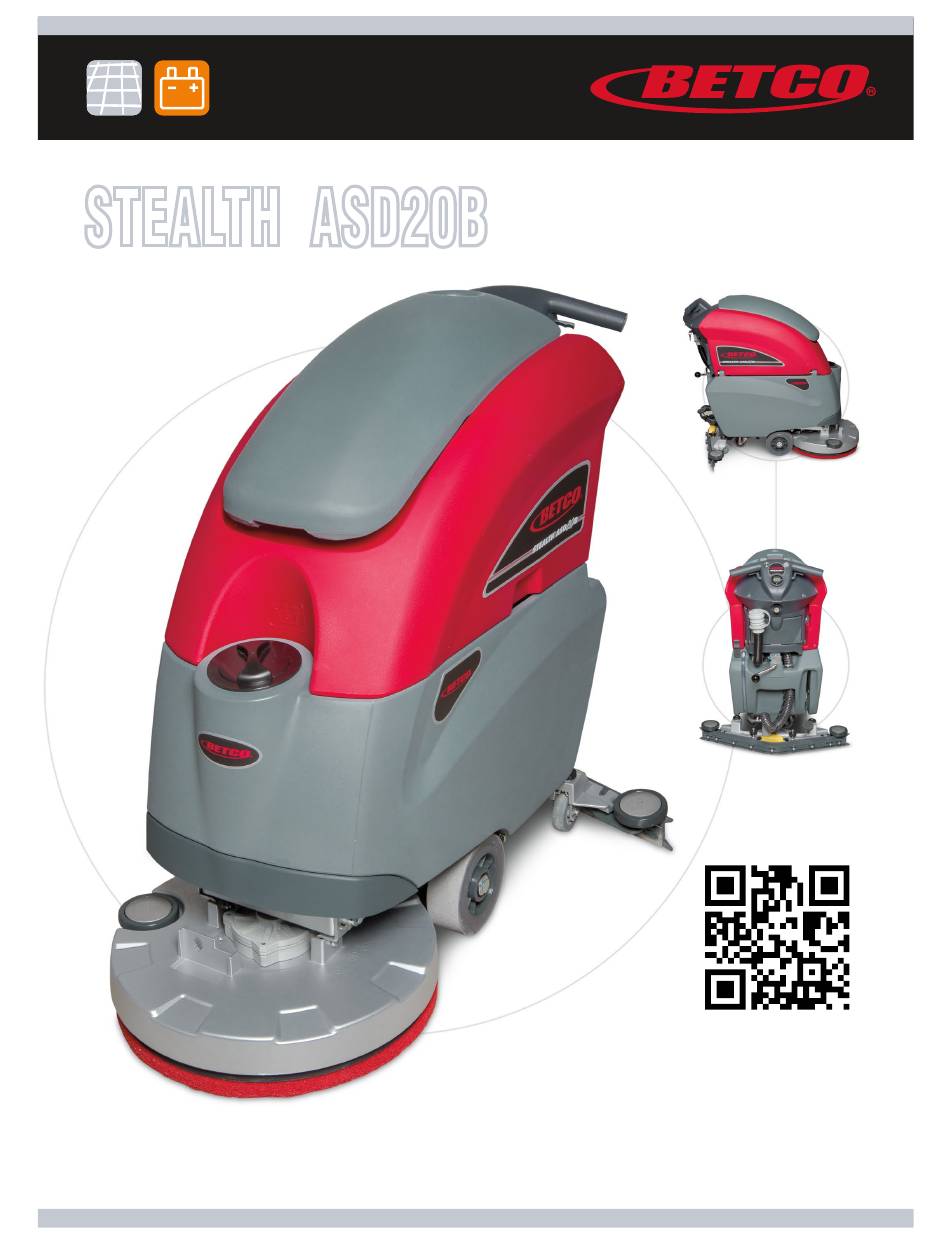

Scan this QR code to view
equipment page
Operator and Parts
Manual
400 Van Camp Road • Bowling Green, Ohio 43402
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stealth ASD20B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BETCO Stealth ASD20B

Summary of Contents for BETCO Stealth ASD20B

  • Page 1 20” Automatic Scrubber ™ with Brush Assist Scan this QR code to view equipment page Operator and Parts Manual 400 Van Camp Road • Bowling Green, Ohio 43402 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS RECEIVING THE MACHINE........3 - 4 GENERAL SAFETY REGULATIONS ......... 5 MACHINE PREPARATION ........6 - 12 OPERATION ............13 - 14 TURNING OFF THE MACHINE ........15 DAILY MAINTENANCE ..........16 -17 WEEKLY MAINTENANCE ..........18 TROUBLESHOOTING ........... 19 BRUSH AND SELECTION USE........19 MAINTENANCE SCHEDULE..........

  • Page 3: Receiving The Machine

    RECEIVING THE MACHINE Immediately check, when receiving the machine, that all the materials indicated on delivery documents have been received and also that the machine has not been damaged in transit. If it has been damaged, this damage must be immediately reported to the shipper and also to our customer’s service department.
  • Page 4 TECHNICAL DESCRIPTION Measurement Unit Stealth ASD20B ™ Rated power HP (W) 1.3 (950) Working width In (mm) 19.7 (500) Rear squeegee width In (mm) 29.2 (742) Work capacity /h (m 18,500 (1720) Water consumption g/m2 Brush & Pad (diameter) in (mm) 20 (500) Brush RPM Brush pressure...

  • Page 5: General Safety Regulations

    • Before using the machine make sure that all doors and covers are positioned as shown in this operating and maintenance manual. • When your BETCO machine is ready to be retired, the machine must be disposed of properly. It contain oils and electronic components. The machine was built using totally recyclable materials.

  • Page 6: Machine Preparation

    MACHINE PREPARATION 1. HANDLING THE PACKED MACHINE Do not place more than two packages on top of each other. The total weight is Lbs. (100 kg). The overall dimensions of the package are: A : 45.1 in (1145 mm) B : 26.2 in (665 mm) C : 48.4 in (1230 mm) 2.
  • Page 7 Height 9.6 in (245 mm) Weight Lbs. (31 kg) WARNING: Your charger and battery check card must be set ac- cording to the type of battery you install. Call BETCO customer service to ensure correct charger setting after replacement bat- teries are installed.
  • Page 8 MACHINE PREPARATION 5. BATTERY MAINTENANCE For maintenance and recharging, follow the instructions provided by the battery manufacturer. 6. BATTERY DISPOSAL When the battery reaches the end of its working life, it must be disconnected by a certified professional, then lifted (using the handles and suitable lifting device) to remove it from the battery compartment.
  • Page 9 MACHINE PREPARATION 9. CONNECTING THE BATTERY CONNECTOR Connect the battery connector (2) to the machine connector (1) 10. BATTERY INDICATOR The battery indicator uses LEDs and has 8 positions (7 yellow - charged batter- ies, and 1 red - discharged batteries). WARNING: A few seconds after the red indicator light comes on, the brush motor switches off automatically.
  • Page 10 MACHINE PREPARATION 11. INSTRUMENT PANEL COMPONENTS The instrument panel components are identified as follows: A. Levers to activate brushes / traction (located beneath the grip) B. ON/OFF key switch C. Battery level / hour meter 12. REAR COMPONENTS The rear components are identified as follows: A.
  • Page 11 MACHINE PREPARATION 15. ADJUSTING THE SQUEEGEE HEIGHT The height of the squeegee must be adjusted based on wear of the squeegee blade. To do this, turn the knobs (2) counter clockwise to raise the squeegee, and clockwise to lower it. Note: the right and left wheels must be adjusted to the same level, so the squeegee works parallel to the floor.
  • Page 12 MACHINE PREPARATION 18. SOLUTION TANK Remove the front inlet cap and confirm the solution filter is correctly installed. Confirm the filter cap (beneath the solution tank, at the back) is correctly closed. 19. SOLUTION TANK Fill the tank with clean, room temperature water through the front fill location (1).

  • Page 13: Operation

    OPERATION 1. MACHINE OPERATION A. Connect the battery plug to the machine plug. B. Turn the key (1) of the main switch to the "ON" position (clockwise). The bat- tery charge level indicator lights will immediately turn on. C. Turn on the water valve (2) (the water dispenses automatically when the brush is turning).

  • Page 14: Operation

    OPERATION 2. FORWARD MOVEMENTS The traction of these machines is obtained by means of the pad which, work- ing slightly inclined, is able to pull the machine forward. To move the machine, activate the switch levers (1) on the handlebars. WARNING: When moving in reverse lift the squeegee.

  • Page 15: Turning Off The Machine

    SHUTTING DOWN THE MACHINE 1. AFTER FINISHED CLEANING Do the following when shutting down the machine and before you perform any type of maintenance: A. Turn off the solution valve using the knob (1) B. Raise the brush deck using the foot pedal (2) C.

  • Page 16: Daily Maintenance

    DAILY MAINTENANCE 1. CLEANING THE RECOVERY TANK A. Raise the vacuum cover (1). B. Remove the drain hose (2) from its holder and empty the tank. C. Rinse the inside of the tank with water. D. Close the recover tank cover on the machine and replace the drain hose cap and drain hose.

  • Page 17: Daily Maintenance

    DAILY MAINTENANCE 4. CLEANING THE SQUEEGEE For the best floor drying performance keep the squeegee clean. To clean it: A. Remove the vacuum hose from the squeegee. B. Loosen the knobs (1) that hold the squeegee shoe adapter. C. Remove and clean the squeegee shoe adapter. D.

  • Page 18: Weekly Maintenance

    WEEKLY MAINTENANCE 1. CLEANING THE SQUEEGEE HOSE Every week, or whenever vacuum seems to be unsatisfactory, check the squee- gee hose for obstructions. To clean it, proceed as follows: A. Remove the hose from the sleeve on the squeegee. B. Remove the other end from the recovery tank. C.

  • Page 19: Troubleshooting

    TROUBLESHOOTING GUIDE INSUFFICIENT WATER ON THE PAD 1. Check the valve – located beneath the symbol – (1) is turned on. 2. Confirm that there is water in the solution tank. THE MACHINE DOES NOT CLEAN WELL 1. Check the condition of the pad and, if necessary, replace it. 2.

  • Page 20: Maintenance Schedule

    MAINTENANCE SCHEDULE RECOMMENDED SERVICE Stealth ASD20B INTERVALS (HOURS) 100 200 400 1,000 DAILY BATTERIES Check water level add if necessary DAILY Check cleanless of machine battery tray ELECTRIC Check tightness of electric contacts and fuses Check state of electric cables...

  • Page 21: Wear Items Listing

    WEAR ITEMS LISTING Wear Items - Before Serial Number 214999999 Wear Items - After Serial Number 215000000 Part # Description Part # Description E88268 Pad Driver E82320 Pad Driver E88330 Brush, General Purpose 20" 0.3mm E83033 Brush, General Purpose 20" 0.3mm E88269 Brush, Medium Duty 20"...

  • Page 22: Parts Diagrams And Listings

    BRUSH DECK DIAGRAM - BEFORE SERIAL NUMBER 214999999...
  • Page 23 BRUSH DECK PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. E83802 Hex Bolt M8x30 Zinc E88272 Brush Deck Splash Guard E20073 Brush Deck E81709 Nyloc Hex Nut, M8 Zinc E83970 Bushing E83404 Flat Washer M9x24x2.5 Zinc...
  • Page 24 BRUSH DECK DIAGRAM - AFTER SERIAL NUMBER 215000000...
  • Page 25 BRUSH DECK PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E84318 Brush Deck Housing E83970 Bushing E83035 Brush, Heavy Duty 20" 0.7mm E82309 Spring, 11.8x1.2x15mm Zinc Compression E83033 Brush, General Purpose 20" 0.3mm E83802 Hex Bolt M8x30 Zinc E82320...
  • Page 26 BRUSH DECK DRIVE DIAGRAM - BEFORE SERIAL NUMBER 214999999 19.11 19.1...
  • Page 27 BRUSH DECK DRIVE PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. E82845 Spacer E20011 Motor Mount Plate E82312 Bushing E88245 Motor, Geared 24V 400W 140 RPM E83833 Hex Bolt M8x25 Zinc 19.11 E20451 Fitting, Solution Delivery Tube...
  • Page 28 BRUSH DECK DRIVE DIAGRAM - AFTER SERIAL NUMBER 215000000 8.1 8.2 4.4.1 4.4.2...
  • Page 29 BRUSH DECK DRIVE PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E84326 Threaded Rod E20123 Lock Washer M5x1.6 Zinc E22639 Tubing, 1.25" E83799 Flat Washer M6.6x18x2 SS E84327 Tubing, 6.5" E81874 Flat Washer M8x17x1.6 Zinc E22640 Cable Sheath...
  • Page 30 SQUEEGEE ASSEMBLY DIAGRAM - BEFORE SERIAL NUMBER 214999999...
  • Page 31 SQUEEGEE ASSEMBLY PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. E82253 Bushing, Brass OD 11.95mm x ID 8.9mm x L 8.45mm 1 E83909 Squeegee Blade, Polyurethane 30" x 1 3/4" x 1/8" 1 E12560 Squeegee Blade, Polyurethane 30 3/4"...
  • Page 32 SQUEEGEE ASSEMBLY DIAGRAM - AFTER SERIAL NUMBER 215000000...
  • Page 33 SQUEEGEE ASSEMBLY PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E84336 Mounting Stud E22352 Center Front Squeegee Blade Clamp E22637 Squeegee Blade Kit, 31" E22635 Clamp, Front Squeegee Blade E84277 Squeegee Blade Kit, Poly, 31" E22355 Center Rear Squeegee Blade Clamp E84278...
  • Page 34 SQUEEGEE YOKE DIAGRAM - BEFORE SERIAL NUMBER 214999999...
  • Page 35 SQUEEGEE YOKE PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. E82279 Spring E83590 Chain E88279 Micro Switch Sealed E83655 Adjuster Knob E20373 Guide Bushing E20286 Squeegee Yoke E20227 Squeegee Yoke ASM E85499 Hex Nut, M8x6.5 SS E20644...
  • Page 36 SQUEEGEE YOKE DIAGRAM - AFTER SERIAL NUMBER 215000000...
  • Page 37 SQUEEGEE YOKE PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E20006 Bushing E83824 Square Nut, M8 SS E88279 Micro Switch Sealed E81673 Nut, Hex Nyloc, M3 Zinc E20408 Squeegee Lift Lever E81342 Nut, Hex Jam, Nyloc, M8 SS E84339...
  • Page 38 MAIN FRAME DIAGRAM - BEFORE SERIAL NUMBER 214999999 20.1 20.4 20.2 20.4 20.5...
  • Page 39 MAIN FRAME PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. 20.4 E81874 Flat Washer M8x17x1.6 Zinc E82834 Pivot Block E20437 Castor 20.5 E20532 Axle Mounting Bracket E81735 Hex Bolt M12x35 Zinc 20.6 E81709 Nyloc Hex Nut, M8 Zinc...
  • Page 40 MAIN FRAME DIAGRAM - AFTER SERIAL NUMBER 215000000...
  • Page 41 MAIN FRAME PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E20006 Bushing E83550 NyLoc Hex Nut, M6 Zinc E83597 Brush Deck Lift Idler Arm Weldment E86853 Nyloc Hex Nut, M8 Zinc E20370 Foot Pedal E81627...
  • Page 42 SOLUTION TANK DIAGRAM 1.14 1.18 1.12 1.17.1 1.17 1.11 1.19 1.17.2 1.17.3 1.17.2 1.17.3 1.15 1.16...
  • Page 43 SOLUTION TANK PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. 1.18 E20577 Spacer E20285 Solution Tank ASM E88258 Hose, Glass Reinforced 15 OD x 10 ID x 496 L 1.19 E20602 Fitting, Barbed Threaded E20409 Foot Pedal Latch Plate E20411 Bracket E20611...
  • Page 44 RECOVERY TANK DIAGRAM 3.10 3.11.2 3.11.1...
  • Page 45 RECOVERY TANK PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. 3.11.2 E20188 Hinge Pin E88499 Hose, Vacuum E20074 Hinge Pin E83833 Hex Bolt M8x25 Zinc E20354 Recovery Tank ASM E82638 Screw, Pan Hd Phil Self Tap M3.9x13 SS E20189 Fitting, Barbed E82808...
  • Page 46 VACUUM UNIT DIAGRAM 2.27 2.19 2.11 2.13 2.30 2.26 2.29 2.14 2.23 2.18 2.17 2.15 2.10 2.16 2.24 2.22 2.28 2.12 2.25 2.26 2.20.2 2.21 2.20.1 2.20.3 2.20 2.20.4...
  • Page 47 VACUUM UNIT PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20265 Plate 2.19 E20064 Support Bracket E20066 Recovery Tank Cover ASM 2.20 E88291 Vacuum Motor 24VDC 310W 2.20.1 E83897 Connector, Electrical Housing 30A E20305 Mounting Ring E20652 Sound Deadening Foam 2.20.2...
  • Page 48 SOLUTION DELIVERY DIAGRAM...
  • Page 49 SOLUTION DELIVERY PARTS LISTING Item# Part # Description Qty. Item# Part # Description Qty. E20602 Fitting, Threaded Barb E81035 Solenoid Valve E85762 Hose Clamp E22145 Fitting, 3/8" - 1/4" Reducer E22144 Tubing, 10 ID x 370 L E88829 Fitting, 90 Degree Elbow E20375 Tubing, 10 ID x 650 L...
  • Page 50 HANDLEBAR DIAGRAM - BEFORE SERIAL NUMBER 214999999 27.5 3.21 27.3 27.1 3.10 27.2 27.4 3.13 26.1 26.2 3.12 3.14 3.13 3.16 3.15 3.11 3.11 3.11 3.17 3.19 3.17 3.12 3.20 3.13...
  • Page 51 HANDLEBAR PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. 3.12 E20243 Pan Hd Phil Machine Screw M3x30 Zinc E20200 Handlebar Housing E82351 Key switch 3.13 E81673 Hex Nyloc Nut, M3 Zinc E83316 Key Switch 3.14...
  • Page 52 HANDLEBAR DIAGRAM - AFTER SERIAL NUMBER 215000000 3.36 3.14 3.45 3.15 3.27 3.39 3.44 3.38 3.41 3.24 3.40 3.10 3.17 3.23 3.22 3.25 3.43 3.16 3.12 3.23 3.19 3.16 3.31 3.28 3.15 3.13 3.29 3.29 3.11 3.3.3 3.26 3.3.1 3.21 3.17 3.18 3.33...
  • Page 53 HANDLEBAR PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. E20473 Switch Plate 3.25 E20362 Set Screw Hex Soc Dog Point M5x30 Zinc E88256 Micro Switch 3.26 E20298 Soc Button Head Screw M5x16 SS E20330 Ball Stud M10x22.5 3.27...
  • Page 54 ELECTRICAL DIAGRAM - BEFORE SERIAL NUMBER 214999999 MI 1 MI 2 OPTIONAL Rxe185 MI 4 MI 3...
  • Page 55 ELECTRICAL PARTS LISTING - BEFORE SERIAL NUMBER 214999999 Item# Part # Description Qty. Item# Part # Description Qty. MI 1 E82270 Micro Switch E88293 Hour Meter E82351 Key Switch MI 2 E82270 Micro Switch E88266 Relay Card MI 3 E88249 Micro Switch E86208 SB50 Red Electrical Connector...
  • Page 56 ELECTRICAL DIAGRAM - AFTER SERIAL NUMBER 215000000...
  • Page 57 ELECTRICAL PARTS LISTING - AFTER SERIAL NUMBER 215000000 Item# Part # Description Qty. Item# Part # Description Qty. Various Batteries E20713 Potentiometer Various Battery Charger Dilution Control Commutator Card (Not Used) Fuse Dilution Control Card (Not Used) E83316 Key Switch E81035 Solenoid Valve E84353...

  • Page 58: Electrical System

    ELECTRICAL DIAGRAM - BEFORE SERIAL NUMBER 214999999 Rxe 185 Rue 3x800 Rue 900 Rue 900 Rue 90 VACUUM BRUSH MOTOR MOTOR ELECTRICAL SYSTEM 1. ELECTRIC HARNESS INSPECTION A. Verify the functionality and adjustment of the micro switches of the switch levers.

  • Page 59: Vacuum System Inspection

    VACUUM SYSTEM INSPECTION 1. Verify the cleanliness and functionality of the float filter. 2. Check the air sealing of the vacuum head on the recovery tank. 3. Verify the connections and the sealing of the vacuum hoses and the squeegee hoses.

  • Page 60: Solution Tank Inspections

    BATTERY CHECK CARD/HOUR METER - BEFORE SERIAL NUMBER 214999999 1. Verify that when turning on the machine, the battery check card has the following starting sequence: • Turning on of the LED which correspond to the set-up (red LED = “0”). •...
  • Page 61 BATTERY CHECK CARD/HOUR METER - AFTER SERIAL NUMBER 215000000 1. Verify that when turning on the machine, the battery discharge indicator has the following starting sequence: • For the first 2 seconds, display the setting of the dip switches. • Then display the total worked hours and level of residual charge of the battery.

  • Page 62: Brush Base Adjustment

    BRUSH BASE ADJUSTMENT 1. Verify the right inclination of the brush deck. To adjust the brush deck: A. Lower the brush deck on the floor with the brush. B. Loosen the M8 bolt and the M8 nut that attach the brush deck to the left arm.

  • Page 63: Squeegee Adjustment

    SQUEEGEE ADJUSTMENT 1. Adjust the inclination adjuster of the squeegee blade until the blade has a common inclination over it's entire length. 2. Adjust the height of the wheels using the knob checking that the blade has an inclination between 30 and 45 degrees. 3.

  • Page 64: Warranty

    Service Distributor. If the original part is returned within the warranty policy period from date of delivery for inspection by Betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
