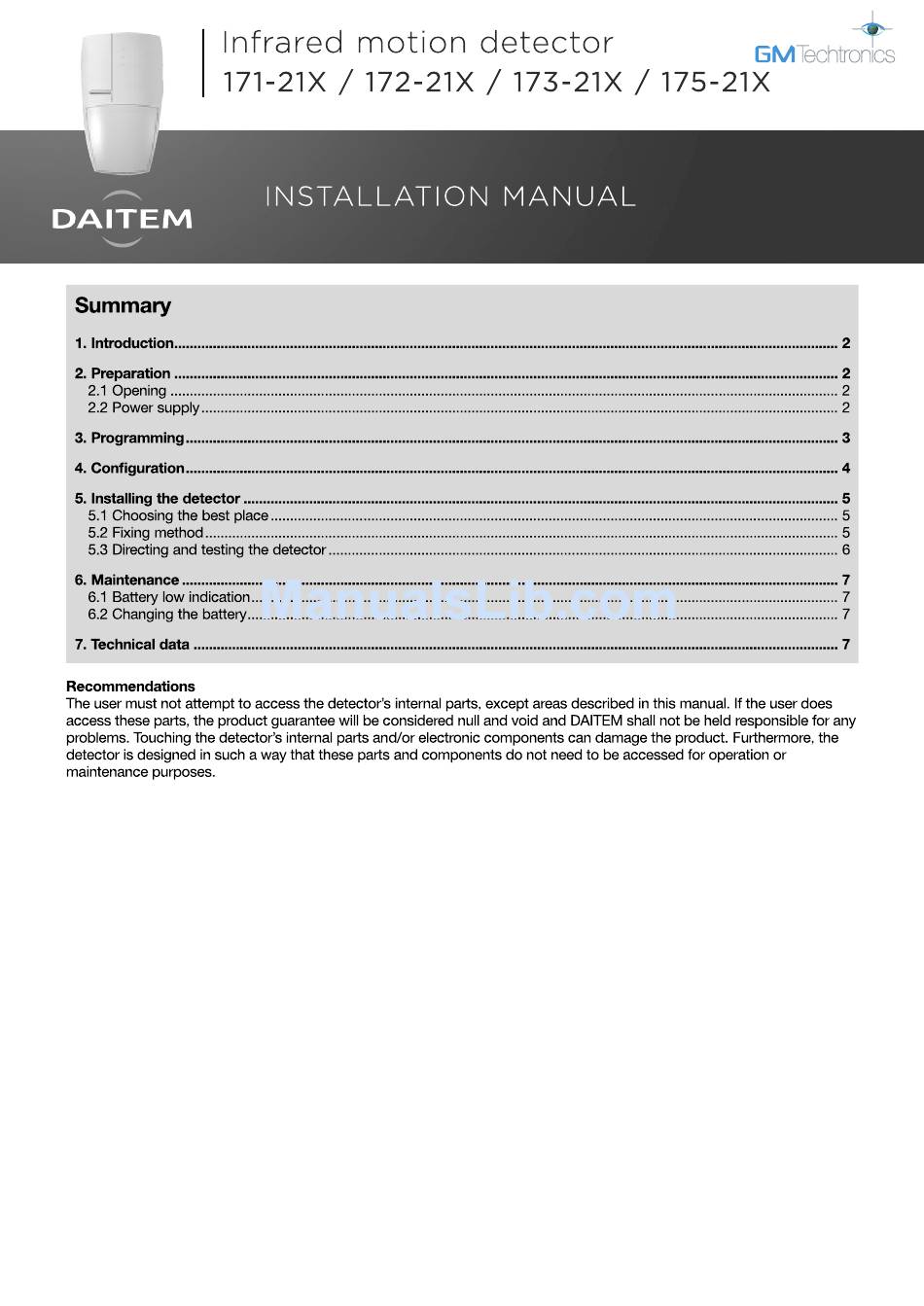

Summary of Contents for DAITEM 171-21X
- Page 2 The detector also detects freezing temperatures based on a thermostatic principle (a technical alarm is triggered when the temperature drops below 5°C). • 171-21X/175-21X: motion detector • 172-21X: corridor detector (9 fields- • 173-21X: curtain detector (9 fields- (19 fields-of-view, 12 m, 90°) is...
- Page 3 3. Programming IMPORTANT: during recognition programming, the product to be programmed for use with the control panel does not need to be placed next to it. In fact, we recommend you place the product at a short distance from the control panel (at least 2 meters away).
- Page 4 • Detection parameter selection: Choice Parameter Parameter Technical data of function n° value Detection sensitivity edge triggering: not recommended for detector 171-21X/175-21X edge triggering (factory setting): recommended for interior using detector 171-21X/175-21X Alarm level Intrusion (factory setting) Prealert Deterrence Warning...
- Page 5 5. Installing the detector 5.1 Choosing the best place IMPORTANT: make sure there is a distance of at least 2 meters between each product, except between two detectors. The motion detector must be placed: • inside the building, • 2.20 m above ground level •...
- Page 6 • the radio link (see § on checking the radio swivel bracket, check there is no obstacle between the detection area and link in the control panel manual). the detector. “beep, detector X, 171-21X 172-21X 175-21X 173-21X group Y immediate (or delayed or combined)”...
- Page 7 • The lithium battery pack must be replaced by the same type of pack with the same technical characteristics (BATLi25, 2 x 3.6 V – 2 Ah). • We advise you to use the DAITEM BatLi25 pack available in the catalogue in order to guarantee individual safety and equipment reliability.
- Page 8 • Low Voltage Directive: 2006/95/CE • ROHS Directive: 2002/95/CE in compliance with the following harmonised European Standards: Products code 171-21X 172-21X 173-21X 175-21X EN 300 220-2 V2.1.2 EN 300 330-2 V1.3.1 EN 50130-4 (95) + A1 (98) + A2 (2002) EN 55022 &...
