Summary of Contents for DAITEM SH273AX

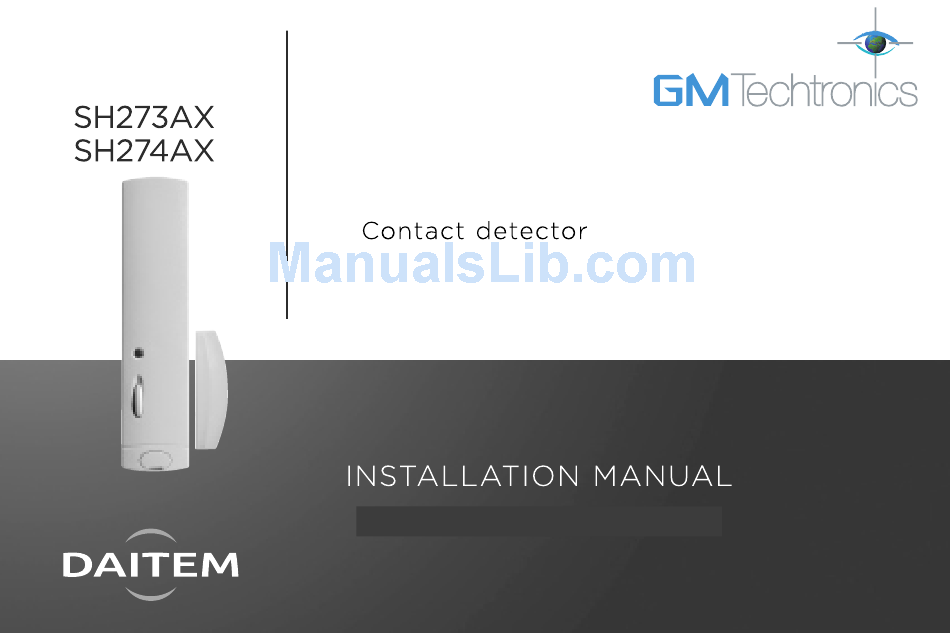

- Page 1 Updated for e-Nova applications...
-
Page 2: Table Of Contents
• The operating differences with 3. Programming....59 former ranges are described in the compatibility booklet 4. Installing......60 available in the Daitem installers 4.1 Choosing section at www.daitem.co.uk. the best place .... 60 4.2 Fixing method and installing the magnet holder.. -
Page 3: Preparation
If the user does access these parts, the product into position (see diagram below). guarantee will be considered null and void and DAITEM shall not be held responsible for any problems. Touching the siren’s internal parts and/or electronic An arrow indicates which way to components can damage the product. -
Page 4: Programming
3. Programming 2. Programme the device as follows: During recognition programming, the product to be “detector X” “group ?” “time delay?” “beep, detector X, programmed for use with the group Y, control panel does not need to immediate be placed next to it. In fact, we (or delayed recommend you place the or combined)”... -
Page 5: Installing
• Example: programming of 1 detector allocated to Group 2 with immediate triggering. “detector 1” “group ?” “time delay?” “beep, detector 1 group 2, immediate” then 10 s max. 4. Installing IMPORTANT: make sure there is a distance of at least 2 meters between each product, except between 2 detectors. -
Page 6: Fixing Method And Installing The Magnet Holder
4.2 Fixing method and installing the magnet holder Fix the back plate to the wall using 2 screws suitable for wall fixing. When the entrance is closed the magnet holder must be positioned opposite the built-in contact less than 5 mm away from it. 1. - Page 7 Overview of opening and closing distances between the contact 4. Clip and then screw the detector and the magnet used by the built-in contact to analyse any detector to its base. Fit the change in entrance status. screw head plug (supplied Built-in contact opening and closing distances with the bunch of plastic Movement...
-
Page 8: Testing
5. Testing The contact detector has a “test” mode for testing: • the battery: the LED indicator lamp lights up when the test button is pressed to indicate the battery is working correctly, • detection: the LED indicator lamp lights up when the contact changes status, •... -
Page 9: Maintenance
• check detection of protected Pressing on the button for more 6. Maintenance entrance opening and closing: than 1 sec. causes the control panel to give a “Test” message 6.1 Battery low indication when the panel is in test or entrance entrance The control panel indicates when... -
Page 10: Changing The Battery
• The lithium battery pack must be replaced by the same type of pack with the same technical characteristics, i.e. (3 V). • We advise you to use the DAITEM BatLi31 pack available in the catalogue in order to guarantee individual safety and equipment reliability. -
Page 11: Technical Data
7. Technical data Specifications Contact detector Built-in magnetic contact Environment building interior Power supply DAITEM lithium battery (BatLi31 - 3 V) Battery life 5 years in normal conditions of use Radio links TwinBand® 400/800 MHz Test button programming, battery and detection test... - Page 12 To obtain advice when installing your Manufacturer: Hager Security SAS system or before returning equipment, Address: F-38926 Crolles Cedex - France please contact the Daitem technical Product type: Contact detector Trade mark: Daitem support team (see telephone number at We declare under our sole responsibility that the product to which this declaration relates...
