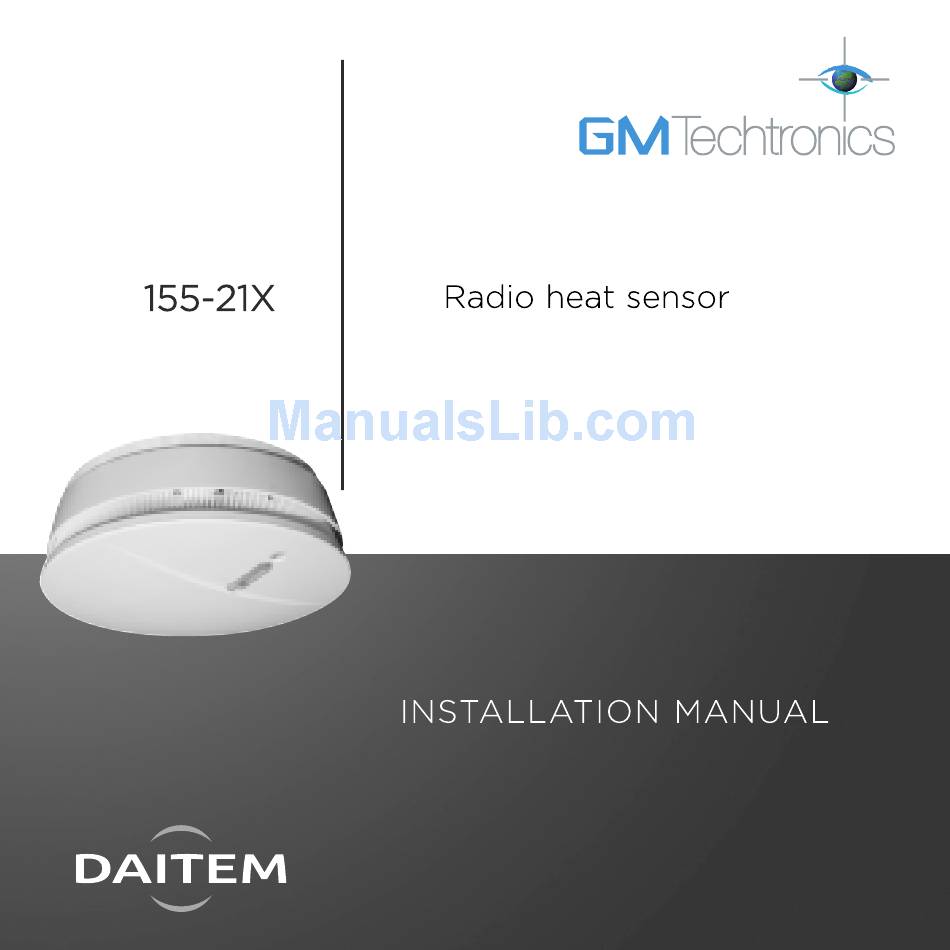

- Page 1 Upgraded for e-Nova applications...
-
Page 2: Table Of Contents
The heat detector can be: 8. Maintenance....105 • used as a stand-alone unit, 8.1 Servicing the • integrated into a Daitem alarm system, detection head..105 8.2 Changing • interconnected in a hard-wired network of up to 40 the battery ....106 detectors (heat or smoke). -
Page 3: Description
In stand-alone mode, the heat detector responds as follows during the heat detection period: When connected to a Daitem Red LeD indicating White LeD Sounding alarm system the detector detector status responds as follows when it Heat detector a safety a built-in modulated alarm the LED flashes... -
Page 4: Power Supply
2. Power supply Connect the lithium battery making sure it is the right way round. Ò The red LED flashes for 15 sec, then once every 10 sec to indicate that the detector is working normally. 3. Recognition programming iMPoRtAnt: during recognition programming, the product to be programmed for use with the control panel does not need to be placed next to it. -
Page 5: Installing The Detector
4. Installing the detector Make sure there is a distance of at least 2 m between each product, except between two detectors. 4.1 Choosing the best place iMPoRtAnt: the heat detector is not supposed to replace smoke or gas detectors to ensure the safety of people against smoke or gas, and notably in rooms such as bedrooms, playrooms and other living areas. -
Page 6: Testing The Radio
• in rooms where the relative humidity might 4.2 testing the radio range rise above 95% (without condensation), at the chosen location • close to heating, cooling or air vents. iMPoRtAnt: the control panel must be in installation mode to perform this test (see Mounting examples: Recognition programming). -
Page 7: Fixing The Detector
4.3 Fixing the detector in place Align the 2 locating arrows marked on the mounting Standard fixing method base and the detector, then 1. Install the base in the desired location, then mark the lock the unit by turning position of the 2 fixing holes (marked ) using a clockwise. -
Page 8: Installing Several
fire detectors installed in the home. iMPoRtAnt: 155-21X heat detectors can only be connected with the same type of detectors: e.g. a 155-21X can be connected with 155-21X heat detectors or 151-21X smoke detectors. You can therefore be sure of being warned if smoke is detected in a room far away from the room in which you are in. - Page 9 5. Testing the detector Although alarm sounding is reduced during a iMPoRtAnt: you can recognise this heat manual test of a heat detector, it is advisable detector by the white slots in the detection to inform neighbours beforehand and to use head.
- Page 10 As soon as the test button is pressed for more than 10 sec, and when connected to a Daitem alarm system, the detector causes the following: • triggering of the control panel and security system sirens in fire sounding mode for 5 minutes, •...
- Page 11 6. Manually disabling the detector It is possible to disable the detector for a 15 min period: iMPoRtAnt: during the • prior to activities likely to generate abnormal heat (fast rise in 15 min disable period, the temperature or increase in room temperature above 54°C, detector will not detect any e.g.
- Page 12 7. Indications..alerts When your alarm system is disarmed, the control panel will report the problem with the voice message “beep, date, time, fire alarm, detector n° X”..faults iMPoRtAnt: in order not to wake you up, audible alarms resulting from power problems or technical problems are shut down during the night.
- Page 13 technical fault Red LeD indicating White LeD Sounding detector status Heat detector transmitting the LED flashes 8 fast beeps the fault signal 8 times every 8 sec. every 58 sec. other hard-wired interconnected heat detectors If this fault appears, replace the heat detector. Radio fault on the control panel Following a system command, the control panel issues the following voice message: “beep, fault, radio, detector n°...
- Page 14 • the lithium battery pack must be replaced by the same type of pack with the same technical characteristics, i.e. (3.6 V - 4 Ah). • We advise you to use the DAiteM BatLi26 pack available in the catalogue in order to guarantee individual safety and equipment reliability.
- Page 15 9. Technical data technical data Wireless heat detector 155-21X Type of detection heat detector able to detect: • temperature rise speed • reaching of temperatures between 54 and 70°C (see next page) Average coverage 30 m Height of support 4.5 m max...
- Page 16 The heat detector will trigger an alarm: • if the temperature falls within the range given in the table below: (A2 class detector, response time according to EN 54-5, chapter 4.2) Minimum static response temperature 54 °C Maximum static response temperature 70 °C •...
- Page 17 10. User sheet (pull-out sheet for the user) Be prepared for a fire Summary of your detector’s responses and indications • Plan an evacuation route. • Prepare an evacuation plan normal operation for every room. Red LeD indicating • The least smoke is near the White LeD Sounding detector status...
- Page 18 Battery fault indication To prevent users from being disturbed at inconvenient times, Red LeD indicating White LeD Sounding audible indications of a battery detector status fault or technical fault can be Heat detector transmitting the LED flashes 2 fast beeps delayed for 8 hours over a the fault signal every 5 sec.
- Page 19 To obtain advice when installing your system or before returning equipment, please contact the Daitem technical support team (see telephone number at the back of the alarm system installation manual). A team of qualified technicians will tell you what to do.
