TO MINCE MEAT

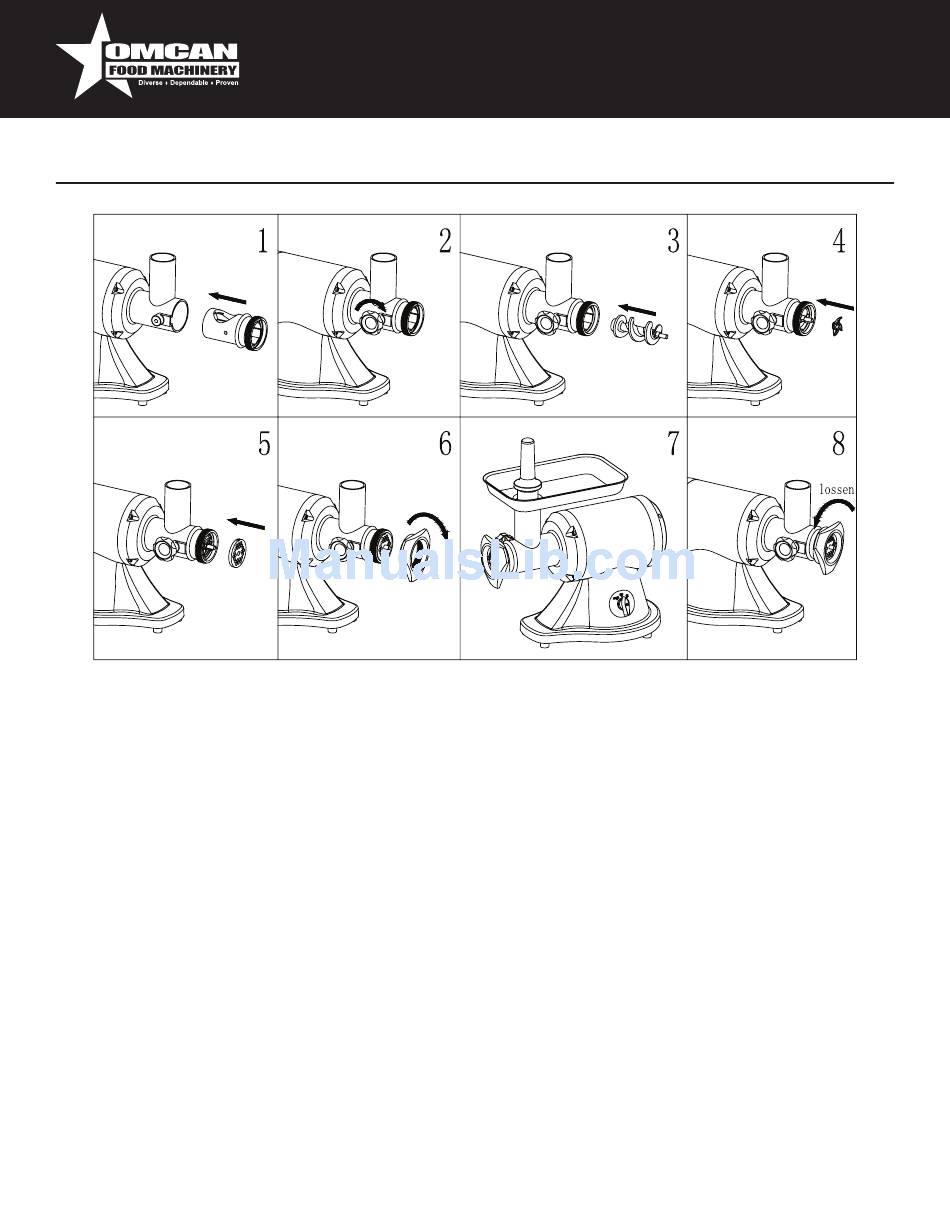

Assembling
1. Place auger tube tightly onto opening of motor housing.
2. Holding tube with one hand, tighten locking knob clockwise.
3. Place auger into the tube, long end first, by turning auger slightly until it is set into motor housing and cover
the transmission shaft.
4. Place cutting blade onto auger with the blade facing the front as illustrated.
• If it is not fitted properly, meat will not be ground.
5. Place the desired cutting plate next to cutting blade, and align the pin with the plate.
6. Screw the locking ring onto the auger tube.
7. Do not over tighten. Place hopper plate on head and fix into position.
8. Position the unit on a firm place.
• The air passage at the bottom and the side of motor housing should be kept free and not blocked.
Mincing meat
Cut all boneless meat into pieces so that they fit easily into hopper opening. Plug in, then switch on.
9. Use the pusher to feed the meat into the grinder.
• After use, switch off and unplug.
