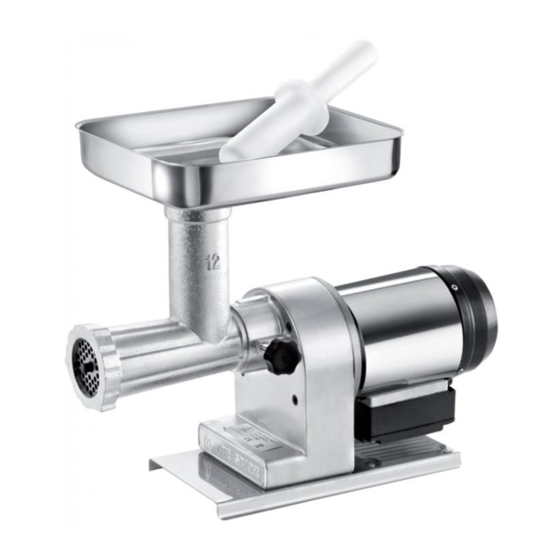

- Page 1 #12 Moderate-duty EL Meat Grinder Model MG-IT-0012 Item 41419 Instruction Manual Revised - 10/01/2020 Approved Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MG-IT-0012 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 8 Maintenance ------------------------------------------------------------------------------------- 8 - 9 Parts Breakdown... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
TAB. A. Omcan shall not be held responsible for any accidents deriving from the use, on the “ELECTRIC MEAT MINCER”, of plates with holes having a diameter of more than 8 mm. which are easily available on the market because they can be used on meat mincer operated by hand. -
Page 7: Installation
Installation • Fit in sequence in the pin with the square dragging part jutting out from the screw: the grinding blade with the cutting edge facing outside, and the perforated plate with the flat side facing the cutting edge of the blade. -
Page 8: Operation
Operation For models with switch/reversing switch: • Set the switch/reversing switch at O (stop). • Set the reversing switch at 2 position for a very short time (1 or 2 seconds) so providing to the loosening by the reverse rotation of the worm. •... -
Page 9: Maintenance
Remember that the disposal of the exhaust oil must follow the rules in force (not scattered to the environment). REFERENCE Manufacturer Model Item Number Model Number Description Number Meat Grinder #12 Cast Iron 100 RPM 41419 19100E/CSA MG-IT-0012 0.6 HP / 440 W 110V/60/1 cCSAus... -
Page 10: Parts Breakdown
Parts Breakdown Model MG-IT-0012 41419... - Page 11 Parts Breakdown Model MG-IT-0012 41419 Item No. Description Position Item No. Description Position Item No. Description Position 15241 Plunger for 19100E/CSA 19151 Large Gear for 19100E/CSA 67467 Body with Screw Ring for 19100E/CSA Small Gear 12 Teeth / 60 Teeth for...
-
Page 12: Electrical Schematics
Electrical Schematics Model MG-IT-0012 41419 White Black White (Cable Line) Black Black Terminal... -
Page 13: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 14 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
