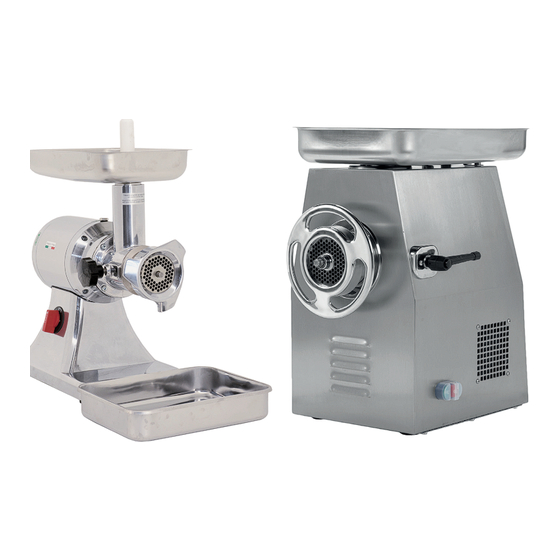

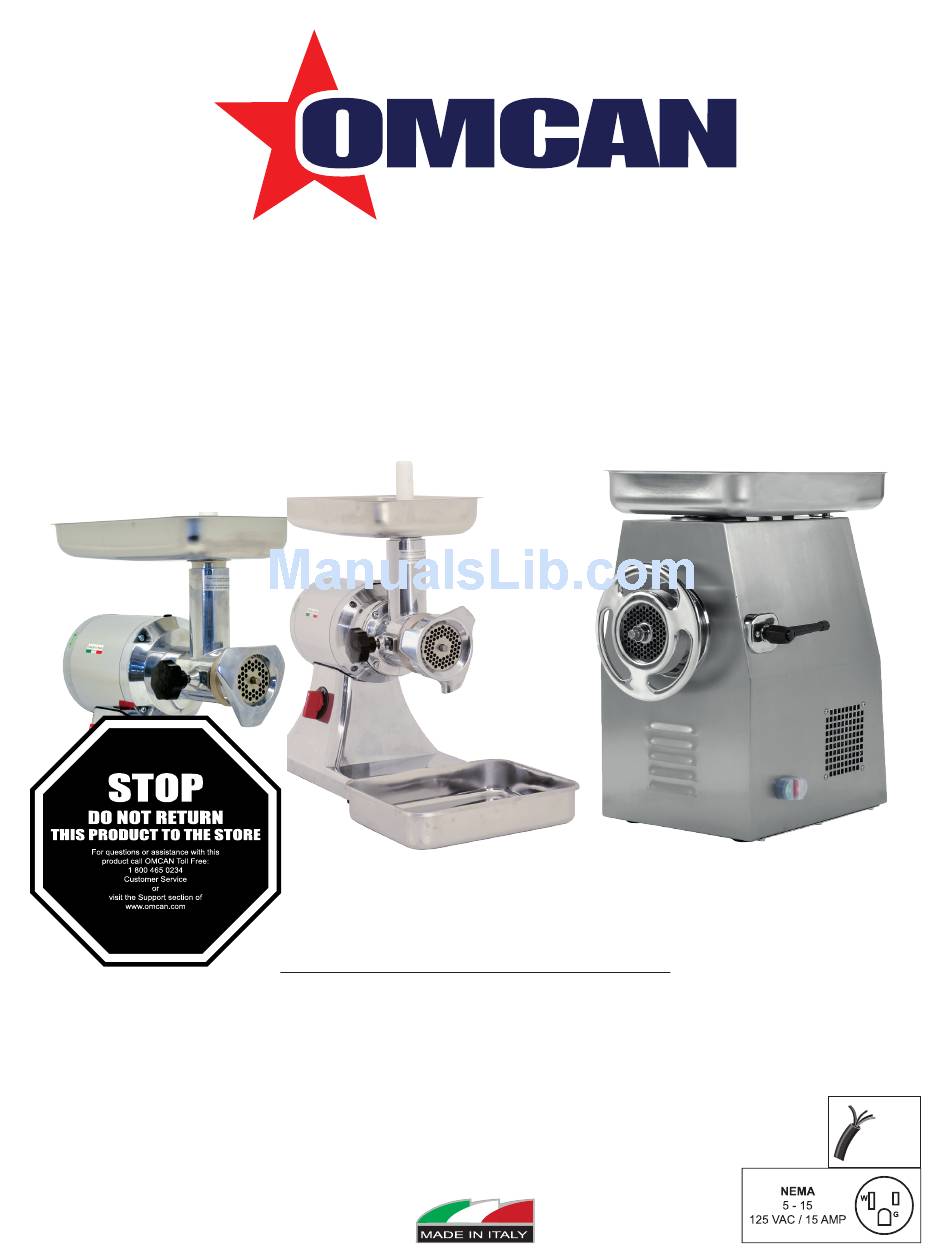

- Page 1 Meat Grinders Models MG-IT-0012-C, 0022-C, 0032-C Items 11051, 11053, *39714 Instruction Manual Revised - 10/26/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com BARE WIRE...
-
Page 2: Table Of Contents
Table of Contents Model MG-IT-0012-C / Model MG-IT-0022-C / Model MG-IT-0032-C Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation and Operation -------------------------------------------------------------------- 6 - 8 Maintenance ------------------------------------------------------------------------------------ 8 - 9... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model MG-IT-0012-C MG-IT-0022-C MG-IT-0032-C Power 745.7 W / 1 HP 1118.5 W / 1.5 HP 2237 W / 3 HP Throat Opening 2” / 51mm 2.25” / 57mm 3.9” / 98mm Electrical 110V/60/1 220V/60/1 Weight 42 lbs. / 19.1 kgs. - Page 7 Installation and Operation To assemble the grinder, do the following steps in this order: 1. Insert into the shaft (1) in order: the worm (2), the cutting knife oriented as shown in the figure (3), and the plate (4). 2. Screw down and tighten the screw (5). To disassemble, do the above in reverse order.
-
Page 8: Maintenance
For any procedures described in this section, it is necessary to remove some of the fixed protections from their positions. The removal can only be performed by an authorized Omcan technician. At the end of the maintenance procedures, these protections must be replaced and fastened in their original positions. -
Page 9: Troubleshooting
Maintenance Follow the steps as listed: FREQUENCY PERSONNEL CATEGORY SOLUTIONS At the end of Operator DISINFECTION • Use PH neutral detergents. every use and • Use demineralized water if temperatures exceed before daily use. 60°C/140°F. • If any other products are used, they must be adequate to the materials being disinfected. - Page 10 The cause could not be identified. Contact Omcan directly. The machine doesn’t function: the The electrical supply is not Check and restore the electrical worm will not rotate.
-
Page 11: Parts Breakdown
Parts Breakdown Model MG-IT-0012-C 11051... - Page 12 Parts Breakdown Model MG-IT-0012-C 11051 Item No. Description Position Item No. Description Position Item No. Description Position Key 4x4x12 for Magnification. Big for 15351 Screw 4x8 (2 pcs.) for FTS12 15391 15362 Container MIS.250x180 for FTS12 FTS12 15352 Disc Locking ABS DA 80mm. for FTS12...
- Page 13 Parts Breakdown Model MG-IT-0022-C 11053...
- Page 14 Parts Breakdown Model MG-IT-0022-C 11053 Item No. Description Position Item No. Description Position Item No. Description Position 15351 Screw 4x8 (2 pcs.) for FTS22 15458 Ring 164.5x2 for FTS22 15455 Aluminum Wheel for FTS22 15352 Disc Locking Abs DA 80mm. for FTS22 15441 Hub Cap with Housing for FTS22 15454...
- Page 15 Parts Breakdown Model MG-IT-0032-C 39714...
-
Page 16: Parts Breakdown
Parts Breakdown Model MG-IT-0032-C 39714 Item No. Description Position Item No. Description Position Item No. Description Position 70162 Pestle for TI32R 70182 Grapevine 8x20 (4 pcs.) for TI32R 70202 Wheel Steel Round for TI32R Hopper D76 “Big” Prot.Mano + Fork 70163 70183 Internal Aluminum for TI32R... -
Page 17: Electrical Schematics
Electrical Schematics Model MG-IT-0012-C 11051 Model MG-IT-0022-C 11053... -
Page 18: Electrical Schematics
Electrical Schematics Model MG-IT-0032-C 39714... -
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
