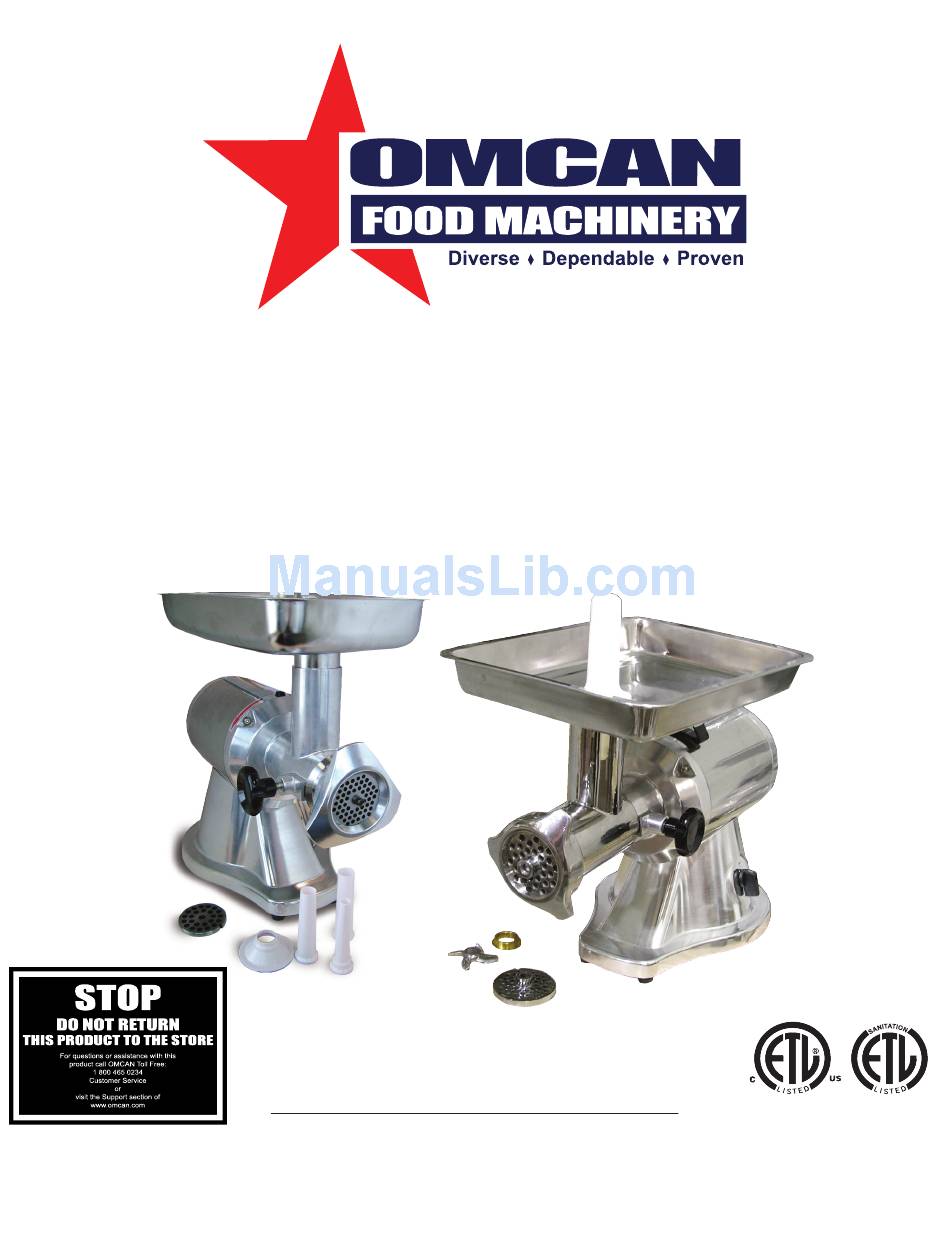

- Page 1 Meat Grinder Models FA12 - FA22 Instruction Manual Version 1 3115 Pepper Mill Court, Mississauga, ON, L5L 4X5 1-800-465-0234 1889 Maryland Avenue, Niagara Falls, NY, 14305 www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FA12 / Model FA22 Section Page General Information -------------------------------------------------------------------------------- 3 Safety -------------------------------------------------------------------------------------------------- 3 Technical Information ------------------------------------------------------------------------------ 4 Assembly and Operation --------------------------------------------------------------------- 5 - 6 Maintenance ----------------------------------------------------------------------------------------- 6 Parts Breakdowns ---------------------------------------------------------------------------- 7 - 10 Electrical Schematics ---------------------------------------------------------------------------- 11... -
Page 3: General Information
General Information Omcan Manufacturing and Distributing Company Inc. and Food Machinery Of America, Inc. dba Omcan are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. -
Page 4: Technical Information
Technical Information PARTS IDENTIFICATION Switch. Locking knob. Motor housing. Opening. Food pusher. Hopper plate. Head. Feed screw. Cutting blade. Cutting plate (coarse). Cutting plate (medium). Screw Cap. Circuit breaker. Stuffer tubes BEFORE USE Make sure that the voltage and frequency indicated on the rated plate are the same as your local supply, and that the mains are properly ground. -
Page 5: Assembly And Operation
Assembly and Operation TO MINCE MEAT Assembling 1. Place auger tube tightly onto opening of motor housing. 2. Holding tube with one hand, tighten locking knob clockwise. 3. Place auger into the tube, long end first, by turning auger slightly until it is set into motor housing and cover the transmission shaft. 4. Place cutting blade onto auger with the blade facing the front as illustrated. • If it is not fitted properly, meat will not be ground. -
Page 6: Maintenance
Assembly and Operation NOTE: If the minced meat is not discharged smoothly or in the form of paste, the causes and remedies could be: • Screw cap is tightened too much thus, the cutting blade does not contact properly with the cutting plate. Readjust it. -
Page 7: Parts Breakdowns
Parts Breakdown Model FA12 21720... - Page 8 Parts Breakdown Model FA12 21720 Description Position Description Position Description Position Gear box assembly FP0 wire presser Big bevel gear Screw (with washer) M4*12 Turn switch Pin 3×12 CJ2 padding block Sunken screw M4*10 Warding ring 40 Initiation capacitor 75uf 250VAC...
- Page 9 Parts Breakdown Model FA22 21634...
-
Page 10: Parts Breakdowns
Parts Breakdown Model FA22 21634 Description Position Description Position Description Position Screw cap Sunk self tapping screw PT4×8 Bolt M4×12 Cutting plate 5 Bolt M4×16 Feed screw assembly Cutting plate 8 Switch keysets Feed screw terminal Cutting blade Switch Feed screw Anti friction and air proof Hopper plate Base seat... -
Page 11: Electrical Schematics
Electrical Schematics Model FA12 21720 Model FA22 21634... -
Page 13: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: www.omcan.com/warrantyregistration.html For mailing in Canada For mailing in the US OMCAN INC. OMCAN PRODUCT WARRANTY REGISTRATION... - Page 16 Over the last 60 years, Omcan has grown to become a leading supplier to the food service industry in Canada and the USA. Our success over these many years is directly attributed to our established relationships with all of our valued customers and through providing them with Diverse, Dependable and Proven products.
