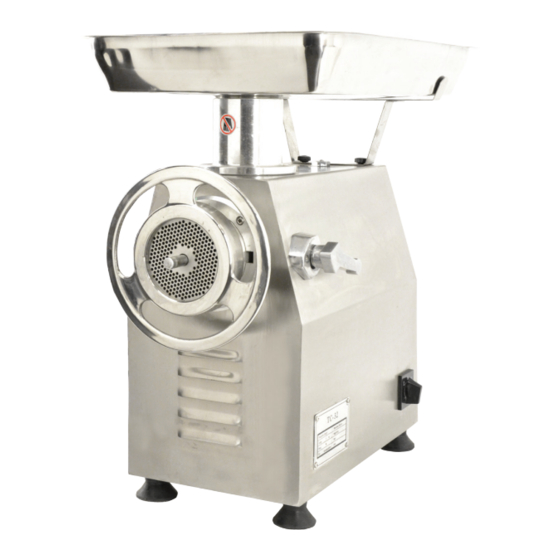

- Page 1 Meat Grinders Models MG-CN-0032-M Items 43628 Instruction Manual Revised - 04/15/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model MG-CN-0032-M Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation and Operation -------------------------------------------------------------------- 6 - 8 Maintenance ------------------------------------------------------------------------------------- 8 - 9 Troubleshooting ------------------------------------------------------------------------------- 9 - 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model MG-CN-0032-M Microswitch Head Size Throat Opening 2.75” / 70mm Hopper Size 19.75” x 14” x 2.75” / 502 x 356 x 70mm Electrical 110V / 60 / 1 Weight 134 lbs. / 61 kgs. Dimensions 21.75” x 22” x 14” / 552 x 559 x 356mm... - Page 7 Installation and Operation position, and the plug disconnected from the socket. To assemble the grinder, do the following steps in this order: 1. Insert into the shaft (1) in order: the worm (2), the cutting knife oriented as shown in the figure (3), and the plate (4). 2.
-
Page 8: Maintenance
For any procedures described in this section, it is necessary to remove some of the fixed protections from their positions. The removal can only be performed by an authorized Omcan technician. At the end of the maintenance procedures, these protections must be replaced and fastened in their original positions. -
Page 9: Troubleshooting
Maintenance Follow the steps as listed: FREQUENCY PERSONNEL CATEGORY SOLUTIONS At the end of Operator DISINFECTION Use PH neutral detergents. every use and Use demineralized water if temperatures exceed before daily use. 60°C/140°F. If any other products are used, they must be adequate to the materials being disinfected. - Page 10 The cause could not be identified. Contact Omcan directly. The machine doesn’t function: the The electrical supply is not Check and restore the electrical worm will not rotate.
-
Page 11: Parts Breakdown
Parts Breakdown Model MG-CN-0032-M 43628... - Page 12 Parts Breakdown Model MG-CN-0032-M 43628 Item No. Description Position Item No. Description Position Item No. Description Position 79839 Motor for BR006-2 79858 M8 Spring Washer for BR006-2 79877 Meat Tray for BR006-2 79840 Fan of Motor for BR006-2 79859 M8x35 Bolt for BR006-2...
-
Page 13: Electrical Schematics
Electrical Schematics Model MG-CN-0032-M 43628... -
Page 14: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
