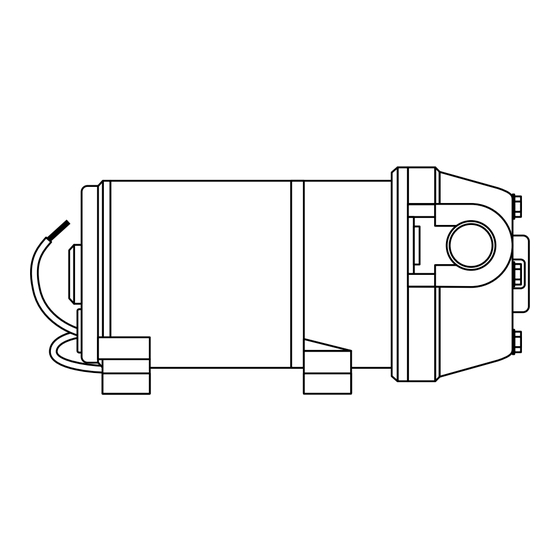

FLOJET 4105-501 Manual

FEATURES
• Self-Priming
• Dry Running
• Soft, Noise Absorbing Mounts
• Corrosion Resistant Materials
• Meet U.S.C.G. Electric Standards
• 3.3 GPM Model for 15-30 gal. tanks
• 5.0 GPM Model for 30-50 gal. tanks with Thermal
Overload Protection
SPECIFICATIONS
Motor: Permanent Magnet, Ball Bearings on both
Front and Rear Endbells. CE Models are fully
suppressed.
Pump: Four chamber diaphragm positive displace-
ment design; Self-priming up to 6 ft. suction
lift; Pump able to run dry without damage;
Removable port to hose connectors.
MODEL*
4105-501
4105-503
4125-502
4125-504
* CE fully suppressed models are identified by a prefix "R" and a CE mark on the label. (i.e. R4105-501).
Self Declaration Of Conformance (SDOC) is available upon request.
OPERATION
Your "Quad II" bait tank pump is designed to selfprime
up to 6 feet suction lift and fill your tank in 8-12 minutes.
This allows 5 to 6 water changes per hour. If pump fills
tank in less than 8 minutes, divert excess water by
installing a T or Y valve. Reduce turbulence by adding
additional inlet at waterline or drill out multiple stand
pipe holes so water does not spurt out of holes. Your
lively bait need calm, fresh water.
This pump is quiet running. It is recommended you
utilize a "lighted" on-off switch so that the pump is
turned off when not in use. The "Quad II" is able to run
VOLTS @ 10 psi (0.7 bar)
12V dc
24V dc
12V dc
24V dc
Models4105 & 4125 Series
Bait Tank, Diesel Transfer and
3.5 3.44
(90) (87)
3.25
(82)
Pump Series
4105-XXX
4125-XXX
AMP DRAW
3.6
1.8
8.5
3.6
dry (no liquid) for extended periods with no damage to
the pump. However, this could cause needless battery
drain.
For general purpose or diesel transfer, plug in your
choice of ports and lock in with slide clips. Attach hoses
and wiring.
For portable use we recommend the pump be attached
to a base (ie. 3/4" x 8" x 10" board or plywood), add a
toggle switch, a length of two conductor cable with
alligator clips for battery connection.
"Quad II Diaphragm"
General Purpose Pump

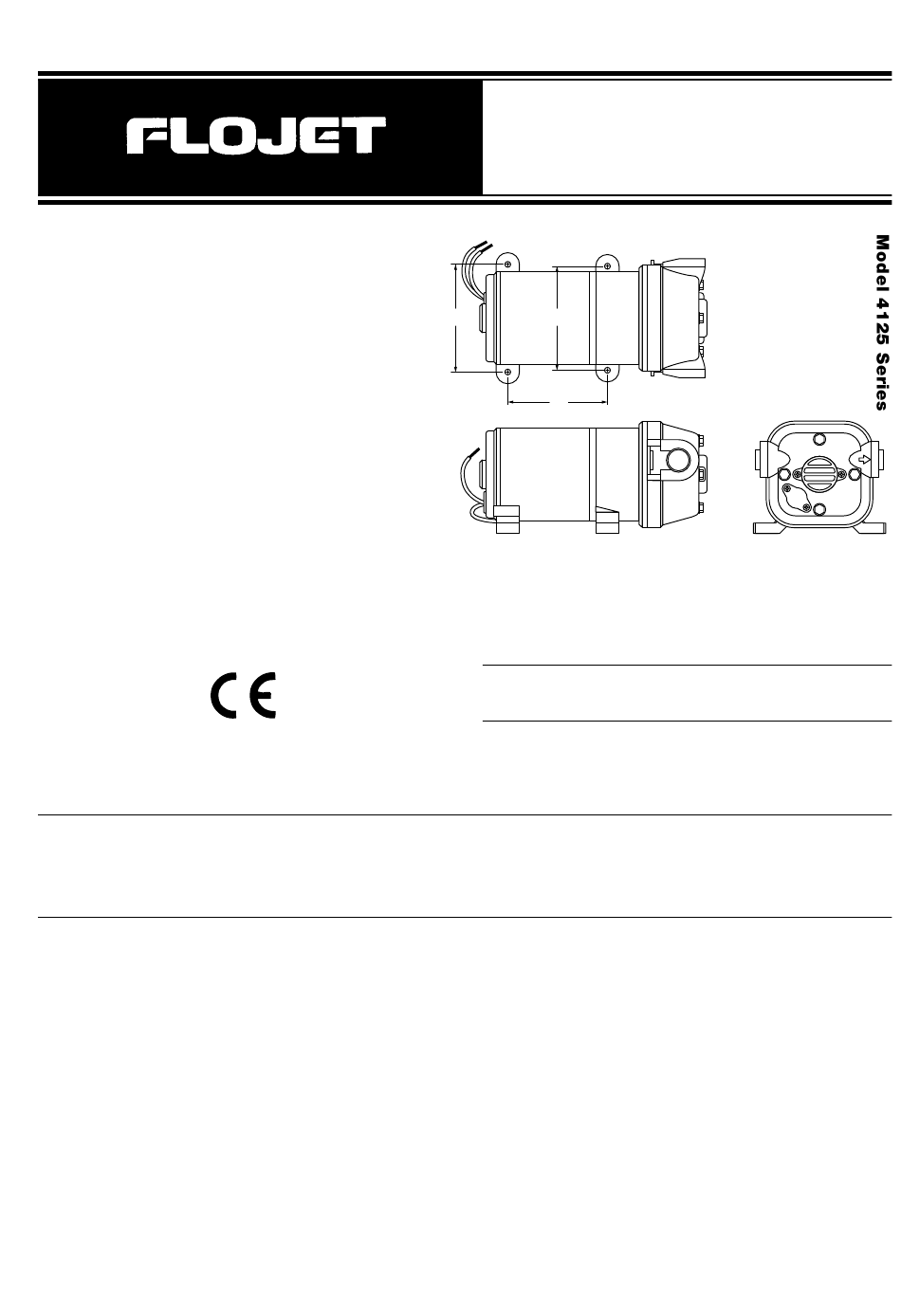

Dimensions - Inches (mm)
Height Width
3.75 (95) 6.3 (160) 8.2 (208) 3.9 (1.8)
3.75 (95) 6.3 (160) 9.9 (252) 6.0 (2.8)
FLOW
GPM (l/min)
3.3 (12.5)
3.3 (12.5)
5.0 (18.9)
5.0 (18.9)
Weight
Length lb. (kg)
STRAINERS
INCLUDED
Yes
Yes
Yes
Yes
