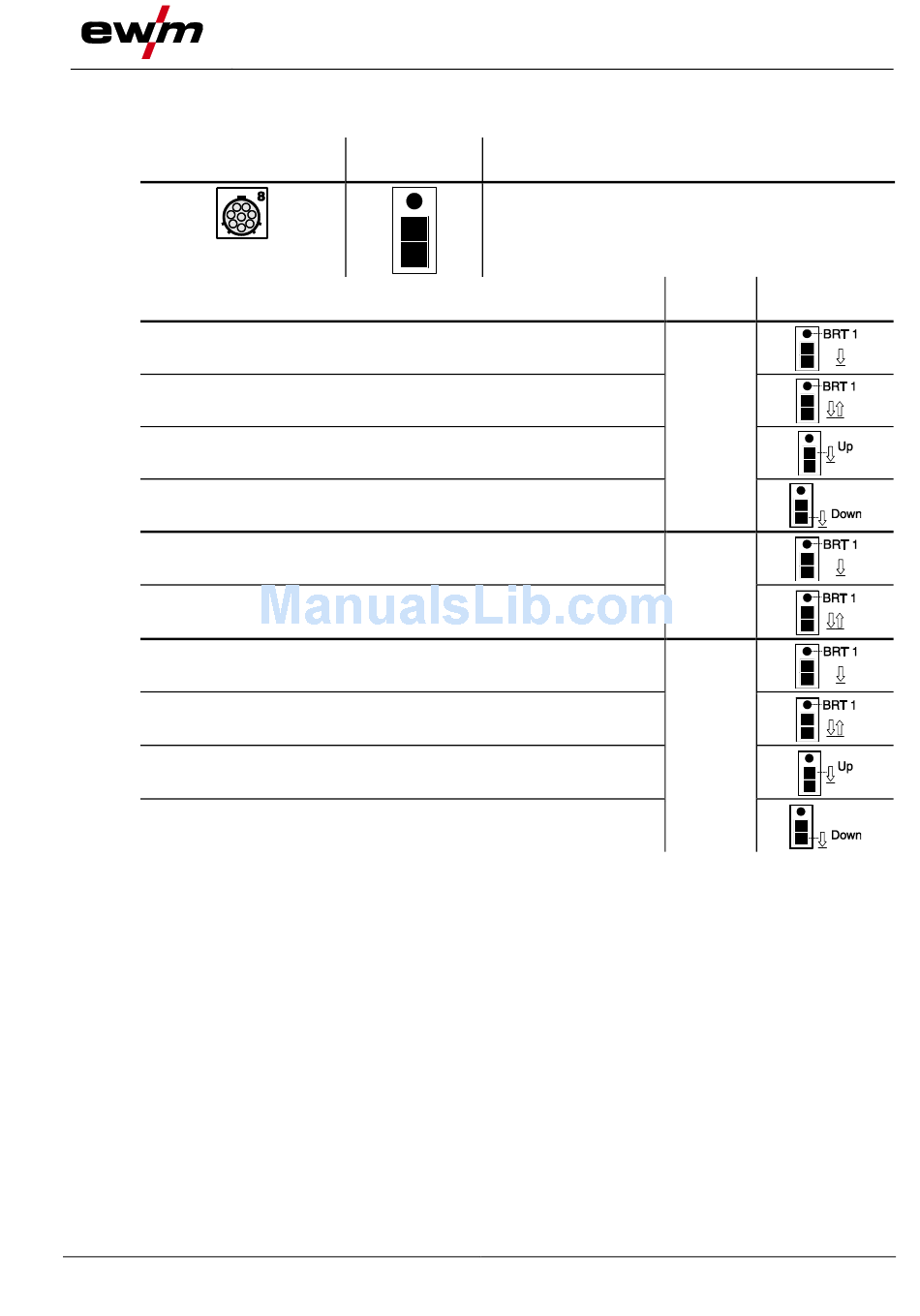

4.1.12.2 TIG up/down torch (8-pole)

Up/down torch with one torch trigger
Diagram
Functions
Welding current on/off
Secondary current (tapping mode) / (latched mode)
Increase welding current, infinite adjustment (up function)
Reduce welding current, infinite adjustment (down function)
Welding current on/off
Secondary current (tapping mode)
Welding current on/off
Secondary current (tapping mode) / (Latched mode)
Increase welding current by an increment *
Reduce welding current by an increment *
099-00T400-EW501
21.10.2016
Operating Explanation of symbols
elements
TT 1 = torch trigger 1
Welding procedure
TIG welding
Mode Operating
elements
1
(factory-
set)
2
4
41
