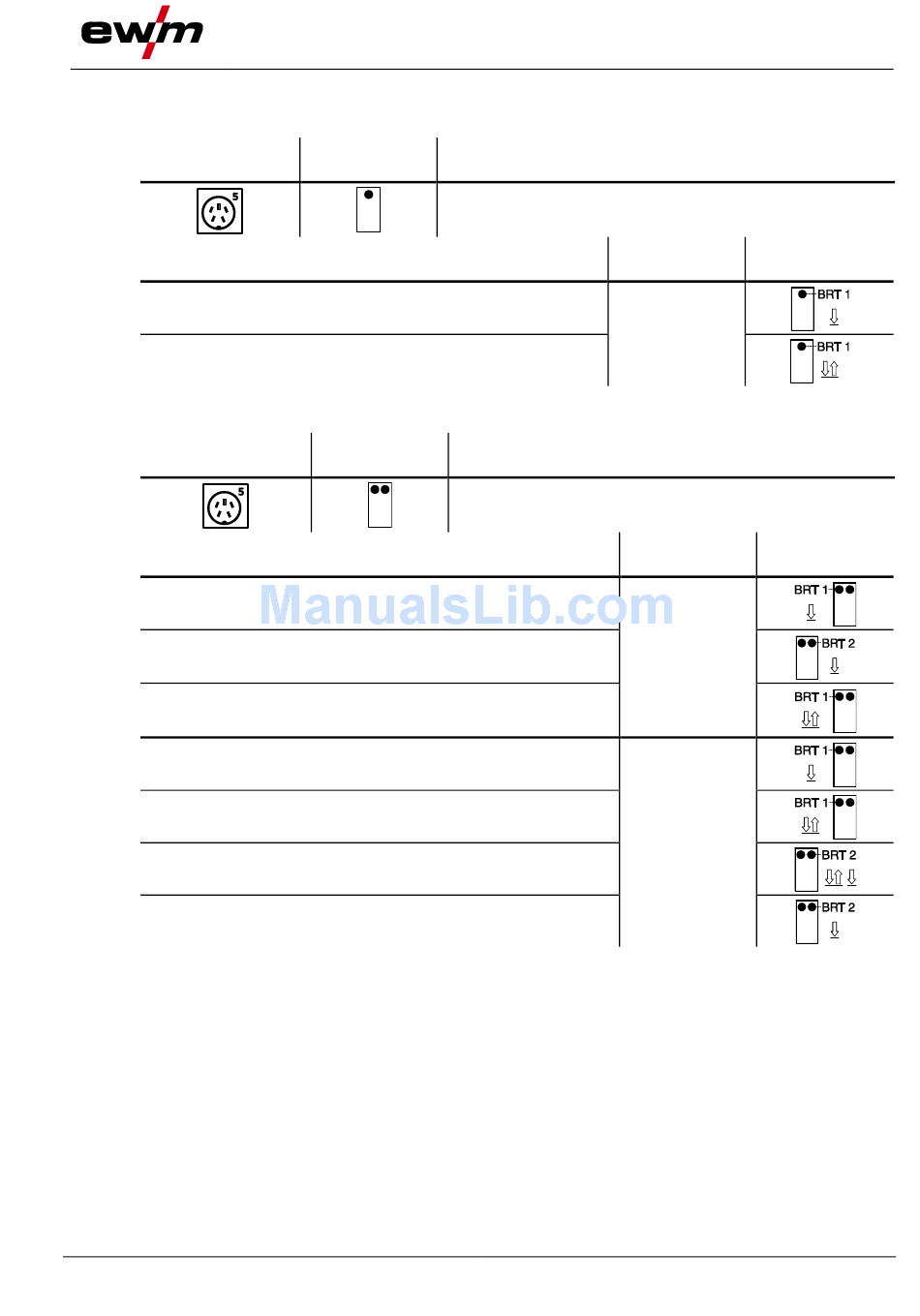

4.1.12.1 Standard TIG torch (5-pole)

Standard torch with one torch trigger:
Diagram
Functions
Welding current On/Off
Secondary current (Latched mode)
Standard torch with two torch triggers:
Diagram
Functions
Welding current On/Off
Secondary current
Secondary current (tapping mode) / (latched mode)
Welding current On/Off
Secondary current (tapping mode) / (latched mode)
Up function
Down function
099-00T400-EW501
21.10.2016
Operating Explanation of symbols
elements
BRT1 = Torch trigger 1 (welding current on/off; secondary
current via tapping function)
Operating Explanation of symbols
elements
BRT1 = torch trigger 1
BRT2 = torch trigger 2
Welding procedure
mode Operating
elements
1
(factory-set)
mode Operating
elements
1
(factory-set)
3
