How to Set Up Your SRX1500 Services Gateway
The SRX1500 Services Gateway is a next generation secure connectivity services
gateway for the cloud-enabled distributed enterprise edge and small to medium
data centers. Its advanced security and threat mitigation capabilities makes the
SRX1500 Services Gateway ideal for small to medium enterprises.

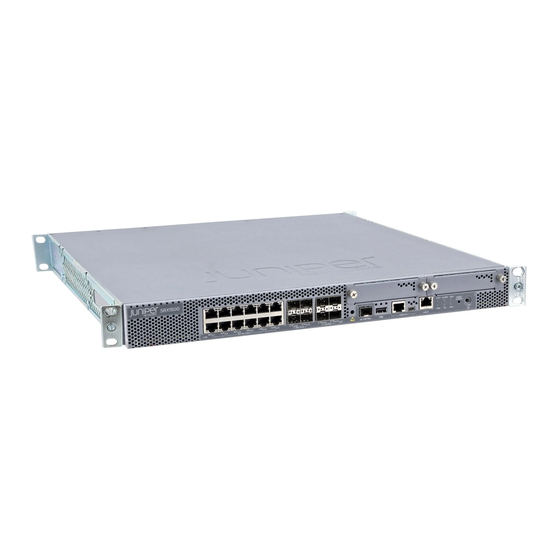

The SRX1500 Services Gateway has a modular 1-U chassis with twelve 1-Gigabit
Ethernet ports, four 1-Gigabit Ethernet SFP ports, four 10-Gigabit Ethernet SFP +
ports, and a 120 GB SSD (with 100 GB usable space). The SRX1500 Services
Gateway is available in both AC and DC models.

Package Contents

SRX1500
AC or DC power supply
• End User License Agreement
• Safety Guide
• Quick Start Guide
Mounting brackets
AC power cable Screws
USB cable
RJ-45 cable
Warranty and Registration DB-9 adapter
Information

Front Panel

1G 10G
Ethernet SFP+
ports ports
Air inlet 1G
SFP
ports

Back Panel

Grounding point
Fans
NOTE: The SRX1500 Services Gateway shipment package contains a
packing list. Check the parts in the shipment against the items on the
packing list. If anything is missing or damaged, contact your Juniper
Networks customer service representative.
Specification
Dimensions (H x W x D)
Chassis weight
Average power consumption
Maximum thermal output
Relative humidity
Noise level
HA Serial WAN Reset
Control Console MGMT PIM Config
port port port slots button
ESD USB Mini-USB LEDs Power
point port Console button
port
Power supply slots
Value
1.75 in. x 17.5 in. x 18.2 in.
(4.45 cm x 44.45 cm x 46.23 cm)
15 lb. (6.8 kg)
150 W
300 BTU/hour
5% to 90%, noncondensing
66.5 dBA
