SRX110 Services Gateway Quick Start
Use the instructions in this quick start to help you connect the SRX110 Services Gateway
to your network. For details, see the SRX110 Services Gateway Hardware Guide at
http://www.juniper.net/techpubs/a063.html.

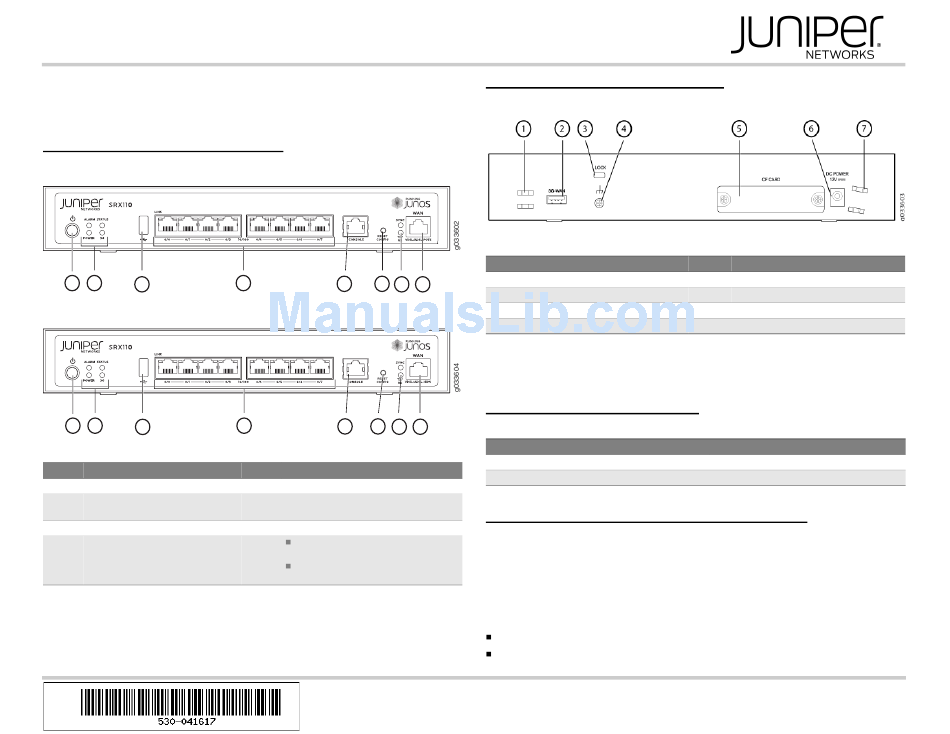

SRX110 Services Gateway Front Panel
SRX110 Services Gateway (SRX110H-VA) Front Panel
1 2
3
SRX110 Services Gateway (SRX110H-VB) Front Panel
1 2
3
Callout Description
1 Power button
2 LEDs: Alarm, Status, Power, and
3G
3 Universal Serial Bus (USB) port
4 Fast Ethernet ports
4 5 6
7
4
5 6 7 8
Callout Description
5 Console port
6 Reset Config button
7 LEDs: SYNC and TX/RX
8 For
SRX110H-VA—VDSL/ADSL-POTS
For
SRX110H-VB—VDSL/ADSL-ISDN
SRX110 Services Gateway Back Panel
SRX110 Services Gateway (SRX110H-VA, SRX110H-VB) Back Panel
Callout Description
1 Cable tie holder
8
2 3G-WAN (USB port)
3 Lock
4 Grounding point
NOTE: If you experience a problem with the CompactFlash card, you must return the
services gateway for repair or replacement. To do this, contact Juniper Networks
Technical Assistance Center (JTAC).
SRX110 Services Gateway Models
The following models of SRX110 Services Gateways are available:
Device
SRX110H-VA (VDSL/ADSL-POTS)
SRX110H-VB (VDSL/ADSL-ISDN)
Connecting and Configuring the SRX Series Device
Use the instructions below to connect and set up the services gateway to protect your
network. Refer to the LEDs on the front of the device to help you determine the status of
the device.
Overview
The services gateway is a security device that requires these basic configuration settings
to function:
Interfaces must be assigned IP addresses.
Interfaces must be bound to zones.
Callout Description
5 CompactFlash card
6 Power supply point
7 Cable tie holder
DDR Memory
1 GB
1 GB
