Transition Networks

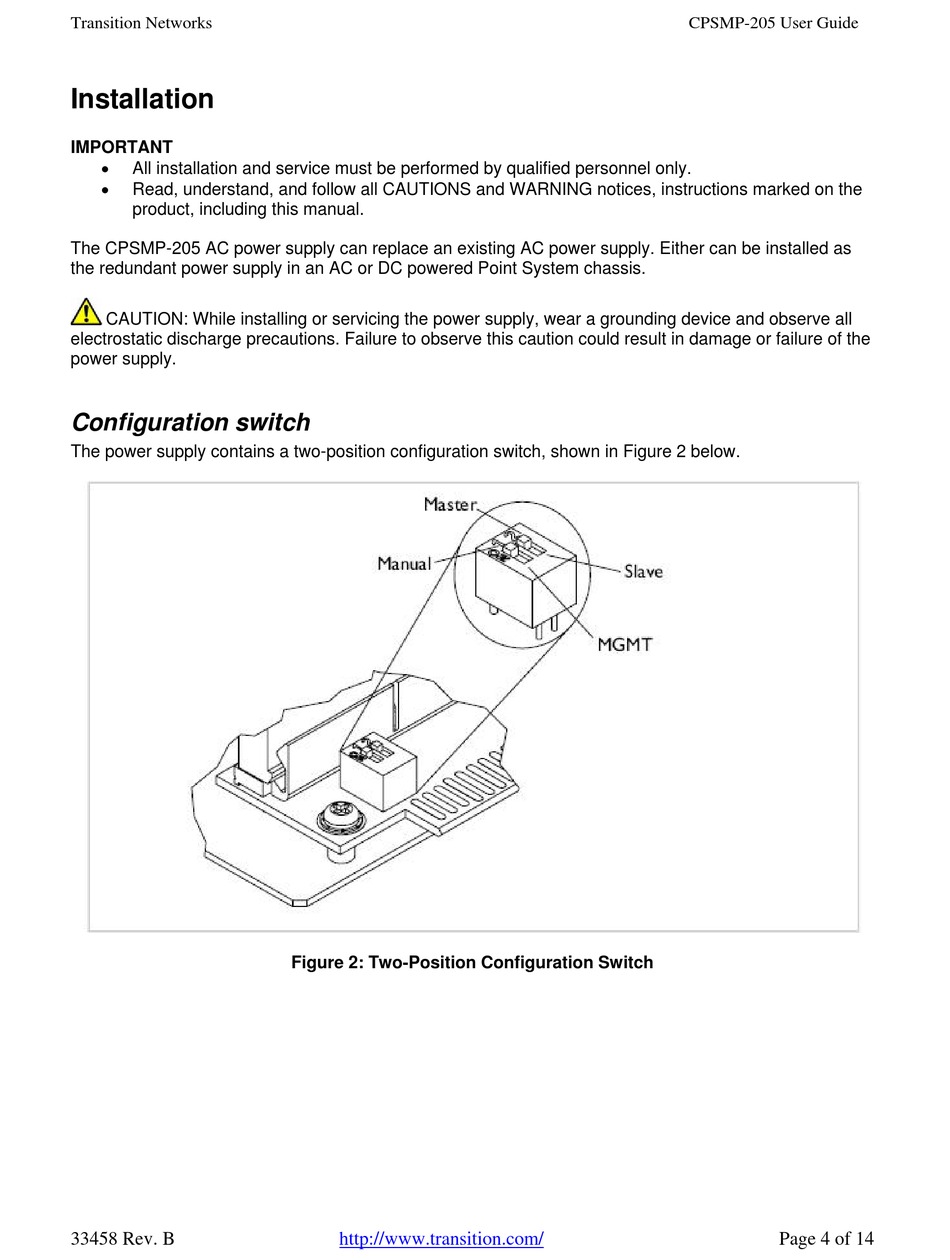

Installation
IMPORTANT
All installation and service must be performed by qualified personnel only.
Read, understand, and follow all CAUTIONS and WARNING notices, instructions marked on the
product, including this manual.
The CPSMP-205 AC power supply can replace an existing AC power supply. Either can be installed as
the redundant power supply in an AC or DC powered Point System chassis.
CAUTION: While installing or servicing the power supply, wear a grounding device and observe all
electrostatic discharge precautions. Failure to observe this caution could result in damage or failure of the
power supply.
Configuration switch
The power supply contains a two-position configuration switch, shown in Figure 2 below.
33458 Rev. B
Figure 2: Two-Position Configuration Switch
http://www.transition.com/
CPSMP-205 User Guide
Page 4 of 14
