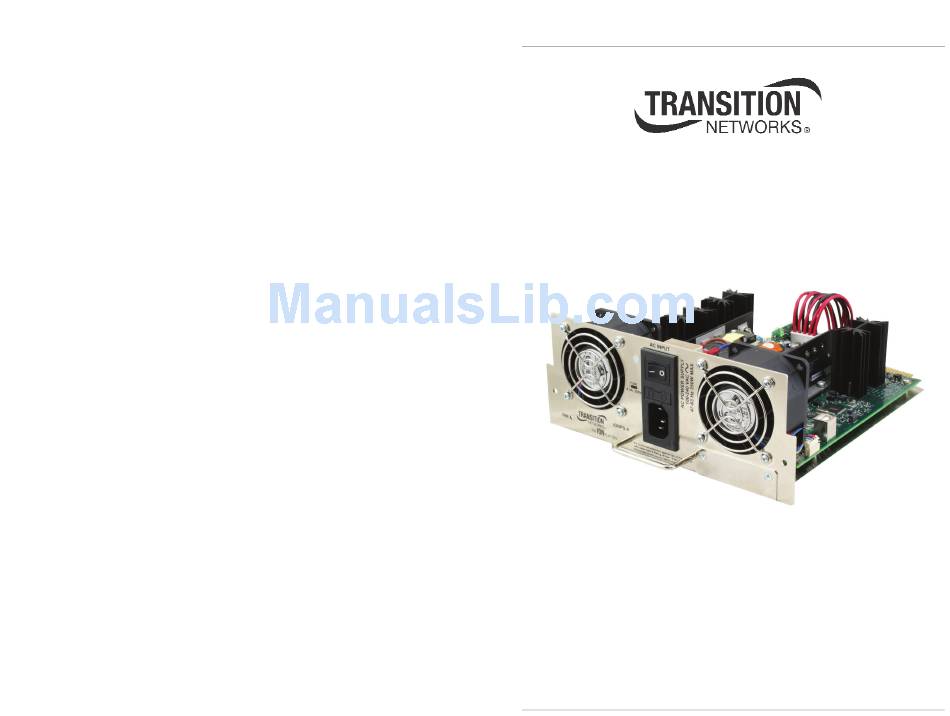

  • Page 1 IONPS-A AC Power Module User Manual 33423.A...

  • Page 2: Table Of Contents

    IONPS-A, AC Power Module Table of contents Cautions and Warnings Cautions and Warnings ....... . .3 Definitions Definitions .

  • Page 3: Description

    See Figure 1: manual at www.transition.com under Products. Fans (two fans exhaust warm air from the IONPS-A, AC Power Module) Installation Power LED (ON green when powered up) ON/OFF switch, when in the ON position power is supplied to the ION chassis...

  • Page 4: Installing An Optional Power Module Into The Ion Chassis

    IONPS-A, AC Power Module Installation — Continued Installation — Continued Installing an optional Power Module into the ION chassis Installing an optional Power Module into the ION chassis — continued WARNING: Do not connect the Power Module to an external power source before 2.
  • Page 5 6. Insert the two screws to mount the Power Module to the chassis. Connecting the Power Module to external power To connect external power to the IONPS-A, AC Power Module, do the following: 1. Locate the power cord for the Power Module.

  • Page 6: Maintenance

    IONPS-A, AC Power Module Maintenance Maintenance — Continued Installing the Power Module — continued Replacing the Power Module 6. Locate the new Power Module. WARNING: Do not connect the Power Module to the external power source before 7. Push the power ON/OFF switch to the OFF position.

  • Page 7: Replacing The Fuse

    8.3" x 8.4" x 2.7" (211 mm x 211 mm x 69 mm) CAUTION: Ensure that the IONPS-A, AC Power Module has been disconnected from the external power source and the ON/OFF switch is at “0.” Failure to observe this Weight: 4 lb.

  • Page 8: Troubleshooting

    10900 Red Circle Drive, Minnetoka, MN 55343 U.S.A. Model: IONPS-A, AC Power Module 120/240 VAC Purpose: To declare that the IONPS-A, AC Power Module to which this declaration refers is in compliance with the following directive(s) and standard(s): EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A;...

  • Page 9: Compliance Information

    © 2009 – 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. Printed in the U.S.A.
