Description

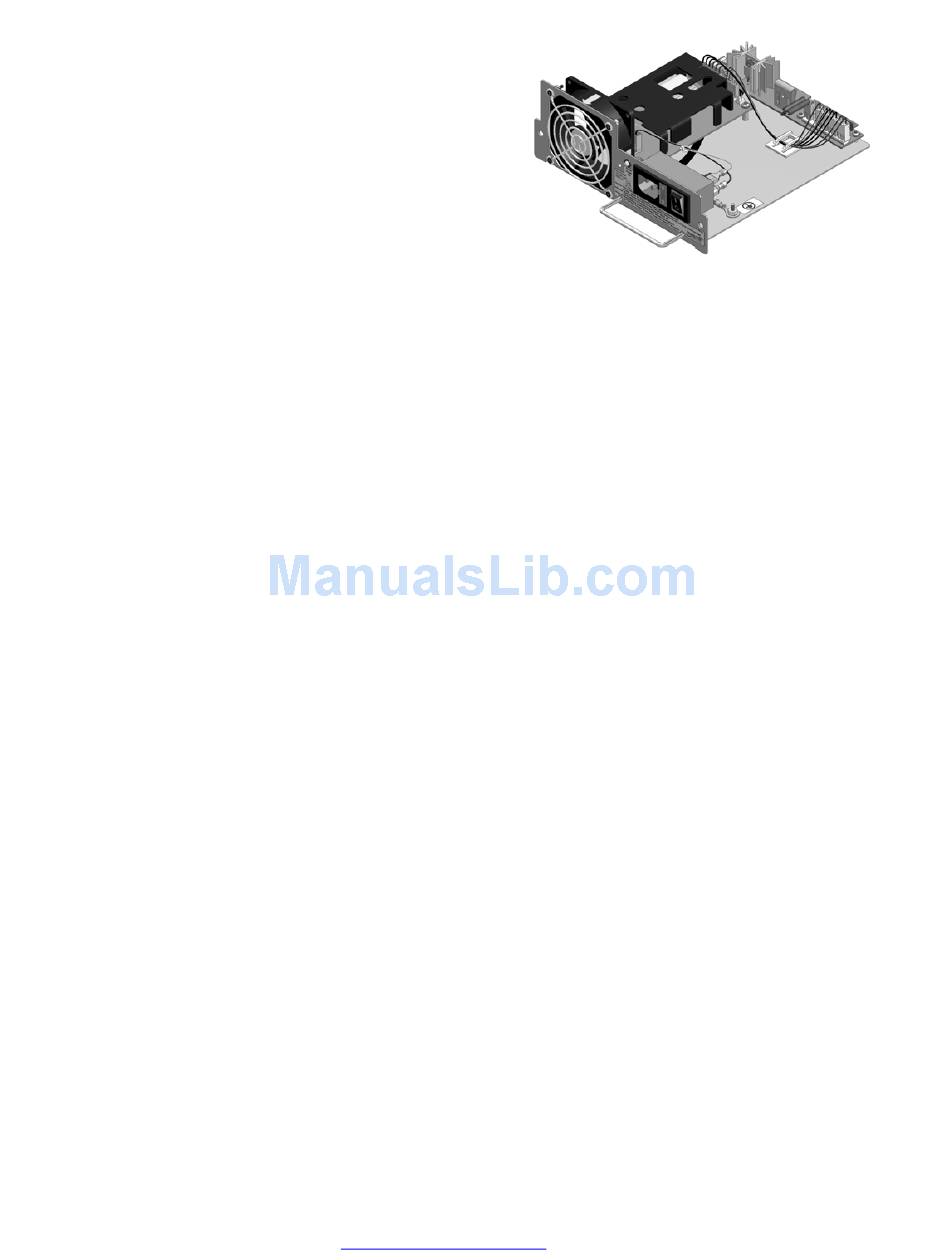

Transition Networks' CPSMP-205 AC power supply can deliver power or provide optional, redundant AC
power to the CPSMC1800-200 and the CPSMC1900-100 PointSystem chassis.
33458 Rev. B
http://www.transition.com/
Page 1 of 14
Advertisement
Table of Contents
Related Manuals for Transition Networks CPSMP-205
Summary of Contents for Transition Networks CPSMP-205
-
Page 1: Table Of Contents
Compliance Information ..........................13 Declaration of Conformity ........................13 Record of Revisions..........................14 Description Transition Networks’ CPSMP-205 AC power supply can deliver power or provide optional, redundant AC power to the CPSMC1800-200 and the CPSMC1900-100 PointSystem chassis. 33458 Rev. B http://www.transition.com/... -
Page 2: Cautions And Warnings
Transition Networks CPSMP-205 User Guide Cautions and Warnings Definitions CAUTIONS indicate potential damage to equipment. Warnings indicate potential hazard or injury to people. Cautions and warnings in this manual Cautions and Warnings are explained here and placed throughout this manual where appropriate. -
Page 3: Power Supply Component Identification
Notices The CPSMP-205 AC power supply must be installed by qualified technical personnel only. Transition Networks assumes no responsibility for the improper installation, set up, or use of this power supply. The information in this user’s guide is subject to change. For the most up-to-date information, see this same user’s guide online at www.transition.com. -
Page 4: Installation
Read, understand, and follow all CAUTIONS and WARNING notices, instructions marked on the product, including this manual. The CPSMP-205 AC power supply can replace an existing AC power supply. Either can be installed as the redundant power supply in an AC or DC powered Point System chassis. -
Page 5: Configuring Two Power Supplies In One Chassis
Transition Networks CPSMP-205 User Guide Two-position configuration switch explanation The two-position configuration switch establishes PointSystem software or manual control of the power supply. When the configuration switch is in the management position, the power supply configuration can be set to master or slave via software. -
Page 6: Installing An Optional Power Supply Into The Chassis
Transition Networks CPSMP-205 User Guide Installing an optional power supply into the chassis WARNING: Do not connect the power supply to an external power source before installing it into the chassis. Failure to observe this warning could result in an electrical shock, even death. - Page 7 Transition Networks CPSMP-205 User Guide 3. Set the configuration switch (master/slave/management/manual), if necessary. See Figure 6 below. Figure 6: Two-Position Configuration Switch 4. Position the power supply at the chassis slot. See Figure 7 below. Figure 7: Power Supply Installation 5.
-
Page 8: Connecting Power Supply To External Power
5. Verify that the CPSMP-205 power supply module is powered ON by observing fan rotation and the illuminated power LED. Figure 8: Connecting Power Note: The CPSMP-205 AC power supply can be used to replace or as a redundant power supply for the following: ... -
Page 9: Maintenance
Failure to observe this caution could result in equipment damage, personal injury or death. Note: The CPSMP-205 power supply module may be “hot swapped” (i.e., replaced while the chassis is in operation) provided the module to be replaced has been disconnected from its external power source and the ON/OFF switch set to “... - Page 10 Transition Networks CPSMP-205 User Guide Figure 10: Power Supply Installation 6. Ensure that the power supply module is firmly seated inside the chassis. 7. Carefully insert the two (2) retained screws through the power supply module into the chassis and tighten them.
-
Page 11: Replacing The Fuse
Failure to observe this caution could result in damage to, or failure of the power supply module. Note: The CPSMP-205 power supply module may be “hot swapped” (i.e., serviced while the chassis is in operation) provided the module to be serviced has been disconnected from its external power supply and the module’s ON/OFF switch has been set to “... -
Page 12: Technical Specifications
If the power supply module fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the Power ON LED on the CPSMP-205 module lit? Is the power supply module inserted properly into the chassis? ... -
Page 13: Contact Us
Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training. -
Page 14: Record Of Revisions
Copyright restrictions © 2003-2012 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic or mechanical) without written permission from Transition Networks. 33458 Rev. B http://www.transition.com/...
