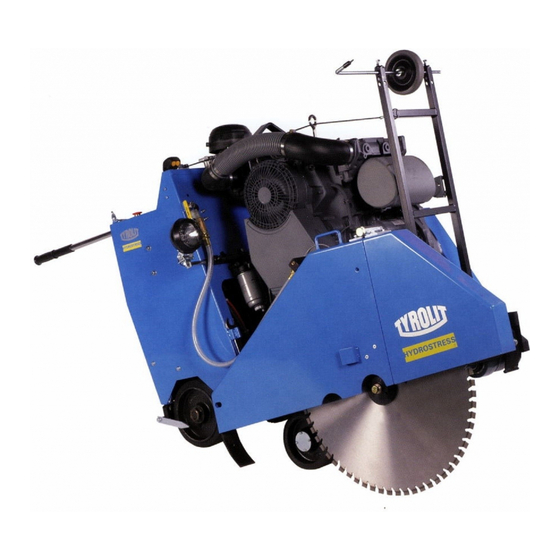

- Page 1 Operating Instructions Floor Saw FSD930 Index 001 109877482 en / 07.11.2008...
- Page 2 Any repair work must be carried out by trained personnel only. Should you need more details concerning your TYROLIT Hydrostress unit in order to keep it in perfect condition, please contact our after-sales service for further information.
- Page 3 Failure to comply with the safety instructions in the "Safety Manual / System Description" may result in serious injury or death. ► Please ensure that the "Safety Manual / System Description for Floor saws" has been read and understood in full. Floor Saw FSD930 Page 3...
- Page 4 Blade guard 10 Rear cut guide Main motor Saw blade 11 Water feed Front cut guide Rocker wheel 2.1 Saw blade drive Saw blade drive (schematic) Blade drive shaft Drive belt Main motor drive shaft Page 4 Floor Saw FSD930...
- Page 5 TYROLIT Hydrostress AG 2.2 Lift drive Lift drive (schematic) Hydraulic cylinder 2.3 Travel drive Travel drive (schematic) Drive shaft (main motor) Hydrostatic motors Wheel drive shaft Hydrostat drive belt Drive chain Drive wheel Floor Saw FSD930 Page 5...
- Page 6 ► When transporting by crane do not stand underneath suspended load. ► Always have the floor saw in your line of vision while it is being transported. 3.1 Hitching points Hitching points Crane hitching device Page 6 Floor Saw FSD930...
- Page 7 TYROLIT Hydrostress AG 4 Initial start-up 4.1 Fitting battery ► Fit battery (for type see Technical Data). Floor Saw FSD930 Page 7...
- Page 8 TYROLIT Hydrostress AG 5 Assembly / Set-up 5.1 Mounting grip ► 5.2 Mounting saw blade 1. Apply hand brake Page 8 Floor Saw FSD930...
- Page 9 When assembling the saw blade on the left-hand side, use the anchoring screw with the right-hand thread. ► Note the direction or rotation arrows on the saw blade. Anchoring screw *Note the direction of rotation Floor Saw FSD930 Page 9...
- Page 10 TYROLIT Hydrostress AG To prevent the saw blade rotating while being tightened, carefully place the saw blade on the floor. 5.3 Mounting saw blade on the other side 5.3.1 Disassemble the blade guard ► Page 10 Floor Saw FSD930...
- Page 11 ► 5.3.3 Assembling the blade guard and shaft cover on the other side Assembly of the blade guard and the shaft cover is performed in the opposite order to disassembly. 5.4 Connecting water line ► Floor Saw FSD930 Page 11...
- Page 12 Oil pressure display 10 On / Off control for headlight 14 Feed gears coupling lever Speed governor 11 Raise / Lower buttons 15 Tank cover with tank display Operating hours meter 16 Hand brake Cutting depth indicator Page 12 Floor Saw FSD930...
- Page 13 6.3 Checking the air filter The display in the window (1) has the following significance: Display colour Significance Yellow Air filter in good order Air filter blocked ► If the air filter is blocked, it must be changed. Floor Saw FSD930 Page 13...
- Page 14 ► Check the tank display (1) and top up with diesel as necessary. 6.5 Positioning the floor saw 1. Release the hand brake. 2. Slide floor saw into the working position. 3. Fit the cutting guides to the floor saw. 6.6 Connecting the water supply ► Page 14 Floor Saw FSD930...
- Page 15 1. Turn ignition key (2) to the preheat position in order to preheat the motor. 2. Turn ignition key further to the right in order to start. Battery and oil pressure displays (1, 3) light during starting and then go out. 3. Set motor speed with speed governor (4). Floor Saw FSD930 Page 15...
- Page 16 1. Press the Lower button (3) until the saw blade touches the material to be cut. 2. Set the cutting depth indicator (1) in the 0 position. 3. Using the Lower key, lower the saw blade to the desired cutting depth. 4. Tighten up the bit stop locking (2). Page 16 Floor Saw FSD930...
- Page 17 Feed adjuster in the backwards direction of travel Feed adjuster is in the neutral position Hand brake has been released 1. Place coupling lever (1) in the coupled position. 2. Using the feed adjuster (2), set the direction of travel and speed. Floor Saw FSD930 Page 17...
- Page 18 TYROLIT Hydrostress AG 6.10 Correcting the tracking Correcting the tracking Saw blade ► If the saw blade drifts, adjust the rear axle with the adjusting screw. Page 18 Floor Saw FSD930...
- Page 19 Feed adjuster control rods: 4 items Blade drive shaft: 2 items Wheel drive shaft bearing: 2 items 7.2 Tensioning belt on travel drive ► Remove the appropriate number of belt links until the belt is tensioned. Floor Saw FSD930 Page 19...
- Page 20 TYROLIT Hydrostress AG 7.3 Tensioning chain on travel drive ► Tensioning chain Chain Page 20 Floor Saw FSD930...
- Page 21 Feed not working Operation of the control rods impaired necessary. ► Check hydrostat and if necessary have Defective hydrostat this repaired by a TYROLIT Hydrostress engineer. ► Have the chain replaced by a TYROLIT Defective chain Hydrostress engineer. ► Check belt for wear and if necessary...
- Page 22 9.3 Lift drive Parameter Value Drive type Electro-hydraulic Oil grade ATF Dexron II D 9.4 Travel drive Parameter Value Drive type Hydraulic Oil grade ATF Dexron II D Cooling Air cooling by means of cooling ribs Page 22 Floor Saw FSD930...
- Page 23 900 mm. Higher noise levels may be generated in cutting operation. 9.6 Battery Parameter Value Description Battery 12-Volt, Group Size 34 DP battery part number 2700208 Length 260 mm Width 173 mm Height 200 mm Capacity 630 Amps Manufacturer's reference P7405 Floor Saw FSD930 Page 23...
- Page 24 3.65" 2800 4½" 1900 4.12" 3.12" 2500 4½" 1650 4.75" 3.12" 2500 6" 1400 4.75" 3.12" 2150 6" The belt pulley should only be changed by an engineer from TYROLIT Hydrostress or a trained worker. Page 24 Floor Saw FSD930...
- Page 25 Safety of machinery – Safety distances to avoid crushing of body parts. EN 982 Safety of machinery Safety requirements for safety systems and their components – hydraulics. EN ISO 3744 Acoustics - Determination of sound power levels of noise sources using sound pressure Floor Saw FSD930 Page 25...
