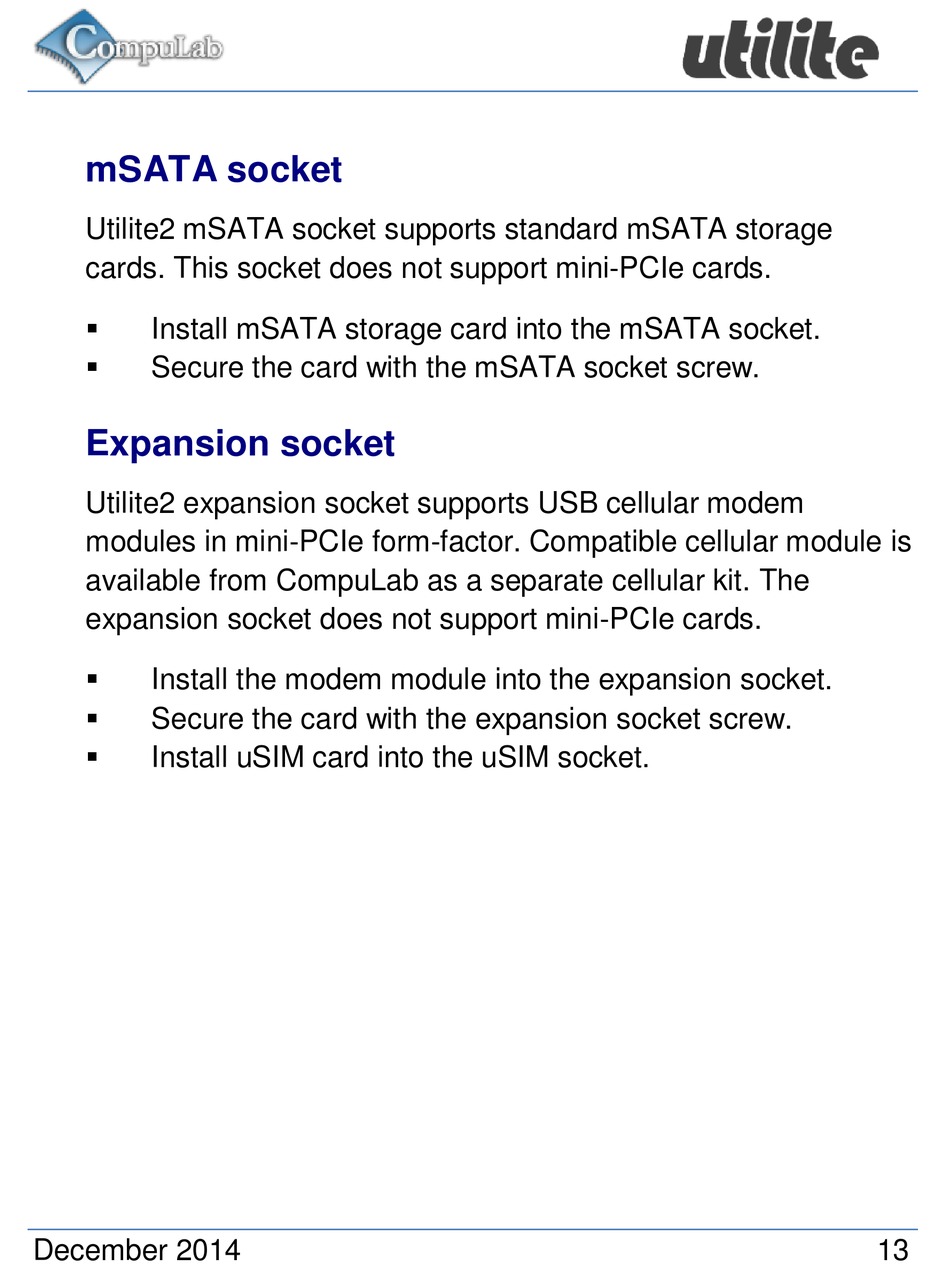

mSATA socket

Utilite2 mSATA socket supports standard mSATA storage
cards. This socket does not support mini-PCIe cards.

Install mSATA storage card into the mSATA socket.

Secure the card with the mSATA socket screw.

Expansion socket

Utilite2 expansion socket supports USB cellular modem
modules in mini-PCIe form-factor. Compatible cellular module is
available from CompuLab as a separate cellular kit. The
expansion socket does not support mini-PCIe cards.

Install the modem module into the expansion socket.

Secure the card with the expansion socket screw.

Install uSIM card into the uSIM socket.
