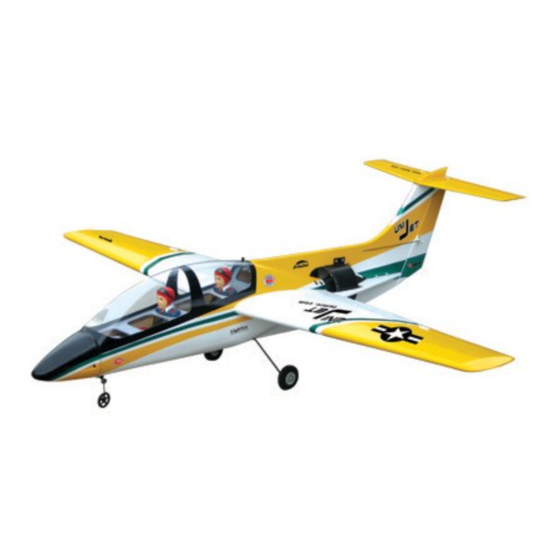

Requires : 4-channel radio w/ 4 micro servos,
Ducted Fan Propulsion Unit PL6800010
and Outrunner Motor KM0283110,
30A (burst 35A) brushless ESC,
3 cells 11.1V 15C discharge 2100 mAh
Li - Po battery & charger.
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
THE WORLD MODELS
MANUFACTURING CO., LTD.
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
www.theworldmodels.com
Specifications
*Specifications are subject to change without notice.*
36 in / 920 mm
225 sq in / 14.5 sq dm
28 oz / 790 g
32.5 in / 830 mm
INSTRUCTION MANUAL
Advertisement
Table of Contents
Related Manuals for The World Models Manufacturing UniJet
Summary of Contents for The World Models Manufacturing UniJet
- Page 1 INSTRUCTION MANUAL Requires : 4-channel radio w/ 4 micro servos, Ducted Fan Propulsion Unit PL6800010 and Outrunner Motor KM0283110, 30A (burst 35A) brushless ESC, 3 cells 11.1V 15C discharge 2100 mAh Li - Po battery & charger. Specifications Wing Span 36 in / 920 mm Wing Area 225 sq in / 14.5 sq dm...
-
Page 2: Before You Begin
I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P.3-P.10 SAFETY PRECAUTIONS P.10 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 10. PUSHROD Ø0.8x206mm (For Front Landing Gear) -- 1 pc. PLASTIC TUBE d2xD3x140mm -- 1 pc. 2. SERVO MOUNTING PANEL -- 1 pair CLEVIS (d1.2mm) -- 2 pcs PUSHROD Ø1.4x42mm w/ Threads (For Aileron Servo) -- 2 pcs FUEL TUBE d2XD4x4mm -- 2 pcs STRAPER -- 2 pcs PLYWOOD 2x9.4x15mm -- 1 pc. -
Page 4: Aileron Servo
Main Wing Apply instant type CA glue to both sides of each hinge. Aileron Servo Lead Bottom View Aileron Servo PA1.7x8mm Fuel Tube Straper d2xD4x4mm PB2x16mm Screw PA1.7x8mm Screw Ø1mm pilot holes for World Models tri-horn are pre-drilled. Please look for pin-hole marksat under side of control surfaces. - Page 5 Ducted Fan Propulsion Unit with 28/31 Motor PM3x12mm Screw d3xD7mm Washer PM2x5mm M3 Nut PWA2.3x8mm Screw Optional Parts PL6800010 M3x6mm Rear View Outrunner Motor 28/ 31 KM0283110 Make sure rotating motor casing is Motor Lead Exit not in contact with wiring or anything. PM3x12mm M3 Nut d3xD7mm...
-
Page 6: Stabilizer & Elevator
Rudder Apply instant type CA glue to both sides of each hinge. Completed Stabilizer & Elevator Temporary install the main (Stabi l i zer) wing, adjust leveling of the stabilizer to make it as (Mai n Wi ng) parallel to the main wing as Apply instant type CA glue to both sides of B=B' Bottom View... -
Page 7: Front Landing Gear
Front Landing Gear Ø1mm pilot hole is pre-drilled. Please look for pin-hole marks at under side of fuselage. PA2x8mm Screw Plastic Collar d1.1xD5mm PA2x8mm 1.3mm 1.5mm Bottom View Bottom View Rudder Pushrod Ø1mm pilot holes for World Models horn are pre-drilled. Please look for pin-hole marks at under side of control surfaces. -
Page 8: Radio Equipment
Install and arrange the equipment as Radio Equipment shown in the diagrams. Fuel Tube d2xD4x4mm Clevis Elevator Servo Rudder Pushrod Elevator Pushrod Ø1.2x440mm Ø1.2x533mm Rudder Servo Clevis Fuel Tube d2xD4x4mm Front Landing Gear Front Landing Gear Pushrod Front Landing Gear Front Plastic Tube Plywood... - Page 9 Main Wing 1.5mm Eye Screw PA2.5x10x23mm Bottom View Lead To Aileron Servo Ø Wing Tube 9.6x284mm Front Rubber Band Front Front...
- Page 10 Canopy w/ Cockpit Assembly Pilots Completed Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. A=A' B=B' C=C'...
-
Page 11: Control Throws
Too low an air speed during take off or landing may cause tip stall. Point the UniJet towards the wind, use full throttle and let the UniJet gain enough ground speed before pulling the elevator gently for take off. For landing, approach against the wind, maintain power to the ducted fan to keep enough air speed before touch down. - Page 12 Product Registration Form (US Customers) We would like to share with you any relevant information regarding your model, including product news and free upgrade parts when applicable. Please fill in the following and send to AirBorne Models, 2403 Research Drive, Livermore, CA 94550 USA. 1.
-
Page 13: Optional Parts
Optional Parts ACCESSORIES) Ducted Fan Propulsion Unit without Motor Clevis Wrench Code No. Size Package Code No. Size Package PL8210010 PL6800010 1 set 1 set Small Clevis Large Clevis Special tool for clevis installation. -Operating Voltage / Current : Suitable for standard and small 12V / 30A (35A Burst) (EP) clevis. - Page 14 http://www.theworldmodels.com E272XMPO19830903...
