- Page 1 OmniAccess 4302 WLAN Switch Installation Guide...
-
Page 2: Legal Notice
Trademarks AOS-W, Alcatel 4308, Alcatel 4324, Alcatel 6000, Alcatel 41, Alcatel 60/61/65, Alcatel 70, and Alcatel 80 are trademarks of Alcatel Internetworking, Inc. in the United States and certain other countries. Any other trademarks appearing in this manual are the property of their respective companies. -
Page 3: Table Of Contents
..........Operational OmniAccess 4302 WLAN Switch Installation Guide... - Page 4 Notes ........... . OmniAccess 4302 WLAN Switch...
- Page 5 Figure 1-2 Alcatel OmniAccess 4302 WLAN Switch Rear ..1 Figure 1-3 Alcatel OmniAccess 4302 WLAN Switch ... . 3 Figure 2-1 Power Adapter ....... . 9 Figure A-1 Serial Port .
- Page 6 Figures OmniAccess 4302 WLAN Switch 031986-00 Installation Guide February 2006...
- Page 7 Table A-1 Console Terminal Settings..... . . 12 Table B-1 OmniAccess 4302 WLAN Switch Physical Specifications ....... . . 13 Table B-2 OmniAccess 4302 WLAN Switch Environmental Specifications.
- Page 8 Tables viii OmniAccess 4302 WLAN Switch 031986-00 Installation Guide February 2006...
-
Page 9: Preface
Appendix B, “Specifications”—Describes the system’s size, weight, storage and operating environment, and certifications for electromagnetic compliance and safety. Related Documents The following items are part of the complete documentation for the Alcatel OmniAccess system: Alcatel OmniAccess 4302 WLAN Switch Installation Guide (this manual) AOS-W User Guide... -
Page 10: Contacting Alcatel
Preface Contacting Alcatel To contact Alcatel, refer to the information below: Address 26801 West Agoura Road Calabasas, CA 91301 Phone VOICE (818) 880-3500 (818) 880-3505 Email info@ind.alcatel.com Website http://www.alcatel.com/enterprise/en/index.html Support Phone: US Toll Free: (800) 995-2696 International: (818) 878-4507 Email: support@ind.alcatel.com... -
Page 11: Overview

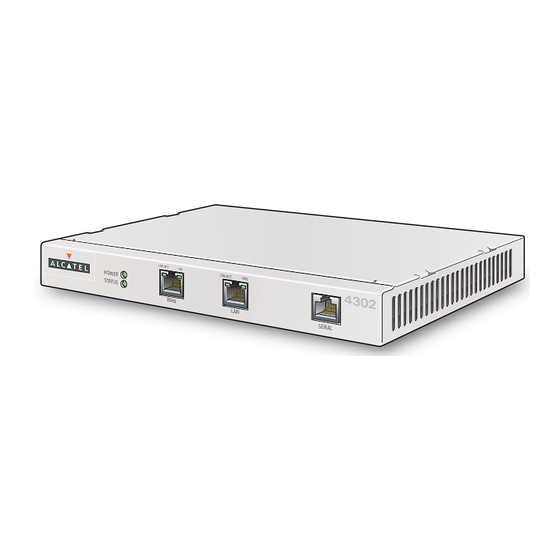

Overview The Alcatel OmniAccess 4302 WLAN Switch is a wireless LAN (WLAN) switch that connects, controls, and integrates Alcatel Access Points (APs) and Air Monitors (AMs) into the wired LAN in branch offices, retail stores, and small businesses. LN K/A CT... - Page 12 Desktop chassis can be placed on a flat, stable surface. Optional 19-inch rack mount kit (Alcatel part number OAW-4302-RM-19) available. Firmware can be easily upgraded as future software releases are made available.
-
Page 13: System Overview
Overview Chapter 1 System Overview Figure 1-3 shows front and rear views of the Alcatel OmniAccess 4302 WLAN Switch. Front View LNK/ACT LNK/ACT 1000 4302 POWER STATUS SERIAL Status indicators Serial port WAN port LAN port Rear View 12VDC 1A... -
Page 14: System Indicator Leds
Start Guide (included in the Accessory Kit). Fast Ethernet WAN Port The Alcatel OmniAccess 4302 WLAN Switch provides one 10/100 Mbps Fast Ethernet (FE) port to connect to a WAN link. The FE port automatically senses and negotiates speed, duplex, and MDI/MDX settings. -
Page 15: Gigabit Ethernet Lan Port
Use this port to connect a local management console. This connection is required to access the text-based Command-Line Interface (CLI) for initial configuration of the Alcatel OmniAccess 4302 WLAN Switch. The CLI can also be used for WLAN Switch management and troubleshooting. -
Page 16: Power Input Socket (On Rear)
Rubber Mounting Feet Four rubber mounting feet stabilize and prevent slippage for placing the Alcatel OmniAccess 4302 WLAN Switch on a flat surface. (The mounting feet are included but must be attached by the user.) OmniAccess 4302 WLAN Switch... -
Page 17: Installing The Chassis
Four rubber feet (included but not installed) Alcatel power adapter and country-appropriate power cord RS-232 serial cable with RJ-45 male connectors Alcatel serial adapter (included) to connect the serial cable to a terminal or PC with a DB-9 serial port Setup Map document... -
Page 18: Precautions
This section describes requirements for the installation of the Alcatel OmniAccess 4302 WLAN Switch. Location The Alcatel OmniAccess 4302 WLAN Switch, like other computing devices and office equipment, requires an “electronics friendly” environment. Because it can be mounted on any flat, stable surface, select a location where the power and network connections will not interfere with traffic and office activities. -
Page 19: Limit Electromagnetic Interference
Alcatel OmniAccess 4302 WLAN Switch within operation temperature limits. At a minimum, make sure the upper unit has its rubber feet attached. -
Page 20: Verifying The Installation
Use of a power line conditioner or Uninterruptible Power Supply (UPS) can decrease or mitigate problems caused by power service fluctuations. Make sure that the output of any power shaping device is compatible with the Alcatel OmniAccess 4302 WLAN Switch power supply. -
Page 21: Connector Pinouts
OmniAccess 4302 WLAN Switch. Serial Console Port The serial console port is located on the front panel of the Alcatel OmniAccess 4302 WLAN Switch. This port is for connecting a local management console and can be used to access the text-based Command-Line Interface (CLI) to configure, manage, and troubleshoot the Alcatel OmniAccess 4302 WLAN Switch. -
Page 22: Communications Settings
RJ-45 DB-9 Ground Direction Direction Input Input Output Output Serial Port Adapter IGURE Communications Settings Console Terminal Settings ABLE Baud Rate Data Bits Parity Stop Bits Flow Control 9600 None None OmniAccess 4302 WLAN Switch 031986-00 Installation Guide February 2006... -
Page 23: Appendix B Specifications
Specifications Physical OmniAccess 4302 WLAN Switch Physical Specifications ABLE Item Specification Physical Dimensions: Size Height 2.79 cm (1.10 inches) Width 23.62 cm (9.30 inches) Depth 16.84 cm (6.63 inches) Weight .91 KG (2 lbs.) Shipping Dimensions: Size Height 7.62 cm (3.0 inches) Width 31.75 cm (12.5 inches) -
Page 24: Operational
Storage: -20 to 60 ºC (-4 to 140 ºF) Humidity 20% to 85% (non-condensing) Altitude Up to 3,048 m (10,000 feet) Operational OmniAccess 4302 WLAN Switch Operational Specifications ABLE Item Specification Power DC input voltage 12VDC DC input current 1A... -
Page 25: Regulatory Compliance - Wlan Switch
Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This product is UL Listed (UL60950) OmniAccess 4302 WLAN Switch Installation Guide... -
Page 26: Canada
Approvals and/or Certifications The CE marking applied to this product indicates that Alcatel is in conformance with the applicable Directives of the European Union pertaining to this product Directive 73/23/EEC, Low voltage equipment Directive 89/336/EEC (92/31/EEC), Electromagnetic compatibility. -
Page 27: Japan
Australia/New Zealand This product complies with AS/NZS CISPR 22 Class B standards. Rest of World This product complies with CISPR 22 Class B standards. OmniAccess 4302 WLAN Switch Installation Guide... -
Page 28: Regulatory Compliance - Power Adapter
Specifications Appendix B Regulatory Compliance - Power Adapter Use only the approved AC adapter with the Alcatel OmniAccess 4302 WLAN Switch. This power adapter is approved for the following: US, Canada (cULus, FCC marks) Europe (CE mark) Germany (GS mark) -
Page 29: Hazardous Substances And Proper Disposal
Specifically, restricted materials under the RoHS Directive are Lead (including Solder used in PCB's), Cadmium, Mercury, Hexavalent Chromium, and Bromine. Alcatel declares compliance with the European Union (EU) WEEE Directive (2002/96/EC). For more information on WEEE, refer to: http://www.dti.gov.uk/sustainability/weee/... - Page 30 Specifications Appendix B OmniAccess 4302 WLAN Switch 031986-00 Installation Guide February 2006...
-
Page 31: Notes
Notes OmniAccess 4302 WLAN Switch Installation Guide... - Page 32 Notes OmniAccess 4302 WLAN Switch 031986-00 Installation Guide February 2006...
